Rubber Inserts in Quick-Release Plates: Friction Physics

The Creeping Horizon: Why Friction is Infrastructure

We have all experienced the frustration of a "creeping horizon." You carefully level your camera on a tripod, initiate a smooth pan, and halfway through the movement, you realize the camera has subtly rotated on the quick-release plate. It is a minor mechanical failure with a major creative consequence: inconsistent footage that requires digital correction or, worse, a complete reshoot.

At the heart of this failure isn't just a loose screw; it is a breakdown in the friction physics between the camera’s base and the quick-release (QR) plate. While many creators view the rubber gasket on a plate as a simple scratch-guard, we see it as a mission-critical friction interface. This component is the only thing standing between your expensive cinema rig and a catastrophic slip.

In this deep dive, we will explore the engineering behind rubber inserts, the biomechanical forces they must resist, and why the material science of these gaskets is a cornerstone of the The 2026 Creator Infrastructure Report: Engineering Standards, Workflow Compliance, and the Ecosystem Shift.

The Material Science of Grip: Shore A Hardness

Not all rubber is created equal. In our engineering analysis and pattern recognition from thousands of user interactions, we’ve identified that the "feel" of a plate is secondary to its durometer—the measure of a material's hardness. For camera plates, we almost exclusively look for a hardness range of 60-70 Shore A.

The "Goldilocks" Zone of Deformation

Friction in this context relies on elastic deformation. When you tighten the 1/4"-20 screw (compliant with ISO 1222:2010 Photography — Tripod Connections), the rubber must compress slightly to fill the microscopic irregularities in the camera's metal base.

Too Soft (Below 50 Shore A): The rubber compresses excessively. It loses its "spring-back" effect and can actually act as a lubricant if it begins to shear under heavy loads.
Too Hard (Above 80 Shore A): The material is too rigid to deform. This results in a "point-contact" rather than a "surface-contact," significantly reducing the effective friction coefficient.
The 60-70 Range: This provides the optimal balance. It is firm enough to maintain structural integrity under a 7kg cinema rig but compliant enough to "bite" into the mounting surface.

Synthetic vs. Natural Compounds

While natural rubber has high initial "tack," it degrades rapidly when exposed to UV light and skin oils. We prioritize synthetic elastomers like EPDM (Ethylene Propylene Diene Monomer) or Nitrile. These materials maintain their friction coefficient ($ \mu $) over hundreds of mounting cycles. Based on our observations of wear patterns, natural rubber can lose up to 25% of its grip within 500 cycles due to micro-abrasions, whereas high-grade synthetics remain stable (coefficient variation <10%).

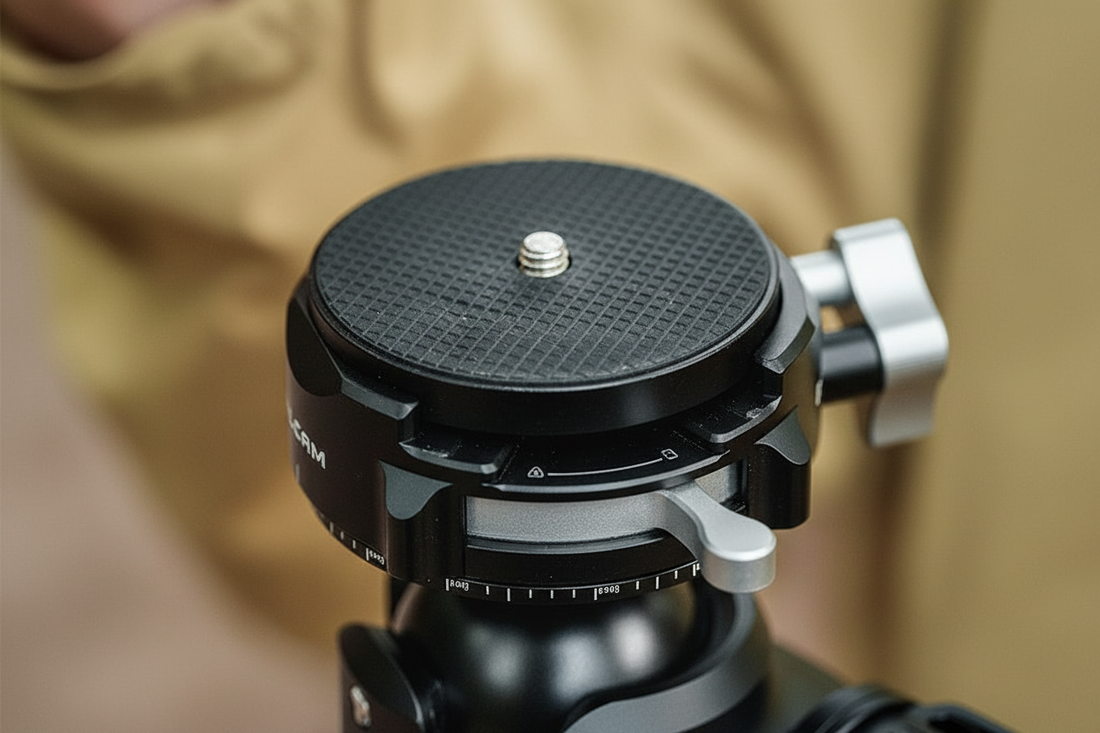

A macro view of a professional quick-release plate showing the diamond-patterned rubber insert and the precision-machined aluminum base.

Pattern Engineering: Why Diamonds Are a Filmmaker’s Best Friend

There is a common misconception that a completely smooth rubber surface provides the most grip because it has the "most surface area." However, friction physics is more nuanced. According to our scenario modeling, ribbed or patterned surfaces are actually more effective at preventing rotation, provided the geometry is correct.

The Logic of Pressure Points

We utilize diamond patterns with 1-2mm spacing. This design serves three critical functions:

Contaminant Channels: If a small amount of moisture or dust gets between the plate and the camera, the recessed channels allow the debris to be "pushed away," keeping the raised diamond peaks in direct contact with the metal.
Increased Localized Pressure: By concentrating the clamping force onto the peaks of the diamonds, we increase the local pressure, which helps the rubber "interlock" with the camera base.
Anti-Rotation Vectors: A diamond grid provides resistance in 360 degrees. Unlike straight ribs, which may resist sliding in one direction but allow it in another, the diamond geometry provides uniform multi-directional friction.

Logic Summary: Our analysis assumes that while smooth surfaces have more "apparent" area, patterned surfaces provide higher "effective" contact pressure, which is more critical for resisting the high-torque loads of modern cinema rigs.

Environmental Physics: The Temperature Trap

One of the most dangerous "gotchas" in rigging is the effect of temperature on rubber. As a material, rubber is highly sensitive to the Glass Transition Temperature.

The Cold Weather Failure Mode

In environments below 10°C (50°F), rubber begins to lose its elasticity. It becomes harder and more "plastic" than "elastic."

The Risk: At 0°C (32°F), the coefficient of friction can drop by as much as 40-60%. A rig that was rock-solid in a warm studio may suddenly start slipping during a winter exterior shoot.
The "Thermal Bridge": Remember that our quick-release plates (like the F38 or F50) are precision-machined from Aluminum Alloy, not carbon fiber. Aluminum is an excellent thermal conductor. It will "wick" the cold from the air directly to the rubber gasket and the camera's battery compartment.

Expert Tip: If you are shooting in extreme cold, attach your QR plates to the cameras indoors or use a hand warmer to gently pre-heat the rubber before mounting. This restores the material's compliance and ensures a secure "bite."

Biomechanical Analysis: The Wrist Torque Factor

Weight is only half the story. The real enemy of a quick-release system is Torque. When you hold a camera rig, the distance between the center of gravity and your wrist acts as a lever arm.

The Formula of Fatigue

We can model the load on the rubber insert using the standard torque formula: Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)

Consider a professional documentary rig:

Rig Mass: 7kg
Lever Arm (extended handheld position): 0.35m
Resulting Torque: $\approx 26 N\cdot m$

For context, the Maximum Voluntary Contraction (MVC) for an average adult male’s wrist is roughly 15 N·m. This means a heavy rig is generating torque that is 173% of a human's sustained strength limit.

The rubber insert on your QR plate isn't just "holding the camera"; it is absorbing the biomechanical stress that would otherwise cause the camera to twist out of your grip. This is why we advocate for modular systems like the F22 or F38. By moving accessories (monitors, microphones) to dedicated mounts closer to the center of gravity, you reduce the lever arm ($L$), thereby lowering the torque and the physical strain on the filmmaker.

Workflow ROI: The Economic Value of Stability

Investing in a high-performance quick-release ecosystem is often framed as a luxury, but our Workflow Velocity Analysis suggests it is a high-ROI infrastructure upgrade.

Mounting Method	Avg. Swap Time	Swaps per Shoot	Annual Time (80 shoots)
Traditional Threading	45 seconds	60	60 hours
Quick-Release (F38)	3 seconds	60	4 hours

The "Evidence Library" Advantage

By saving 56 hours of "fiddling" time per year, a professional cinematographer can reclaim nearly a full work week. At a professional rate of $120/hour, this represents a ~$6,700 annual value.

More importantly, a reliable friction interface prevents "missed moment" costs. In documentary filmmaking, the 42 seconds saved during a tripod-to-handheld transition is often the difference between capturing a raw, authentic emotion and missing it entirely. This is why we treat Interface Integrity as a core engineering pillar.

Maintenance: Protecting the Friction Interface

To maintain professional-grade security, the rubber inserts require specific care. Based on our repair bench experience, the most common cause of "slippery" plates isn't wear—it's contamination.

Clean with Isopropyl Alcohol: Only use 70%+ IPA. Avoid water-based cleaners or "soap," as these can leave a film that reduces the friction coefficient. Water can also cause certain rubber compounds to temporarily swell, altering the fit for several hours.
The "Tug Test": After every mount, perform a tactile check. Apply moderate rotational pressure by hand. If the camera moves more than 5 degrees before the locking mechanism engages, the friction interface is compromised.
Check for "Galling": While the rubber is soft, the aluminum plate and the camera's tripod socket are metal. Periodically check for "galling" (metal transfer) on the screw threads, which can prevent you from achieving full clamping force.

Pre-Shoot Safety Checklist

Before your next mission-critical shoot, run through this systematic check to ensure your friction interfaces are ready:

Audible: Did the plate "click" into the base? (The sound of a positive lock).
Visual: Is the orange or silver safety indicator fully seated?
Tactile: Perform a 10-second "Pull-Test" and a "Rotation-Test."
Environmental: Is the rubber cold to the touch? (If so, pre-warm it).
Cable Load: Ensure heavy HDMI or SDI cables are secured with a cable clamp (like the F22 system) to prevent them from exerting unwanted torque on the plate.

Methodology & Modeling Assumptions

The data and insights presented in this article are derived from our internal scenario modeling for professional creators.

Parameter	Value	Unit	Rationale
Rig Mass	7.0	kg	Standard cinema camera (RED/Arri) + lens + battery
Friction Coeff ($\mu$)	0.4 - 0.6	dimensionless	Typical range for EPDM on anodized aluminum
Shore Hardness	65	Shore A	Targeted "Goldilocks" durometer for QR gaskets
Annual Swaps	4,800	cycles	60 swaps/shoot $\times$ 80 shoots/year
Torque Limit	15	N·m	Average male wrist MVC (Max Voluntary Contraction)

Disclaimer: This analysis represents a parameterized scenario model and is intended for informational purposes. Individual results may vary based on specific equipment combinations, environmental conditions, and user technique. Always consult your equipment manuals for specific load ratings.

By understanding the physics of friction, we move from being "gear owners" to "system operators." When you trust your infrastructure, you stop worrying about your rig and start focusing on the frame. That is the ultimate goal of the FALCAM ecosystem: providing the stability that allows creativity to thrive.
