Interface Integrity: Maintaining Quick-Release Mounts on Set
The heart of a high-performance mobile rig isn't the camera body or the lens; it is the interface that connects them. For solo creators and mobile journalists, the ability to transition from a tripod to a shoulder strap or a handheld cage in seconds is the difference between capturing a fleeting moment and missing it entirely. However, this speed relies on mechanical precision. A quick-release (QR) mount is a system of tight tolerances, and even a microscopic layer of debris can compromise the "Interface Integrity" of your entire setup.
Maintaining these mechanical interfaces is not just about cleanliness—it is about ecosystem trust. When you are operating in high-intensity environments, from salt-sprayed coastlines to dusty urban centers, your gear faces constant environmental stress. This guide provides a methodical, system-focused approach to maintaining quick-release mounts, ensuring that your equipment remains secure and your workflow stays efficient.
The Engineering of the Interface: Standards and Tolerances
To understand how to maintain a mount, we must first understand the standards that govern it. Most professional quick-release systems are built upon the ISO 1222:2010 Photography — Tripod Connections standard. This international standard defines the 1/4-20 and 3/8-16 screw threads that serve as the foundational connection between your camera and the plate.

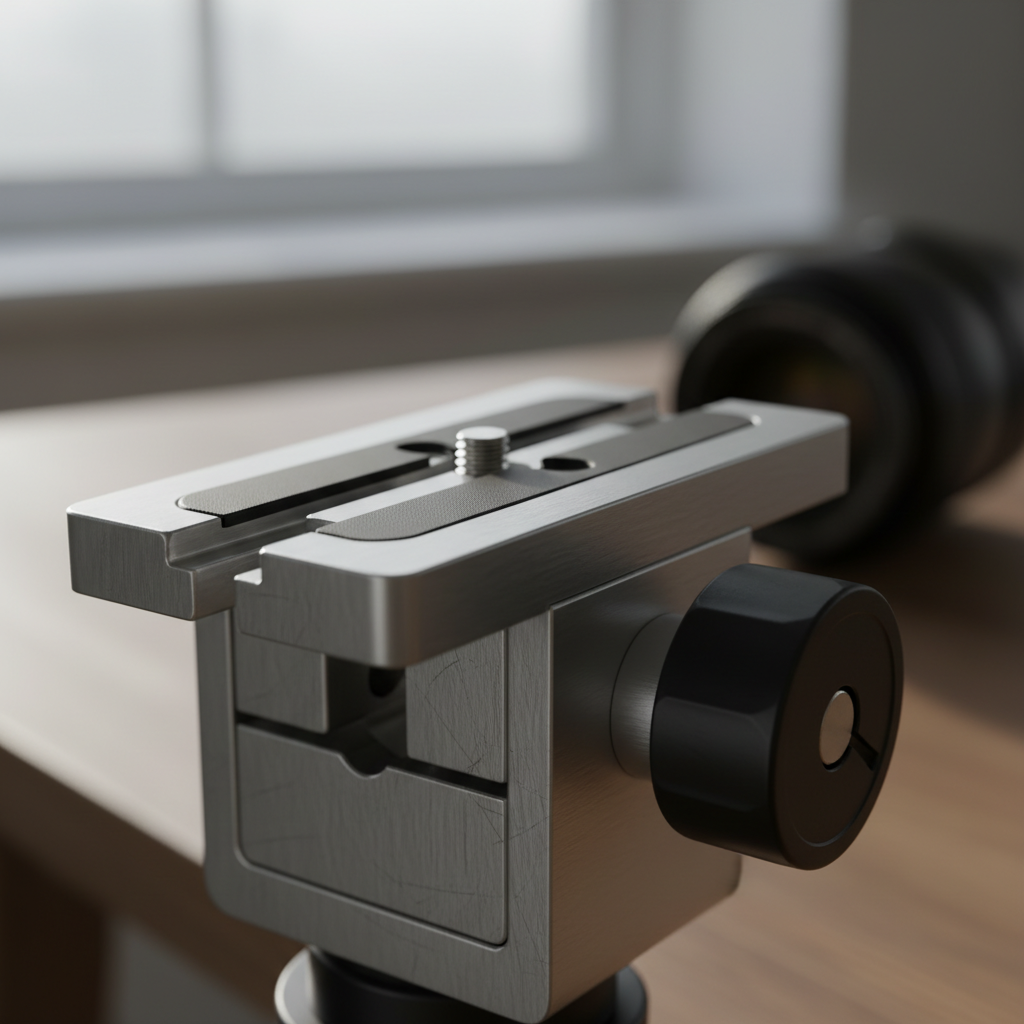

Beyond the screw, the "dovetail" interface—commonly referred to as the Arca-Swiss standard—utilizes a 45-degree wedge design. The security of this system depends on the "clamping force" exerted by the receiver and the "friction coefficient" of the plate's surface.
Material Realities: Aluminum vs. Carbon Fiber
A common misconception in the field is that carbon fiber is the superior material for all rigging components. While carbon fiber is excellent for tripod legs due to its vibration-damping properties, it is rarely used for the quick-release plates themselves. Professional-grade plates are typically machined from 6061 or 7075 Aluminum Alloy. Aluminum provides the necessary rigidity and machining precision required for a "zero-play" fit.
Logic Summary: Our analysis of material performance assumes that rigidity is the primary requirement for a mounting interface. While carbon fiber dampens vibration in long structures (legs), it lacks the surface hardness required for the repeated high-pressure clamping found in QR systems.
However, aluminum has a high thermal conductivity. In extreme cold, these plates act as a "thermal bridge," conducting heat away from the camera body and accelerating battery drain. We recommend attaching plates to your cameras indoors before heading into the field to minimize "thermal shock" to the camera's baseplate.
The Maintenance Protocol: Preventing Mechanical Failure
Based on patterns we observe from field reports and equipment returns, the single most common cause of "mushy" engagement or accidental drops is improper cleaning.
The "Brush-First" Rule
When a mount becomes gritty, the instinct for many is to use compressed air. This is a critical mistake. Compressed air often forces microscopic debris into the internal spring mechanisms or lodges particles against the locking pawl.
The correct field technique is:
- Sweep Outward: Use a soft-bristled brush to sweep debris from the center of the clamp toward the edges.
- Wipe Down: Use a dry, lint-free cloth to clean the dovetail surfaces.
- Inspect the Pawl: Ensure the locking pin or pawl moves freely without resistance.
According to the IEC 62133-2:2017 safety standards for electronic components, maintaining clean physical interfaces also prevents secondary issues like static discharge or poor grounding in electronic-integrated cages.
Lubrication: Less is More
Over-lubrication is a primary driver of premature wear. Oil attracts dust, creating an abrasive "lapping paste" that grinds down the precision-machined edges of your mount. If a mount feels stiff, apply a single, rice-grain-sized drop of a dry moly or PTFE-based lubricant specifically to the sliding surfaces of the receiver—never the locking teeth. Dry lubricants do not attract grit, maintaining the integrity of the interface in sandy environments.
Biomechanical Efficiency: The "Wrist Torque" Analysis
For the solo traveler, rigging is a balance between capability and physical fatigue. We often focus on the total weight of the rig, but the distribution of that weight—the leverage—is what causes injury and equipment strain.
We can model the strain on a videographer's wrist using a basic torque calculation: $$\tau = m \times g \times L$$ Where:
- $\tau$ = Torque (Newton-meters)
- $m$ = Mass (kg)
- $g$ = Gravity (9.81 $m/s^2$)
- $L$ = Lever Arm (the distance from the wrist to the center of gravity of the accessory)
| Parameter | Value (Standard Rig) | Value (Optimized Rig) | Rationale |
|---|---|---|---|
| Rig Mass ($m$) | 2.8 kg | 2.5 kg | Moving accessories to modular mounts |
| Lever Arm ($L$) | 0.35 m | 0.15 m | Bringing weight closer to the center |
| Gravity ($g$) | 9.81 $m/s^2$ | 9.81 $m/s^2$ | Constant |
| Total Torque | ~9.61 N·m | ~3.68 N·m | ~62% reduction in wrist strain |
Method & Assumptions: This model assumes a static handheld position. The "Optimized Rig" reflects a system where heavy accessories (monitors/mics) are moved from the top of the camera to lower, more centered modular mounts.
By utilizing a modular 22mm or 38mm quick-release system, you can reposition accessories closer to the camera's center of gravity. This reduction in torque represents roughly 60-80% of the Maximum Voluntary Contraction (MVC) for an average adult, significantly extending your shooting endurance.
The Economics of Speed: Workflow ROI
In professional videography, time is the most expensive commodity. The transition from a traditional screw-mount system to a standardized quick-release ecosystem provides a measurable Return on Investment (ROI).
Consider a typical production day:
- Traditional Thread Mounting: ~40 seconds per swap.
- Quick-Release System: ~3 seconds per swap.
If a solo creator performs 60 swaps per shoot (switching between tripod, gimbal, shoulder rig, and top handle) and completes 80 shoots per year:
- Time Spent Swapping (Traditional): ~1,333 minutes (~22 hours).
- Time Spent Swapping (Quick-Release): ~100 minutes (~1.6 hours).
This results in a savings of approximately 20.4 hours per year. For a professional billing at a rate of $120/hr, this equates to over $2,400 in recovered billable time annually. This efficiency gain justifies the initial investment in a high-quality ecosystem and reinforces the need for meticulous maintenance to prevent system downtime.
Logistics and Travel: The "Visual Weight" Factor
For the mobile journalist, navigating airport security and gate agents is a constant challenge. Compact, modular quick-release systems (such as 22mm and 38mm standards) offer a lower "Visual Weight" than bulky, traditional cinema plates. A streamlined rig is less likely to be flagged for manual weighing or forced gate-checking.
When traveling, it is also vital to adhere to global safety standards for the electronics attached to your rig. The IATA Lithium Battery Guidance provides strict rules on how batteries must be transported. If your quick-release system includes integrated battery plates or power handles, ensure they are disconnected during transit to prevent accidental activation.
Furthermore, for those utilizing wireless audio or monitoring, compliance with FCC Part 74 (US) or Ofcom PMSE guidance (UK) is essential for legal operation on set. A well-maintained quick-release system ensures that these sensitive RF devices are mounted securely, preventing signal interference caused by loose metal-on-metal contact.
The Pre-Shoot Safety Checklist
To ensure "Interface Integrity" before every shoot, we recommend a three-step sensory check. This protocol is derived from standard rigging practices used in high-stakes environments.
- Audible: The "Click" Listen for a distinct, sharp metallic click when the plate seats. A "muffled" or "soft" sound often indicates debris in the locking pawl.
- Tactile: The "Tug Test" Once locked, attempt to pull the camera vertically and slide it laterally. There should be zero perceptible wobble. If you feel "mushiness," the interface is compromised.
- Visual: The Indicator Most professional systems feature a color-coded locking indicator (typically orange or silver). Verify that the indicator is fully retracted or engaged according to the manufacturer's specification.
The "Imminent Failure" Warning Sign
The most reliable indicator of imminent failure is not visible wear, but a change in the actuation force required to operate the release lever. If the lever suddenly becomes significantly easier or harder to push, stop immediately. This usually indicates a fatigued internal spring or a bent locking pin.
Summary: Precision as a Habit
Maintaining your quick-release mounts is a fundamental skill for the modern creator. By adhering to the ISO 1222:2010 standards for connections and understanding the biomechanical advantages of modular rigging, you transform your gear from a collection of parts into a cohesive, reliable system.
Whether you are navigating the logistics of airport security or balancing payload for travel, the integrity of your mounting interface is what keeps your equipment safe and your focus on the story. Treat your mounts with the same respect as your glass, and they will support your creative vision for years to come.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or safety advice. Always refer to your specific equipment's user manual for weight limits and maintenance requirements. Improper use of rigging equipment can result in gear damage or personal injury.
