A phone rig with mic and light can also hold an external SSD, but there is no universal fit guarantee. The exact phone, case, cage, microphone, light, SSD enclosure, cables, adapters, and shooting orientation must work together in three ways: the accessories must physically mount, the phone must retain access to its camera and ports, and the finished setup must remain practical to hold.
Think of this as a system check, not an accessory-count question. A storage enclosure such as the MagSafe SSD enclosure may be one configuration option, but its listed interfaces do not prove that every microphone, light, phone, or cage will fit around it.

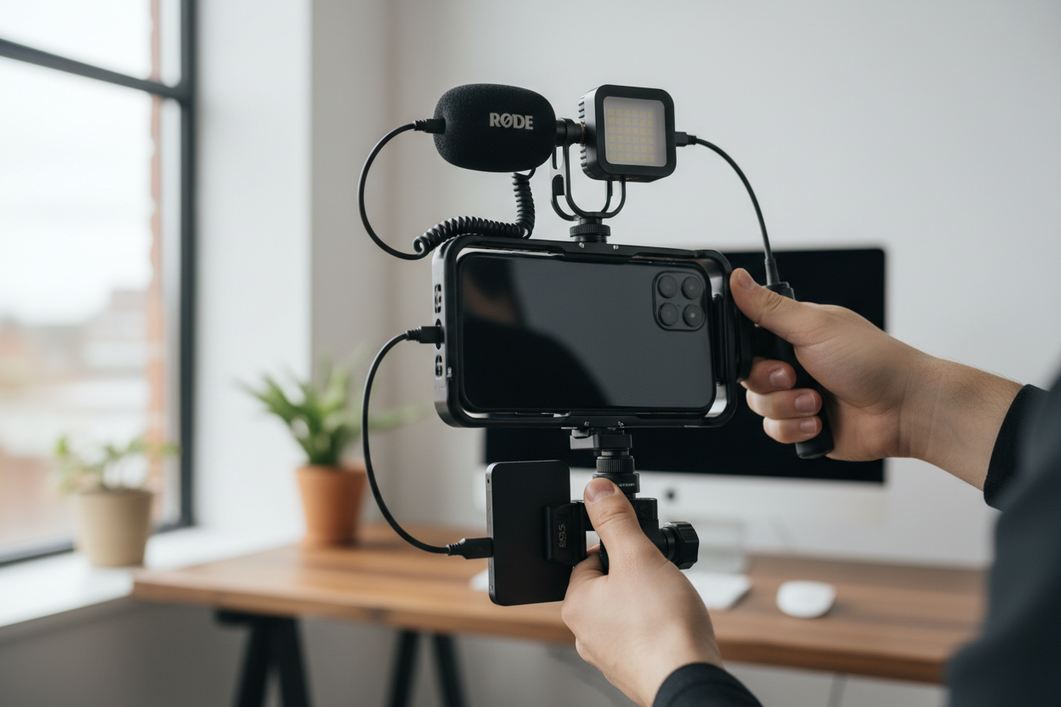

A Phone Rig With Mic and Light Can Add an SSD
Yes, a phone rig may carry a microphone, light, and SSD together when every attachment, connection, cable path, and control remains usable. The physical layout is only the first test: the phone and app must also support the intended external-storage workflow, and the completed rig should still be manageable in your hand.
The MA58 is described as a two-in-one SSD enclosure and phone stand, making it a useful example of how storage can become part of a mobile setup. Treat it as a storage-component option, not as proof that a complete three-accessory arrangement will work with your equipment.
A practical smartphone video rig compatibility decision depends on the mounting layout, clearance, connections, and handling. If one of those checks fails, change the layout, remove an accessory, add an appropriate adapter, or switch to supported shooting. Do not assume that an open shoe or thread solves the entire configuration.
Check Mounting Points Before Choosing the Layout
Count usable attachment paths, not just the number of holes listed on a product page. Assign the microphone, light, and SSD to specific interfaces, then confirm that those positions leave the lens, screen, buttons, microphones, and data port accessible.
| Component | Likely attachment method | Placement goal | Pre-purchase fit check |
|---|---|---|---|
| Microphone | Cold shoe, threaded mount, clamp, or receiver-specific attachment | Keep the microphone clear of the lens and controls | Check the microphone body, mount, cable, and intended horizontal or vertical orientation |
| Light | Cold shoe, 1/4-inch thread, clamp, or accessory bracket | Aim light without covering the lens, screen, or microphone | Check adjustment range and whether the light collides with the mic or SSD enclosure |
| SSD or enclosure | Dedicated enclosure, clamp, threaded mount, or storage stand | Keep the drive secure while preserving the phone's active data port | Confirm the enclosure's dimensions, connector roles, cable direction, and phone compatibility |
| Phone | Cage clamp, MagSafe-style attachment, or phone holder | Keep cameras, controls, and ports exposed | Compare the exact phone and case with the holder's current specifications |
For a model-specific example, the Ulanzi 3127 lists 12 standard 1/4-inch screw holes for accessory expansion. That documents mounting capacity for that model; it does not establish that a particular microphone, light, and SSD will fit together without collision. Its listed phone-holder range of 66–83 mm is also a product-specific fit detail, so compare it with your phone and case rather than applying it to every rig. Mounting accessories can help you explore interface options, but a collection page is not a compatibility confirmation.
A compact adapter such as the MA07 illustrates the difference between interfaces: it provides a 1/4-inch thread and a cold-shoe interface. That may bridge a mounting mismatch for a light or microphone, but it adds another layer of spacing, orientation, and balance to verify. An adapter's own specifications should not be treated as a rating for the complete rig.
Resolve Clearance, Ports, and Cable Routing
A mounted accessory can still make the setup unusable if it blocks the camera, controls, screen, or active data port. Before recording, inspect the assembled layout in the orientation you actually use and trace every cable from the phone to its destination.
Microphone Placement for Clear Phone Framing
Place the microphone where its body, mount, and cable stay outside the intended frame and do not cover the screen or controls. The closest open mount is not automatically the best position, particularly when you switch between horizontal and vertical video.
Check the microphone against the phone's camera bump and screen edge, then rotate the rig as you would during a real take. If the cable crosses a button, lens, or hand position, try a different mount or route. The vertical mic placement guide is a useful follow-up for this specific framing problem.
SSD Access and Cable Path
An SSD that is physically attached is not necessarily an SSD that the phone can record to. Trace the functional chain: phone data port, cable, adapter if needed, enclosure, drive, recording app, file system, and any required power path.
Apple documents direct external-storage recording for supported iPhone workflows, including device, connection, recording-mode, and storage requirements. Its Final Cut Camera documentation also describes a USB-C connection and an exFAT-formatted drive for supported iPhones. Those instructions do not automatically apply to Android phones or every camera app, so check your own phone and app documentation before buying around an SSD workflow. Mobile cage cable management can provide additional routing ideas, but the exact cable and enclosure still need testing.
The MA58 product information lists separate data, power, and accessory interface roles. Use those as model-specific planning details: map which connection handles the drive, which connection reaches the phone, and whether the remaining path can serve your other accessories. Do not turn a listed port or theoretical transfer specification into a guaranteed recording result.
Light Clearance and Viewing Angle
A light should remain adjustable after the microphone and SSD enclosure are installed. Check the lens, screen, microphone, and enclosure from the light's actual position—not from an empty cage.
Test the intended brightness and angle while holding the phone in your normal shooting position. If the light needs to point inward but the SSD or microphone blocks its adjustment, move the light outward, change the mount, or simplify the layout. The goal is a usable frame and lighting angle, not filling every available attachment point.
Choose a Layout That Preserves Handheld Balance
A complete three-accessory rig can work by hand only if it preserves grip access, manageable balance, and practical movement. Adding a microphone, light, SSD, cables, and adapters can shift the center of gravity or make orientation changes awkward, even when every part technically mounts.
Use these four checks before committing to a handheld layout:
- Center of gravity: Hold the fully assembled rig at the intended grip point. Notice whether the phone, light, or enclosure pulls the setup forward or sideways.
- Grip position: Confirm that your fingers can reach the controls without pressing against a cable, microphone mount, or enclosure. A clear mount is not useful if it removes the usable hand position.
- Orientation changes: Rotate between horizontal and vertical framing. Watch for cable tension, a light or mic entering the frame, and an enclosure that catches against your hand.
- Handheld versus supported shooting: If the setup becomes front-heavy or difficult to operate, simplify the accessory layout or use a tripod or extended grip. Supported shooting may improve the workflow, but it does not guarantee compatibility or safety.
Use the dual cold shoe grip only as a possible configuration path, not as proof that every three-accessory setup will balance. The right choice depends on where the accessories sit and how you plan to move the phone.
Use a Compatibility Checklist Before Buying
Before buying a phone rig with mic and light for simultaneous audio, lighting, and external storage, run the exact equipment list through six gates. Keep the configuration only if all six pass; otherwise simplify it, change the attachment path, or switch to supported shooting.
- Inventory the equipment. Write down the exact phone, case, rig, microphone, light, SSD, enclosure, cables, adapters, and intended shooting orientation. A phone cage for long recording must be evaluated with the case and storage hardware installed, not as an empty holder.
- Map the attachment points. Assign a real interface to the microphone, light, and SSD or enclosure. Mark whether each uses a cold shoe, 1/4-inch thread, clamp, or enclosure-based attachment. Do not count a mount unless the accessory can physically use it.
- Test camera and screen clearance. Install everything and check the front and rear cameras, screen, buttons, built-in microphones, and phone case edges. Repeat the check in both orientations if you publish or record in horizontal and vertical formats.
- Trace data and power cables. Start at the phone's active data port and follow the cable to the enclosure or drive. Then trace power and accessory cables. Leave workable slack without loops that can catch on your hand, and confirm that the recording app and drive format support the intended workflow.
- Assess handheld balance. Hold and rotate the assembled rig. Check center of gravity, grip access, cable movement, and whether any component blocks the controls. If the rig is awkward, remove an accessory or use a supported setup rather than forcing the layout.
- Make a short full-setup recording. Record with the microphone, light, SSD, cable routing, app, and power arrangement exactly as planned. Review the footage, verify that the drive connection remains active, and check whether the rig stays comfortable for the intended task.
If you are still comparing configurations, browse smartphone filmmaking kits or vlogging setups as shopping paths. Choose the simplest phone rig with an external SSD and microphone that passes every gate instead of assuming a larger rig will solve a clearance or cable problem.
FAQs
Use these questions to pressure-test a particular layout after the main checklist, especially when placement or workflow details remain uncertain.
Can I Mount a Microphone and Light on the Same Side of a Phone Rig?
Yes, if both interfaces leave room for the microphone body, light angle, camera framing, and cables. Install them in the intended orientation and check the frame before committing to that side.
Does an External SSD Need Its Own Mount on a Smartphone Rig?
Not necessarily. It needs a secure attachment or enclosure path, plus a compatible data connection and cable route. A spare cold shoe is not automatically an SSD mount.
Is a Phone Cage Better Than a Small Grip for a Three-Accessory Setup?
A cage may offer more non-conflicting attachment paths, while a small grip can be easier to carry. Choose based on the accessory count, cable demands, and grip you can actually use.
Can I Record for a Long Time With a Mic, Light, and SSD Attached?
Possibly, but confirm the phone, app, drive format, cable, power arrangement, connection security, heat, and comfort with a short complete-setup test. A successful mount alone does not establish recording duration.
