A new mobile rig is ready for a real shoot only after the exact phone, case, accessories, and shooting workflow produce a short sample you can review. Use this mobile rig test checklist to verify the shot, microphone path, lighting, power, storage, cable routing, and handling together. It is a practical pre-shoot check—not a certification—and it is separate from a dedicated mechanical quick-release or torque inspection.
The key gate is simple: record the setup you actually plan to use, review the result, and fix or simplify anything essential that fails. Retest the affected portion whenever a phone, case, microphone, light, battery, cable, support, or other change alters fit, input, power, balance, framing, or routing.
Set Up the Rig for the Real Shoot

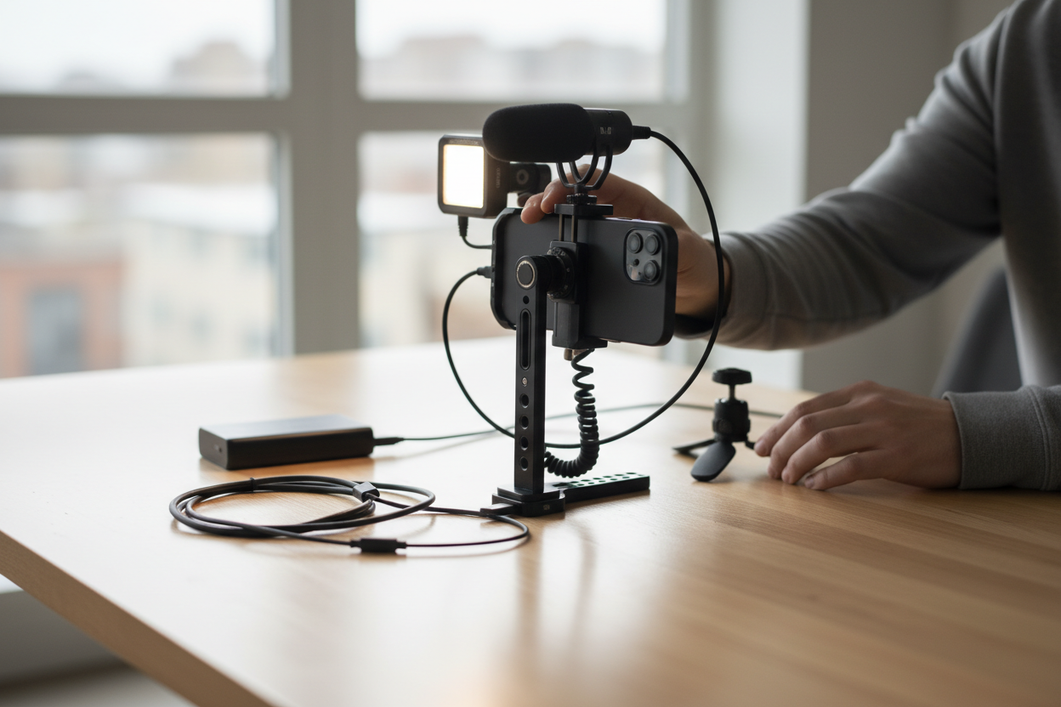

Before testing, assemble the phone rig in the same configuration and position you expect to use. A useful phone video setup checklist starts with the real phone and case, not an approximate substitute.
Map Each Component to a Shooting Need
List the equipment needed for this specific shot: phone, mount or cage, microphone, light, power source, storage, cables, handles, and support. Remove accessories that do not serve the shot; every extra connection adds another fit, balance, power, or routing variable.
| Component | Shooting need to define before testing |
|---|---|
| Phone and case | Camera access, controls, connector clearance, and the intended recording app |
| Mount, cage, or support | Planned orientation, movement, and handling position |
| Microphone and cable | Intended input, speaker distance, and cable path |
| Light and power | Subject position, light placement, and how the setup will be powered |
| Storage and power accessories | File destination, transfer plan, and whether connections remain accessible |
If you are comparing phone cage options or a dual-handle phone rig, use the product page to check current fit and specifications. The link itself is not proof that a particular phone or accessory combination is compatible.
Recreate the Phone and Case Combination
Use the exact phone, case, connector arrangement, orientation, subject distance, and planned movement. Check camera access, microphone openings, buttons, charging ports, and storage connections without forcing the phone or cable into place.
Make sure the case you test is the one you will carry to the shoot. A bare phone may clear a connector or camera, while a case can change access, spacing, and cable routing. If a connection feels forced, stops a control from working, or blocks the intended camera view, pause and check the current manufacturer specifications rather than assuming the fit is acceptable.
Define a Simple Pass or Fail Rule
A passing setup records the planned shot, saves a usable sample, and leaves you with workable handling. It does not need to prove that the rig will perform identically in every location; it needs to show that this exact workflow is usable under the conditions you tested.
Prepare a simpler tested setup or a known-good spare for any essential component. For example, a simpler phone-and-microphone arrangement may be a better fallback than carrying an untested light, battery, or connector into the first take.
Run the Framing Test Before the First Take
Test framing by recording the intended shot in the intended orientation, lens, camera mode, and movement. Review the recorded clip rather than trusting the live preview alone, because movement can reveal edges, focus changes, exposure shifts, cable interference, or handling problems that are easy to miss while setting up.
- Clean the lens. Remove fingerprints or dust before judging the image.
- Select the planned camera setup. Choose the intended lens, orientation, focus behavior, exposure approach, and recording format.
- Recreate the composition. Place the subject at the expected distance and include the planned headroom, product area, or background.
- Check edge clearance. Look for the cage, handle, microphone, light, cable, or case entering the frame, especially at the edges.
- Move as planned. Walk, pan, tilt, speak while holding the rig, or make the other movement required by the shot.
- Record a short sample. Use enough of the real workflow to expose handling and framing changes; do not rely only on a static preview.
- Review the clip. Check composition, focus behavior, exposure, stabilization behavior, unwanted rig parts, and visible handling movement.
- Repeat after a major repositioning. A change to the phone, lens choice, support position, or accessory placement can alter the affected portion of the test.
A phone tripod mount or phone tripod can be a useful navigation point when you are changing support methods, but neither category is proof that your selected setup will produce stable footage.
Test Audio and Lighting in the Same Clip
Use one representative recording with the intended microphone and light, then review the sound and picture together. The result depends on placement, settings, subject, room, and scene, so a powered-on indicator or bright preview is not enough to judge the finished clip.
Verify the Microphone Path
Record the speech, interview, narration, or room sound planned for the shoot at the intended distance. Confirm that the expected input is captured, then listen with headphones for clothing rustle, handling noise, cable knocks, hum, clipping, room echo, and phone interruptions.
Do not assume a connector works because it fits physically. Check the phone's input selection or recording behavior as applicable to your device and app. If the microphone, adapter, case, or cable changes, make the focused input check again; make a new sample when the change affects the recorded workflow.
Test the Light on the Subject
Inspect the actual face, product, or scene in the planned composition. Look for hard or distracting shadows, glare, reflections, uneven exposure, visible flicker, and a light position that blocks the frame or interferes with a cable or control.
For a low-light or evening shoot, test in the actual dim scene or a close approximation. A bright room test may not reveal noise, shadow detail, reflective surfaces, or flicker that appears when the scene and light level change.
Review the Combined Clip
Watch and listen to the same sample through playback. Check audio, exposure, color, focus, lighting, and handling together instead of approving each accessory in isolation.
If the image looks acceptable but the sound has cable knocks, or the sound works but the light creates glare, the combined setup has not passed yet. Change one variable at a time when possible, then record another short sample so you know which adjustment solved the problem.
Stress-Test Power, Storage, and Cable Routing
A short power-on check can miss file-saving, heat, connector, and routing problems. Before relying on the setup for a long or important recording, verify the phone, cable, power source, storage path, and accessories together using a representative recording; use device documentation for model-specific charging, storage, and compatibility guidance.
| Check | If it fails, respond before filming |
|---|---|
| Recording and file destination | Stop and confirm where the clip is being saved and how it will be transferred or space recovered. |
| Available storage | Match the planned recording mode and duration to the available space, leaving a practical buffer rather than relying on a universal capacity rule. |
| Power connection | Check that the intended power arrangement remains connected during the sample and does not block controls or other inputs. |
| Heat and battery behavior | Observe the setup during representative use; do not invent a runtime or temperature limit. Follow the device and accessory instructions. |
| Cable slack and connector strain | Reroute any cable that pulls, catches, bends sharply, blocks a grip, or puts pressure on a connector. |
| Hand and grip clearance | Stop if a cable crosses the operator's fingers, catches during movement, or creates a snag point. |
For a related navigation path, see cable routing for grip clearance and external battery mounting. These resources do not establish battery life, charging performance, heat limits, or safety for your particular components.
Storage planning needs four inputs: the recording mode, expected duration, file destination, and the amount of space you want available after the shoot. Record a test clip, verify that it saves where expected, and confirm that your transfer or deletion plan is practical before filming.
Make the Final Go-or-No-Go Decision
Mark the rig ready only when the exact configuration produces a reviewable sample and all essential workflow checks pass. If one essential check fails, fix the failing component or switch to a simpler tested setup before filming.
- Preserve the sample. Save or transfer it so you can refer to the tested configuration and confirm the file is usable.
- Confirm power and storage. Verify the planned power arrangement, file destination, available space, and transfer plan.
- Secure the routing. Make sure cables have useful movement slack without blocking controls, hands, connectors, or the intended frame.
- Pack the tested configuration. Bring the tested phone, case, accessories, cables, spares, and tools—not an untested substitute.
- Perform the relevant support check. Follow the manufacturer's instructions for mounts, batteries, cables, and quick-release hardware. This article does not replace a dedicated mechanical inspection.
- Choose the outcome. Mark the setup ready, fix the failed item, or simplify to the smallest tested arrangement that can complete the shot.
Use this mobile rig test checklist before loading out. If transport, a phone swap, a case change, or an accessory change occurs after the test, repeat the checks affected by fit, input, power, balance, framing, or routing. For high-motion work, prevent accidental gear release as a separate support and hardware concern rather than treating this whole-rig checklist as a mechanical approval.
FAQs: Mobile Rig Test Checklist
These questions cover changes that can alter the test scope or recovery plan.
How Do I Test Phone-Rig Audio and Lighting in Low Light?
Use the actual dim location or a close approximation, with the planned subject and light position. Review speech through headphones and inspect playback for shadows, glare, flicker, uneven exposure, focus changes, and noise. A bright-room test does not answer the low-light question.
Should I Retest a Phone Rig After Changing One Accessory?
Use a focused check for a minor change that does not affect the recording workflow. Record a new sample when the change affects fit, input, power, balance, framing, or cable routing. Changing one variable at a time makes the cause of a new problem easier to identify.
How Much Phone Storage Should I Have Before a Video Shoot?
Estimate from the planned recording mode and duration, confirm the destination, and leave a practical buffer for the day's workflow. Record a test clip and verify that it saves correctly. The right amount varies with the phone, app, format, and transfer plan, so a universal capacity number would be misleading.
What Should I Do If the Rig Passes at Home but Fails on Location?
Stop recording and isolate the failure: framing, audio, lighting, power, storage, heat, or cable routing. Remove the least essential variable, use a tested spare if available, and record a new sample in the location before resuming. If the simplest workable setup still fails, postpone the take rather than treating the first clip as proof of readiness.
