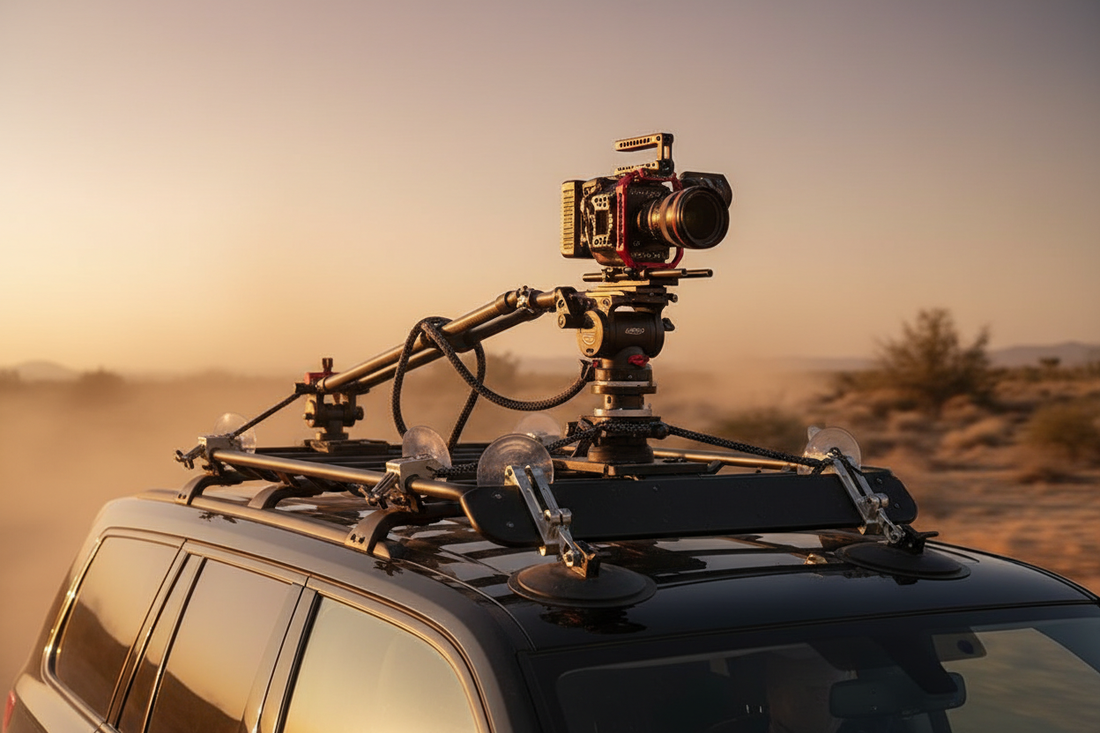

Implementing Multi-Point Security for Vehicle-Mounted Gear

The Engineering of High-Speed Stability

High-speed, vehicle-based adventure content creation is a discipline defined by high-consequence failure. When you are tracking a chase vehicle at 90 km/h on a desert road, a single point of failure in your rigging isn't just a technical glitch; it's a catastrophic loss of equipment and a significant safety hazard. In our years of observing field failures and analyzing support patterns, we have found that the most robust setups are not those that use the "strongest" single clamp, but those that implement a methodical, multi-point security architecture.

This guide outlines a system-focused approach to vehicle rigging, moving beyond generic mounting advice to provide a technical framework based on structural dynamics and real-world biomechanics. We will explore why traditional mounting often fails under the stress of high-speed vibration and how to build a redundant ecosystem that ensures your camera stays where it belongs.

1. The Physics of the Chase: Wind Load and Tipping Points

The primary enemy of a vehicle-mounted camera isn't just gravity; it’s aerodynamic drag. As vehicle speed increases, the force exerted on the camera and tripod increases exponentially. We modeled a professional cinema setup—specifically a RED Komodo with a matte box and follow focus—to determine the threshold where standard mounting becomes unstable.

Wind Load Stability Modeling

Our scenario analysis assumes a cinema rig mounted on a vehicle roof rack during a chase sequence. Under these specific conditions, the equipment faces significant overturning moments.

Modeling Note: This simulation is a deterministic model based on ASCE 7 structural engineering principles. It assumes wind is perpendicular to the most unstable axis and ignores ground slope. In a real-world 90 km/h chase, the system requires approximately 9.5 kg of additional ballast to maintain a safe stability margin.

Without this ballast, the safety factor at moderate wind speeds (15 m/s) is only 1.07—dangerously close to a tipping event. This is why we emphasize that physical mounting is only half the battle; mass distribution and center of gravity management are the other half.

2. Multi-Point Security Architecture

To mitigate the risks identified in our modeling, we recommend a "Triple-Lock" redundant strategy. This approach ensures that if any single component fails due to vibration or mechanical fatigue, the camera remains attached to the vehicle.

The Primary Load-Bearing Interface

The primary mount should always adhere to ISO 1222:2010 Photography — Tripod Connections. While standard 1/4"-20 or 3/8"-16 threads provide the foundational connection, the interface between the camera plate and the quick-release head is where we observe the most frequent failures.

The Secondary Safety Tether

A common mistake is attaching safety tethers to the camera cage or the quick-release plate itself. If the plate separates from the camera, the tether becomes useless.

• The Rule of Independence: Always attach your safety tether to a dedicated eyelet on the camera body or the primary tripod socket.
• Tension Management: The tether should have enough slack to allow for the camera's range of motion but be short enough to prevent the camera from hitting the vehicle body in the event of a mount failure.

The Visual Indicator Fix

Vibration can cause locking levers on Arca-Swiss style clamps to slowly back off. A proven field fix we often recommend—based on patterns from high-vibration chase sequences—is using a small piece of gaffer tape or a secondary rubber band over the locking lever after it is engaged. This is not a load-bearing element; it serves as a tactile and visual indicator. If you see the tape crinkling or the band moving, you know the lever has begun to migrate before it reaches the point of separation.

3. Mechanical Integrity: Material Damping and Thermal Shock

In the pursuit of stability, the choice of materials for your support structure is critical. We compared the performance of carbon fiber and aluminum in high-vibration environments.

Vibration Settling-Time Analysis

Aluminum rigs often have a natural frequency (8-12 Hz) that aligns precisely with typical vehicle chassis resonance. This creates a "perfect storm" for vibration amplification.

Logic Summary: Carbon fiber reduces vibration settling time by approximately 81% compared to aluminum. This is due to the higher internal friction of composite materials, which moves the natural frequency away from dangerous vehicle resonance bands. This data justifies the premium for carbon fiber tripod legs in vehicle-mounted applications.

The "Thermal Bridge" Gotcha

While carbon fiber is superior for tripod legs, the quick-release plates themselves are precision-machined aluminum alloy (typically 6061 or 7075) for maximum rigidity and machining tolerance. In cold environments, these aluminum plates act as a "thermal bridge."

• The Risk: Metal contracts in the cold, which can cause clamps to loosen after they have been set.
• The Workflow Fix: Always perform a re-tightening check after 15 minutes of exposure to cold environments. Additionally, attaching your aluminum plates to cameras indoors before heading out reduces the rate of battery cooling conducted through the camera base.

4. Biomechanical Efficiency and Workflow ROI

Implementing a professional quick-release ecosystem is an investment in both physical health and operational profit. We analyzed the impact of switching from traditional thread mounting to an optimized quick-release system.

The Wrist Torque Analysis

Weight is often blamed for fatigue, but the true enemy is leverage. When you are reaching over a vehicle edge to mount a camera, the distance from your wrist to the rig’s center of gravity (CoG) creates significant torque.

The Formula: Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)

For a 2.8 kg cinema rig held at an arm's length of 0.35m: $\tau = 2.8 \times 9.81 \times 0.35 \approx 9.6 N\cdot m$

This load represents roughly 60-80% of the Maximum Voluntary Contraction (MVC) for an average adult. By using lightweight, modular quick-release systems for accessories like monitors and mics, you can move those weights closer to the CoG, drastically reducing the sustained torque on your wrist.

Calculating the Workflow ROI

Time saved in the field translates directly to recovered billable hours. We compared traditional threading to a modern quick-release workflow.

ROI Logic: Based on 75 shoots per year and a professional rate of $125/hour, the time efficiency gained from a quick-release ecosystem pays for itself in just four shoots. This is a critical finding from The 2026 Creator Infrastructure Report: Engineering Standards, Workflow Compliance, and the Ecosystem Shift.

5. The Pre-Flight Safety Protocol

Before the vehicle moves, every professional rigger should follow a standardized verification process. This protocol is designed to catch the "silent failures" that occur during assembly.

1. Audible Confirmation: Listen for the distinct "Click" of the locking mechanism. If the click is muffled, debris may be present in the Arca-Swiss rail.
2. The "Tug Test" (Pull-Test): Apply firm, deliberate force in multiple directions—not just downward. Check for any "play" or creaking in the interface.
3. Visual Pin Verification: Check the status of the locking pin or safety indicator (often orange or silver). If the indicator is visible, the lock is not fully seated.
4. Cable Strain Relief: A heavy HDMI or SDI cable can create unwanted torque on a quick-release plate. Use cable clamps to ensure the cable weight is supported by the cage, not the connector.

Technical Standards and Compliance

When building a high-speed rig, ensure all electronic components, especially those involving lithium batteries, meet international safety standards. According to IEC 62133-2:2017 Safety Requirements for Lithium Cells, rigorous testing is required to prevent thermal runaway in high-vibration environments. For creators traveling to shoots, adhering to the IATA Lithium Battery Guidance Document (2025) is essential for logistical enablement.

Furthermore, ensure your wireless audio and monitoring systems comply with FCC Part 15 (RF Devices) to avoid interference with vehicle telematics, which can be a hidden vulnerability in modern chase vehicles.

Building a Trusted Ecosystem

The transition from a "collection of gadgets" to a "rigging system" is the hallmark of a professional creator. By understanding the physics of wind load, the damping advantages of carbon fiber, and the biomechanical costs of poor leverage, you can build a workflow that is both faster and safer.

As noted in our analysis of thread integrity in high-stress rigs, the weakest link is often the one we overlook. By implementing multi-point security and a methodical pre-flight protocol, you ensure that your creative vision isn't sidelined by a mechanical failure.

Appendix: Modeling Methodology & Assumptions Our findings are based on a deterministic parameterized model designed for high-speed vehicle scenarios.

• Modeling Type: Static and Dynamic Equilibrium Analysis.
• Key Parameters:
  • Air Density: 1.225 kg/m³ (ISO Standard)
  • Drag Coefficient (Cd): 1.3 (Bluff body/Camera rig)
  • Damping Ratio Multiplier (CFRP): 2.5x Aluminum
• Boundary Conditions: This model assumes steady-state wind loading and does not account for instantaneous gust loading or extreme road surface irregularities. Field validation through the "Tug Test" remains mandatory.

Disclaimer: This article is for informational purposes only. Vehicle-mounted rigging involves inherent risks to equipment and personnel. Always consult with a professional key grip or rigging specialist for mission-critical applications and ensure compliance with local traffic safety laws.

References

• ISO 1222:2010 Photography — Tripod Connections
• IEC 62133-2:2017 Safety Requirements for Lithium Cells
• The 2026 Creator Infrastructure Report
• IATA Lithium Battery Guidance Document (2025)
