Rethinking the Vertical Axis: The Physics of Small-Space Production
TL;DR: How to Reclaim Your Desk To optimize a small studio, shift from horizontal clutter to vertical layering. Key strategies include:
- Minimize Leverage: Keep heavy gear close to vertical supports to prevent sag.
- Modularize: Adopt a unified quick-release system to save ~50 hours of setup time annually.
- Safety First: Always perform the Audible-Tactile-Visual check before every shoot to protect your gear.
Quick Action Checklist: Pre-Shoot Safety
- [ ] Audible: Listen for the "Click" of the locking mechanism.
- [ ] Tactile: Perform the "Tug Test"—briefly pull on the gear to ensure the pin is seated.
- [ ] Visual: Verify that the locking indicator (usually orange or silver) is fully engaged.
- [ ] Strain Relief: Ensure cables have enough slack so they aren't pulling on camera ports.
The Physics of Small-Space Production

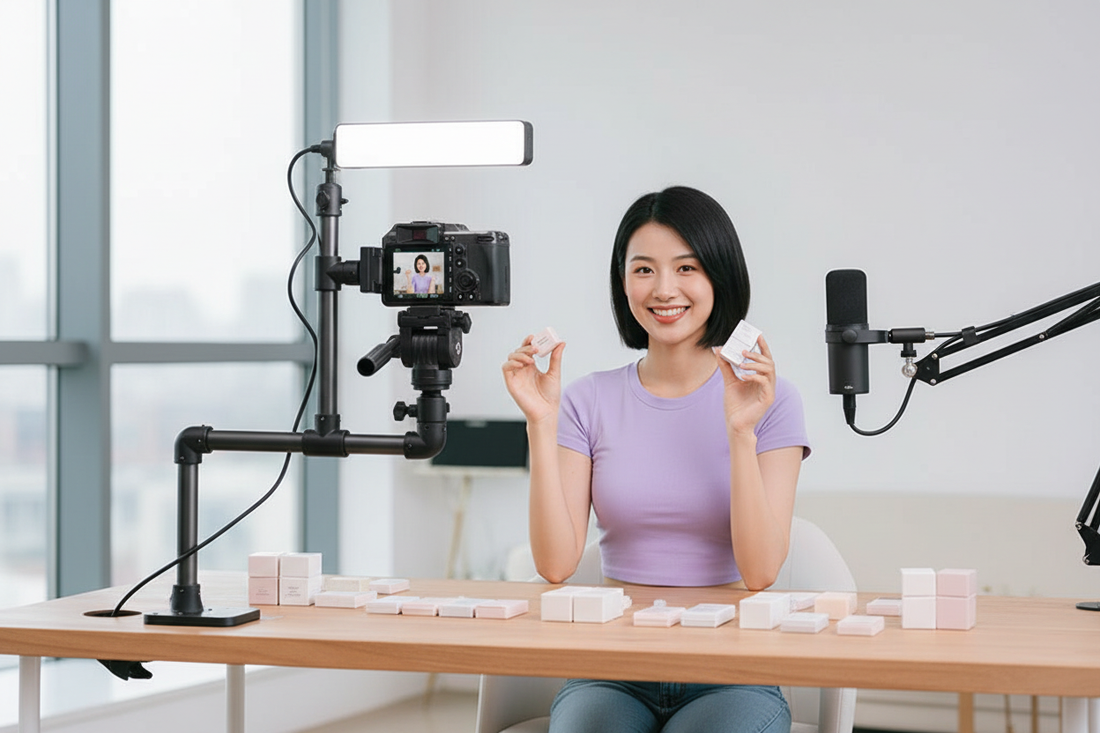

For the solo creator, the desk is the foundation of a production studio. In space-constrained environments, the traditional "horizontal" approach—placing every tripod and light stand on the floor—leads to a cluttered, unusable workspace. The solution lies in vertical layering: treating the space above your desk as a high-density equipment rack.
Based on common patterns observed in creator setups, a frequent challenge in small studios isn't gear quality, but spatial engineering. When you mount a camera, a monitor, and a microphone onto a single vertical pole, you are building a cantilevered structure subject to mechanical stress.
The "Wrist Torque" Analysis
One of the most overlooked aspects of rigging is the impact of leverage. Weight is not the only factor; leverage is the force that often causes monitor arms to sag and plates to slip. To estimate the stress on a mounting point, we use the following calculation:
Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)
Consider a scenario where a camera rig weighing 2.8kg is held on an extension arm 0.35m away from the central support. Using the standard gravity constant ($9.8 m/s^2$), this setup generates approximately $9.61 N\cdot m$ of torque.
Heuristic Note: This calculation assumes a static horizontal extension. In our field observations, this level of torque can significantly increase physical fatigue during manual adjustments. Moving accessories to more compact mounting systems—reducing the lever arm ($L$)—helps reduce the mechanical strain on both the hardware and the user's wrists.
Managing the Center of Gravity
A practical "rule of thumb" is to keep the center of gravity (CoG) as close as possible to the arm's largest vertical support. When a rig is cantilevered too far out, it may induce a slow, imperceptible sag. In a long live stream, this can gradually shift your framing, potentially requiring an interruption to re-adjust.
Typical Benchmarks for Desktop Rigging Note: These values are typical observations from engineering reviews of professional-grade creator hardware and serve as representative examples rather than universal safety limits.
| Parameter | Typical Value/Range | Unit | Rationale |
|---|---|---|---|
| Max Horizontal Extension | 250 - 400 | mm | Limits torque on standard desk clamps |
| Vertical Support Diameter | 35 - 45 | mm | Structural rigidity for multi-arm loads |
| Base Clamp Depth | >50 | mm | Surface area for stable pressure distribution |
| Safety Factor | 2.0x | Ratio | Recommended buffer for dynamic movement |
| Static Load Limit | 80 | kg | Benchmark for high-end quick-release plates |
The Quick-Release Ecosystem: A Workflow ROI Strategy
Efficiency in a small studio is measured by "time to shoot." Transitioning from traditional 1/4"-20 threaded mounts to a unified quick-release system is often one of the most effective upgrades for a solo creator.
According to the ISO 1222:2010 Photography — Tripod Connections standard, the 1/4"-20 screw is the foundational mount for cameras. However, threading gear onto a screw is a slow process that can risk cross-threading in low-light environments.
The Workflow ROI Calculation
We can estimate the value of a quick-release system by comparing it to traditional mounting:
- Traditional Thread Mounting: ~40 seconds per equipment swap.
- Quick-Release System: ~3 seconds per equipment swap.
For a professional creator performing 60 swaps per shoot and doing 80 shoots per year, the time saved is approximately 49 hours annually. At a professional rate of $120/hr, this represents over $5,900 in recovered productivity. This potential financial impact often justifies the initial investment in a modular ecosystem like the FALCAM quick-release standard.
The "Visual Weight" Advantage
Beyond speed, compact modular systems have a lower "Visual Weight." In our experience with travel logistics, bulky cinema-style plates often flag the attention of airline gate agents. Using sleek, aluminum-alloy quick-release plates that conform to Arca-Swiss technical dimensions allows for a rig that looks professional while remaining more discreet during travel.
Lighting and Audio: Standards for Professional Output
Photobiological Safety and Color Accuracy
When selecting LED lighting for a desktop environment, safety and color rendering are paramount. According to the IEC 62471:2006 Photobiological Safety standard, lights used in close proximity (less than 1 meter) should be evaluated for blue-light hazards to minimize eye strain.
For consistent video quality, look for gear that meets EBU R 137 / TLCI-2012 requirements. A TLCI score above 90 helps ensure colors remain consistent across different camera sensors, which can reduce time spent in post-production.
Acoustic Isolation in Cramped Spaces
A common mistake is investing in an expensive shock mount while ignoring desk-borne vibrations. If your microphone is mounted to the same desk as your keyboard, every keystroke can travel through the arm.
A simple, dense foam pad placed under the base of a microphone stand or the C-clamp of a boom arm can be highly effective. This technique decouples the hardware from the desk's resonant surface, a principle aligned with general acoustic isolation practices found in HomeRecording.com's guides.
Power Management and Data Integrity
The USB-PD Requirements
Many creators assume any USB-C cable can power their camera. However, matching USB-PD (Power Delivery) trigger voltages is critical. If your hub or cable does not match your camera's specific request (typically 9V/2A for modern mirrorless systems), the camera may continue to drain its internal battery. According to USB-IF standards, certified cables are designed to support these specific power profiles.
Cable Routing and Battery Safety
- Management: Use velcro straps at fixed intervals rather than zip ties. In a modular studio, zip ties are often too permanent for a dynamic workspace.
- Strain Relief: Use cable clamps on rigging arms to ensure the weight of a heavy HDMI cable isn't pulling on the camera's sensitive ports.
- Battery Safety: If using V-mount batteries, adhere to the IEC 62133-2:2017 standard for lithium cells to prevent thermal risks in poorly ventilated spaces. For travel, the IATA Lithium Battery Guidance is the definitive resource for cabin luggage compliance.
The Broader Workflow Advantage
Transitioning to a vertical, modular studio is about removing the friction between an idea and its execution. By applying mechanical principles like torque management and adhering to industry standards for lighting and power, you build a "ready-to-shoot" infrastructure.
When choosing between C-Clamps vs. Weighted Bases, remember that the most stable setup is the one that accounts for the center of gravity and the limits of your materials. Precision-machined aluminum alloy components provide the stability required for professional-grade setups.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or safety advice. Users should always consult their equipment manuals and local safety regulations. For ergonomic concerns or pre-existing physical conditions, consult a qualified specialist before modifying your workspace.
