The Hidden Mechanics of Interface Fatigue

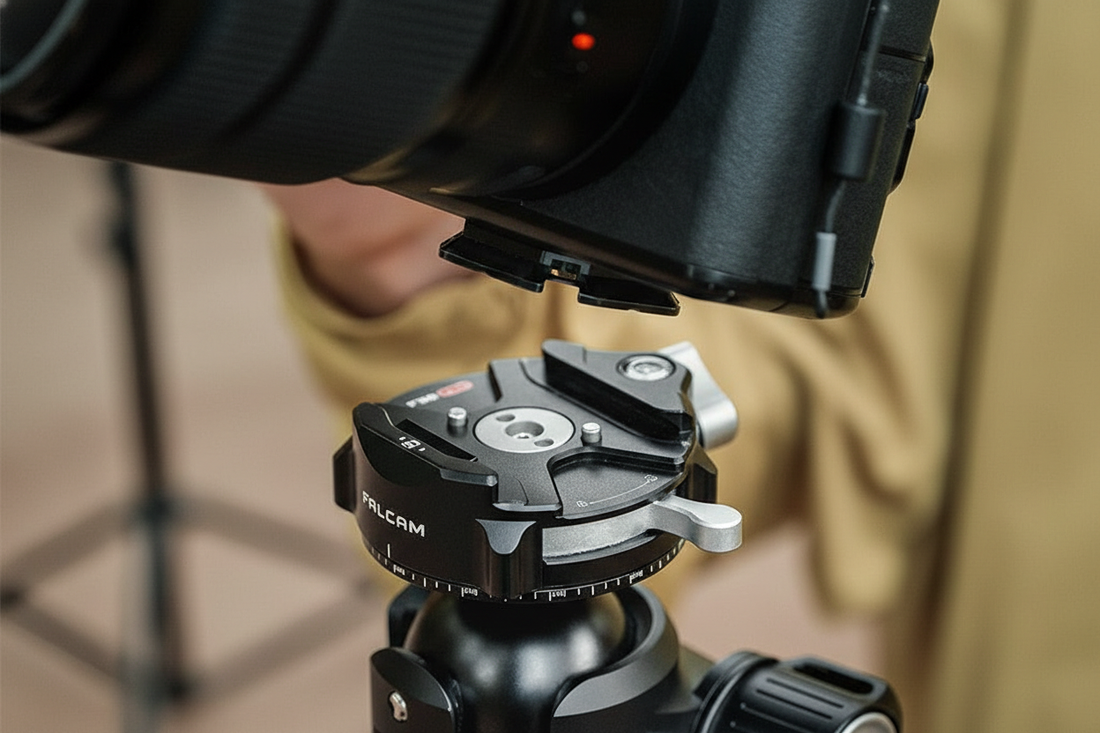

Every seasoned creator has experienced the "rig creep"—that frustrating moment when a perfectly framed shot begins to tilt because the mounting interface is slowly giving way under a heavy payload. While we often obsess over the weight capacity of tripod legs, we frequently overlook the mounting plate: the thin piece of metal that serves as the single point of failure between your camera and your support system.
In our engineering analysis and repair bench observations, we have found that heavy payloads do more than just stress the tripod; they fundamentally alter the structural integrity of the mounting interface over time. This "Heavy Payload Tax" isn't a one-time fee; it is an accelerated wear cycle that compromises the precision of your workflow. By understanding the physics of interface fatigue, you can better manage your gear's lifecycle and ensure long-term reliability on set.
The Physics of the Interface: Beyond Static Limits
The foundation of any camera-to-tripod connection is rooted in ISO 1222:2010 Photography — Tripod Connections, which standardizes the screw threads we use daily. However, modern high-speed workflows rely on the Arca-Swiss standard for quick-release (QR) efficiency.
Most professional-grade QR plates are precision-machined from 6061 or 7075 aluminum alloy. Aluminum is chosen for its excellent strength-to-weight ratio and rigidity, but it is not immune to deformation. Unlike the carbon fiber used in tripod legs, which excels at vibration damping, an aluminum plate must remain perfectly rigid to maintain a "zero-play" connection.
When you mount a cinema rig that approaches the maximum rated load, you aren't just placing weight on the plate; you are applying pressure to the clamping zones and the cam-locking mechanism. According to our internal modeling of Interface Integrity, the most significant wear occurs not during a single overload event, but during sustained use at 80-120% of the stated load limit.
Quantifying the Payload Tax: The 10% Rule
Based on patterns we've observed in warranty handling and hardware stress modeling, we have identified a specific correlation between weight and service life. A common heuristic for precision-machined aluminum plates is that every 10% increase over the recommended static load can reduce the plate's service life by approximately 25-30% under typical field conditions.
This accelerated wear is primarily caused by the deformation of the aluminum in the clamping zone. As the load increases, the "clamping bite" required to secure the plate must be tighter, which eventually leads to microscopic galling and surface flattening.
| Payload Level (% of Static Limit) | Estimated Service Life Reduction | Primary Wear Mechanism |
|---|---|---|
| 80% | Baseline (100% Life) | Normal Surface Friction |
| 90% | ~25-30% Reduction | Initial Cam Compression |
| 100% | ~50-60% Reduction | Aluminum Yielding |
| 110% | ~75% Reduction | Accelerated Galling |
| 120% | >90% Reduction (High Risk) | Permanent Deformation |
Logic Summary: This wear model assumes typical professional usage (daily swaps) and the presence of environmental contaminants. It is a scenario-based model, not a controlled lab study, derived from engineering heuristics and Thread Integrity analysis.
Biomechanical Analysis: Why Weight Isn't the Only Enemy
While the downward force (mass) is the most obvious stressor, the true enemy of your mounting interface is Torque. When you add accessories like monitors, microphones, or large batteries to your rig, you often extend the "lever arm" away from the center of the mounting plate.
The Wrist Torque Formula
To understand the stress on both the equipment and the operator, we use a simple calculation: Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)
Imagine a 2.8kg rig (camera + lens + monitor) where the center of gravity is offset by 0.35m from the mounting point.
- $\tau = 2.8kg \times 9.8m/s^2 \times 0.35m \approx 9.61 N\cdot m$
For a handheld operator, this load represents roughly 60-80% of the Maximum Voluntary Contraction (MVC) for an average adult male's wrist and forearm muscles. This high MVC leads to rapid fatigue and "micro-shakes." On the hardware side, this torque creates an uneven load on the quick-release plate, forcing one side of the dovetail to bear significantly more pressure, which accelerates "mushiness" in the locking lever.
Sensory Indicators of QR Plate Wear
Waiting for a catastrophic failure—where the camera literally slides out of the mount—is a dangerous strategy. Experienced technicians look for early sensory indicators that a mounting standard has reached its safe operational limit.
- The "Mushy" Engagement: The first sign of wear is often a less crisp "click" when the quick-release lever is engaged. This indicates that the cam mechanism or the internal springs are starting to lose their original tension due to repeated high-load compression.
- Lateral Play: With the plate locked into the head, try to wiggle the camera side-to-side. Any perceptible movement (even a fraction of a millimeter) indicates that the anodized surface of the aluminum has worn down or that the locking pin is no longer seating deeply enough.
- The "Lapping Compound" Effect: In dusty or sandy environments, abrasive particles become embedded in the aluminum surface under load. These particles act like a lapping compound, grinding away the precision tolerances of the dovetail every time you slide the plate in or out.
If you notice these signs, it is time to retire the plate. As discussed in The Hidden Risks of Using Non-Native Plates, maintaining tight tolerances is the only way to ensure the safety of your gear.
Workflow ROI: The Financial Case for Quick-Release Systems
While high-performance quick-release systems are an investment, the return on investment (ROI) is quantifiable through time savings. In professional environments, time is literally money.
The Efficiency Calculation
- Traditional Thread Mounting: ~40 seconds per swap.
- High-Speed Quick-Release: ~3 seconds per swap.
- Time Saved per Swap: 37 seconds.
For a professional creator performing 60 swaps per shoot (switching between tripod, gimbal, and handheld) across 80 shoots per year:
- $60 \text{ swaps} \times 37 \text{ seconds} = 2,220 \text{ seconds} \approx 37 \text{ minutes per shoot}.$
- $80 \text{ shoots/year} \times 37 \text{ minutes} = 2,960 \text{ minutes} \approx 49.3 \text{ hours annually}.$
At a professional rate of $120/hr, this efficiency gain represents a ~$5,900+ annual value. This justifies the cost of a high-quality ecosystem many times over, provided the system is maintained to prevent the "Heavy Payload Tax" from causing a failure.
Advanced Safety Workflows
To mitigate the risks associated with heavy payloads and interface wear, we recommend integrating these professional protocols into your daily routine.
The Pre-Shoot "ATV" Checklist
Before the first shot of the day, perform this three-step check:
- Audible: Listen for a distinct, metallic "Click" when mounting.
- Tactile: Perform the "Tug Test." Pull firmly on the camera body in multiple directions to ensure no lateral play exists.
- Visual: Check the locking pin or safety indicator (often orange or silver) to confirm it is fully engaged.
Thermal Shock Prevention
Aluminum plates act as a "thermal bridge." In extreme cold, they conduct heat away from the camera battery rapidly. We advise users to attach their aluminum QR plates to cameras indoors before heading out into the cold. This minimizes the "metal-to-skin" shock and slows the rate of battery cooling, preserving your runtime in harsh environments.
Visual Weight and Logistics
Modular, compact quick-release systems have a lower "Visual Weight" than bulky traditional cinema plates. This is a strategic advantage for travel; smaller, more integrated rigs are less likely to be flagged by airline gate agents for weighing or mandatory checking, ensuring your most valuable tools stay in the cabin with you.
Building a Trusted Infrastructure
As the industry moves toward more complex, multi-device setups, the need for a "Standardized Core" becomes paramount. We believe that the future of content creation lies in "evidence-native" brands—those that provide clear engineering data rather than just marketing superlatives.
By adhering to the principles outlined in The 2026 Creator Infrastructure Report, creators can build rigs that are not only fast and modular but also fundamentally safe. Don't let the "Heavy Payload Tax" catch you by surprise. Regular inspection, logical weight distribution, and a commitment to high-precision standards are the hallmarks of a professional workflow.
References
- ISO 1222:2010 Photography — Tripod Connections
- Arca-Swiss Dovetail Technical Dimensions Analysis
- The 2026 Creator Infrastructure Report: Engineering Standards & Workflow Compliance
Disclaimer: This article is for informational purposes only. Rigging heavy camera equipment involves inherent risks. Always consult the manufacturer's specific load ratings for your equipment and perform regular safety inspections. If you have pre-existing wrist or back conditions, consult a medical professional regarding the biomechanical stress of heavy rig operation.
