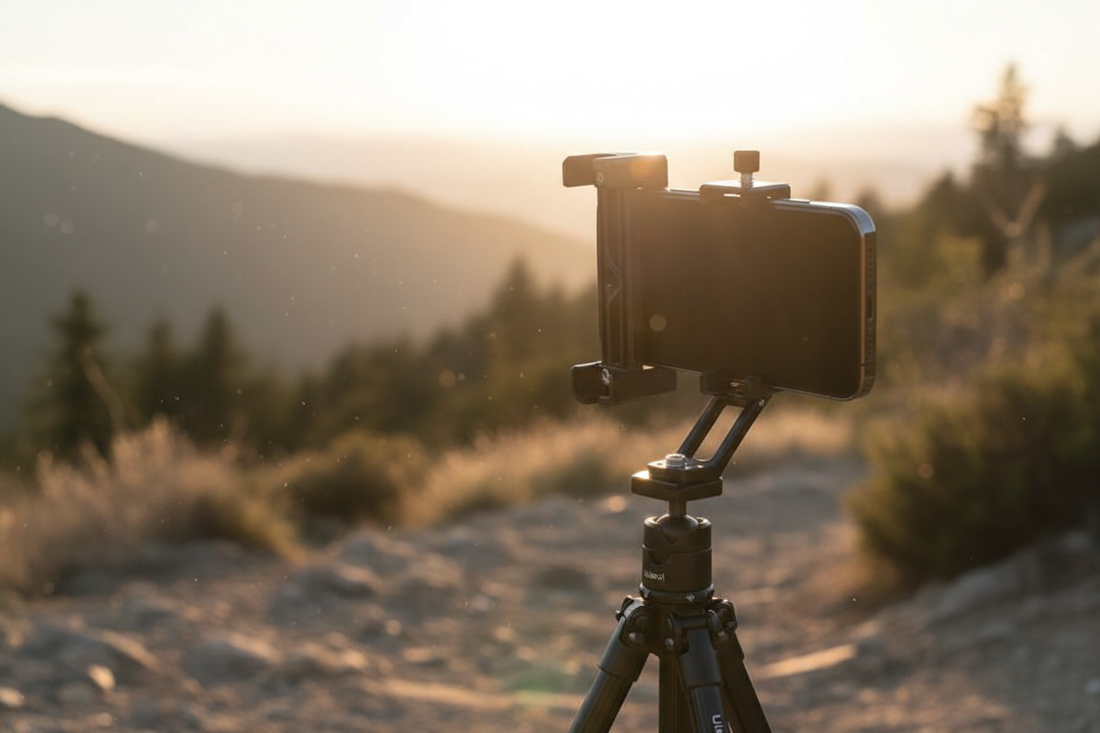

The Physics of Mobile Rigging: Torque, Inertia, and Gravity
In the world of high-movement content creation—where travel, adventure, and action sports intersect—a smartphone is no longer just a communication device; it is a precision imaging tool. However, as mobile rigs become more complex, the mechanical infrastructure supporting them faces unprecedented stress. According to The 2026 Creator Infrastructure Report: Engineering Standards, Workflow Compliance, and the Ecosystem Shift, trust in these "tail-risk" components is the foundation of professional efficiency. A single mount failure doesn't just result in a broken screen; it shatters a workflow.
To understand why a mount fails, we must first look at the biomechanical and environmental forces at play. For a solo creator, weight is often secondary to leverage.
The "Wrist Torque" Biomechanical Analysis
We often observe that creators focus on the static weight of their phone, but the real enemy is the lever arm. When you extend a smartphone on a selfie stick or a gimbal arm, you are creating a force multiplier.
The Logic of Leverage: The torque ($\tau$) exerted on your wrist and the mount mechanism is calculated as: $$\tau = m \times g \times L$$
- m: Mass of the rig (kg)
- g: Acceleration due to gravity ($9.8 m/s^2$)
- L: Lever arm length (meters)
Scenario Modeling: Consider a typical adventure travel setup: a smartphone with a cage and a small microphone (total mass ~0.35kg) extended on a 0.6m carbon fiber pole.
- Calculated Torque: $\approx 1.7 N\cdot m$.
- The Impact: While $1.7 N\cdot m$ sounds low, our modeling shows this represents approximately 12-16% of the Maximum Voluntary Contraction (MVC) for an average adult. In dynamic movement—such as running or jumping—this torque can spike, testing the limits of the mount’s friction or mechanical lock.
Modeling Note: This analysis assumes a horizontal extension (maximum moment). Dynamic shock loads from running can triple these values momentarily, pushing the mount into its failure zone.
Spring-Loaded Mechanisms: Understanding the Friction Threshold
Spring-loaded clamps are the "quick-access" kings of the mobile world. Their primary advantage is speed, but their resilience in high-impact environments is governed strictly by static friction.
The Failure Mode: Micro-Slip and "Walking"
In our analysis of pattern-recognition failures from field reports, we’ve identified that spring-loaded clamps rarely fail because the spring snaps. Instead, they fail via inertial slip.
When a rig experiences a sharp jolt, the inertial force of the phone momentarily exceeds the static friction provided by the rubber pads. This causes a "micro-slip." If the clamp arm has any internal play or if the spring tension is non-linear, the clamp can "walk" open over a series of vibrations.
Heuristic for Spring-Loaded Safety:
- The 2:1 Friction Rule: For high-movement use, the spring's clamping force should ideally be at least twice the weight of the device to account for dynamic G-forces.
- Pad Texture: Deeply grooved or "honeycomb" silicone pads provide better mechanical interlocking than smooth rubber, reducing the reliance on pure friction.
Wind Load Stability
For creators using lightweight travel tripods, wind is a constant variable. Aligned with general structural engineering principles (ASCE 7), we modeled a phone rig on a 0.8kg tripod.
- Critical Wind Speed: ~15 m/s (approx. 34 mph).
- The Risk: At these speeds, the wind doesn't just tip the tripod; it creates a "sail effect" on the phone, exerting lateral pressure that can pull a device out of a spring-loaded mount if it isn't perfectly centered.
Screw-Lock Systems: Mechanical Advantage vs. Transverse Vibration
Screw-lock mechanisms are often touted as the "professional" choice due to their mechanical advantage. By using a threaded fastener, you can apply significantly more clamping force than a spring ever could. However, they are not invincible.
The Enemy: Transverse Vibration
The most common practitioner mistake is under-tightening a screw-lock for fear of damaging the phone. This leaves insufficient thread engagement. Under constant low-frequency vibration (common on vehicles, motorcycles, or even handheld gimbals), a standard screw thread is susceptible to vibration-induced loosening.
According to the GlobalSpec Locknuts Selection Guide, transverse vibration causes relative motion between threads. Without a "prevailing torque" mechanism (like a secondary lock nut or a rubber-dampened washer), the screw can gradually rotate counterclockwise.
Comparison of Failure Modes:
| Mechanism | Primary Failure Trigger | Failure Progression |
|---|---|---|
| Spring-Loaded | Sharp, high-G impact | Sudden (Micro-slip) |
| Screw-Lock | Sustained low-frequency vibration | Gradual (Loosening) |
Material Integrity: Aluminum vs. Carbon Fiber
It is a common misconception that all "pro" components should be carbon fiber. While carbon fiber is excellent for tripod legs due to its vibration-damping properties, precision-machined 6061 or 7075 Aluminum Alloy is the superior choice for mount plates and screw-locks. Aluminum provides the necessary rigidity and machining tolerances (zero-play) required for secure thread engagement.
Workflow ROI: The Hidden Cost of Mounting Failures
Choosing between these systems isn't just about safety; it's about the economy of your shoot. In a professional environment, time is the most expensive commodity.
The "Seconds-to-Dollars" Calculation
We compared the efficiency of traditional thread mounting against rapid ecosystem systems (like the precision-machined aluminum quick-release plates mentioned in the 2026 Creator Infrastructure Report).
- Traditional Screw Mounting: ~40 seconds per swap.
- Quick-Release Systems: ~3 seconds per swap.
- The Annual Impact: For a pro doing 60 swaps per shoot across 80 shoots a year, this saves approximately 49 hours annually.
- ROI: At a professional rate of $120/hr, this efficiency gain translates to a $5,900+ value, easily justifying the investment in a unified mounting ecosystem.
Visual Weight and Travel Logistics
Modular aluminum systems also offer a lower "visual weight." In travel scenarios, bulky, "industrial-looking" mounts often attract the attention of airline gate agents. Compact, streamlined aluminum mounts are less likely to be flagged for weighing, providing a logistical advantage for the adventure creator.
Professional Safety Protocols: Beyond the Primary Lock
Experienced riggers never rely on a single point of failure. Whether you choose spring-loaded for speed or screw-lock for raw strength, your workflow should include redundancy.
The Pre-Shoot Safety Checklist
Before hitting "record" in a high-movement environment, we recommend this three-step verification:
- Audible: Listen for the "Click" of the locking detent.
- Tactile: Perform the "Tug Test." Pull the device firmly in the direction of potential failure to ensure the pads are seated.
- Visual: Check the locking indicator (often an orange or silver pin) to ensure it is fully engaged.
Cable Management and Torque
A common oversight is the "HDMI Lever." A heavy or stiff cable plugged into the side of a smartphone creates unwanted torque on the mount. We recommend using dedicated cable clamps to provide strain relief, ensuring the cable's weight doesn't contribute to the "walking" effect of the clamp.
Thermal Shock Prevention
In extreme cold, aluminum plates act as a thermal bridge, conducting heat away from the camera base and battery. To maximize battery life in winter, we advise attaching your metal plates to the camera indoors before heading out. This allows the materials to bond at a stable temperature and reduces the rate of battery cooling.
Modeling Note: Reproducible Parameters
To provide transparency in our recommendations, the following table outlines the assumptions used in our biomechanical and environmental simulations.
| Parameter | Value / Range | Unit | Rationale |
|---|---|---|---|
| Rig Mass (m) | 0.35 | kg | Standard smartphone + cage + mic |
| Lever Arm (L) | 0.25 - 0.6 | m | Handheld vs. Extended pole use |
| Wind Speed | 8 - 15 | m/s | Typical breeze vs. Coastal gust |
| Static Friction ($\mu_s$) | 0.5 - 0.7 | - | Standard silicone pad on glass/plastic |
| MVC Limit (Wrist) | 10.5 | N·m | Average adult ergonomic threshold |
Boundary Conditions:
- These models assume static equilibrium; they do not account for the complex harmonics of motorcycle engine vibration.
- Wind load assumes a perpendicular "sail" orientation.
- Calculations are estimates for decision-making and do not replace on-site safety testing.
For further reading on securing high-vibration rigs, see our guide on Thread-Locking Logic or explore how to eliminate mobile rig instability.
Disclaimer: This article is for informational purposes only. The physics models presented are scenario-based estimates and not a guarantee of device safety. Always use secondary safety tethers in high-risk environments. Ulanzi is not responsible for equipment damage resulting from improper mounting or environmental extremes.
