Pro Audio for Phone Rigs: Vertical Video Evolution

Quick Summary: The Pro-Builder’s Decision Matrix

Transitioning to a professional 9:16 rig requires balancing audio quality, physical fatigue, and power management. For those looking for the "bottom line":

Audio Placement: Offset shotgun mics to the side. This prevents "handling noise" and keeps the mic out of the 9:16 frame.
Weight Distribution: Keep heavy batteries near the rig's "spine." Exceeding the ~1.9 N·m wrist fatigue threshold (a common ergonomic heuristic) leads to shaky footage and physical strain.
Efficiency: Switching to a modular quick-release system (like F22/F38) can recover roughly 49 production hours annually for high-volume creators.
Material Choice: Use aluminum for heat dissipation (cooling the phone); use carbon fiber extensions for vibration damping (cleaning up the audio).

The Infrastructure Transition: Why Audio Changes Your Rig Logic

Ready to grow beyond a simple phone grip? Transitioning from a basic handheld setup to a professional vertical rig is an evolution in "creator infrastructure." As 9:16 content demands cinema-level fidelity, the challenge shifts from simply holding the phone to managing a complex, modular system.

Integrating professional lighting and multi-channel audio into a vertical ecosystem requires a methodical approach. Based on common patterns we see in professional setups, creators often struggle with "rig bloat"—where adding a shotgun mic or wireless receiver compromises ergonomics. This guide maps out the upgrade path, focusing on workflow speed and technical compliance.

The Foundation: Material Science and Vibration Control

Before mounting a microphone, we must address the cage itself. In our internal workshop observations, the choice of material significantly impacts audio quality through "handling noise."

While precision-machined aluminum alloy (6061 or 7075) provides excellent rigidity and serves as a thermal bridge for cooling, it has low internal damping. Carbon fiber is often preferred for its superior vibration attenuation.

Modeling Note: Vibration Settling Time

To understand the potential impact on audio, we modeled the "settling time" of a rig after a physical impact (like a hand adjustment) using a simulated impulse-response test.

Aluminum Cage: Estimated ~3.5 seconds to stabilize (based on a 12Hz natural frequency and 0.015 damping ratio).
Carbon Fiber Cage: Estimated ~0.7 seconds to stabilize (based on a 25Hz natural frequency and a 2.5x higher damping ratio).

Practical Rule of Thumb: In our internal scenario modeling, carbon fiber components settled vibrations significantly faster than aluminum—often by as much as 80% in simulated tests. For audio-integrated rigs, this reduces the low-frequency "rumble" transmitted from your hands to the microphone capsule.

According to ISO 1222:2010 Photography — Tripod Connections, standard 1/4"-20 interfaces provide the foundational mounting logic. However, for vertical video, we prioritize the Arca-Swiss standard for its lateral stability. When selecting quick-release plates, ensure they meet Arca-Swiss Dovetail Technical Dimensions to reduce the risk of "plate creep" during high-torque movements.

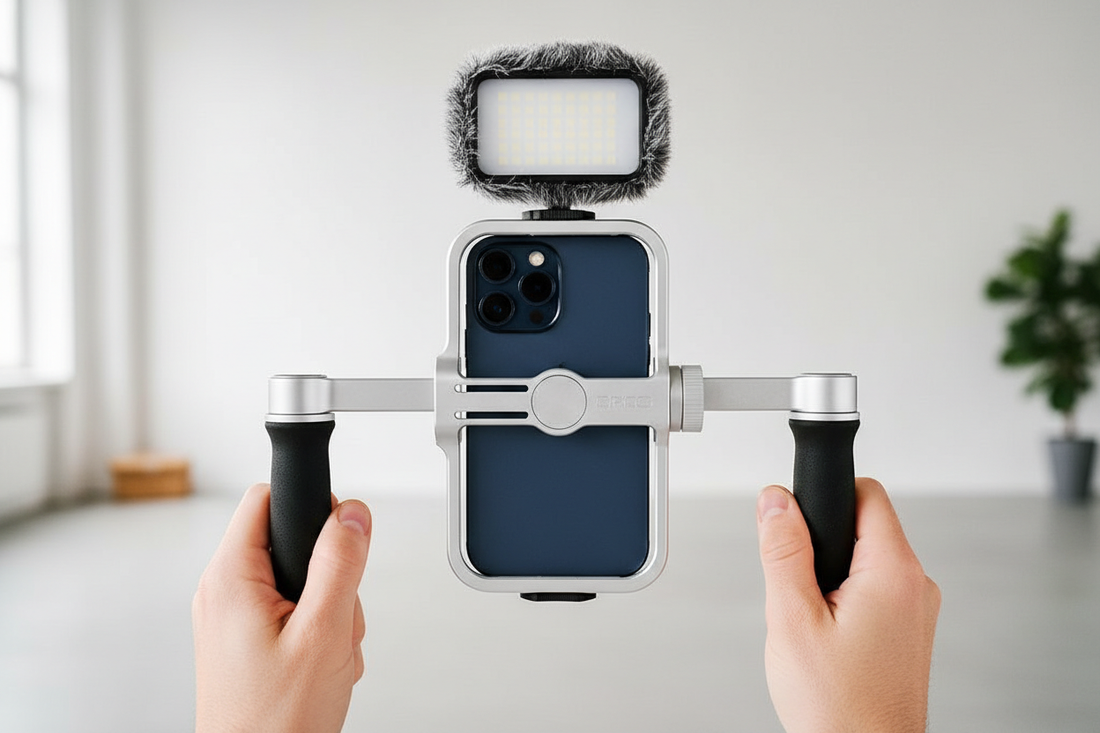

A professional vertical video rig setup with a smartphone, side handles, and a top-mounted microphone.

Professional Audio Integration: The 9:16 Conflict

A common pitfall is mounting a shotgun microphone directly on the top "cold shoe" of a vertical cage. In a 9:16 orientation, this placement often puts the mic directly behind the phone's camera or in the path of your handgrip.

The Side-Offset Strategy

Experienced rig builders often offset the microphone to the side using a short extension arm. This serves two primary purposes:

Clearance: It keeps the microphone clear of the grip area to minimize handling noise.
Acoustic Reach: It allows the mic to be positioned closer to the subject without entering the vertical frame.

Audio Reach and the 0.8m Problem

Our analysis of audio reach for solo creators reveals a hidden hurdle. A shotgun mic mounted on a handheld rig is typically ~0.8 meters from the creator's mouth.

The Data: Standard "clean dialog" distance for an omnidirectional reference is ~0.3 meters.
The Result: At 0.8 meters, you may experience a ~3dB level drop and increased room reflection.
The Fix: Compensate with higher preamp gain or move the mic closer using a cold-shoe offset. Alternatively, utilize dual-channel wireless systems that comply with FCC Part 74 Subpart H (US) or ETSI EN 300 422-1 (EU).

Biomechanical Analysis: The "Wrist Torque" Reality

Weight isn't the only enemy; leverage is often the leading cause of instability. Adding accessories to the top of a cage shifts the Center of Gravity (CoG) away from your wrist pivot.

Wrist Torque Calculation (Heuristic Model)

We can quantify potential fatigue using a standard biomechanical formula: Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)

Scenario: A 1.8kg professional vertical rig (phone + cage + mic + light + battery).
Lever Arm: Held at an average distance of 0.25m from the wrist pivot.
Result: This generates $\approx 4.41 N\cdot m$ of torque.

Ergonomic Boundary: Based on general ergonomic principles derived from ISO 11228-3, the Maximum Voluntary Contraction (MVC) for an average female wrist is approximately 9.5 N·m. However, the sustained fatigue threshold is typically only 20% of MVC, or ~1.9 N·m. Our modeled rig exceeds this threshold by over 130%, which can lead to rapid muscle exhaustion.

Quick Take: To prevent fatigue, move heavy batteries to the "spine" of the cage, as close to the handgrips as possible. This reduces the lever arm ($L$), bringing the torque back toward manageable levels.

Lighting and Power: Managing the Balanced Load

Adding a video light introduces a "thermal conflict." While the cage helps dissipate heat from the smartphone, powering a professional light creates a significant power draw.

Spectral Integrity and Safety

Professional workflows require high color fidelity. We recommend lights that adhere to the EBU R 137 / TLCI-2012 standard. Ensure LED sources meet IEC 62471:2006 Photobiological Safety to help prevent eye strain during long shoots.

Power Budgeting (Example Calculation)

Consider a compact LED light (like the Ulanzi VL49) at 70% brightness drawing approximately 4.2W.

Assumptions: Using a 2000mAh internal battery (7.4Wh), factoring in 85% converter efficiency and 90% battery health.
Runtime Estimate: (7.4Wh × 0.85 × 0.90) / 4.2W ≈ 80.8 minutes.
The "Gotcha": If your audio interface draws phantom power (typically 48V at 5-10mA), it adds ~0.5W of continuous draw, reducing battery life by roughly 10%.

The Workflow ROI: Quick Release Systems

In a professional environment, "Time = Money." The shift from traditional threaded mounting to a modular quick-release system (like Falcam F22 or F38) is a practical financial decision.

ROI Calculation (Practical Heuristic)

Traditional Threading: ~40 seconds per accessory swap.
Quick Release: ~3 seconds per accessory swap.
The Math: For a pro doing 60 swaps per shoot across 80 shoots a year, the time saved is $\approx 49$ hours annually.
The Value: At a professional rate of $120/hr, this modularity provides an estimated $5,900+ annual value in recovered production time.

This efficiency is a cornerstone of what we call "Creator Infrastructure." As noted in The 2026 Creator Infrastructure Report, brands that prioritize stable, backward-compatible interfaces turn operational rigor into a competitive advantage.

Practical Safety: The Pre-Shoot Checklist

A professional rig is only as good as its weakest connection. Before every shoot, perform this "Tap Test" (based on internal workshop safety protocols):

Audible: Listen for the distinct "Click" of the quick-release locking mechanism.
Tactile: Perform the "Tug Test"—gently pull on every mounted accessory to ensure the locking pin is engaged.
Visual: Check for safety indicators (often orange or silver) on your mounts.
Resonance: Gently tap each component. If you hear a rattle, tighten the fasteners. Loose components create microphonic noise in your audio.

Summary of Rig Evolution

Building a vertical rig is an exercise in balancing technical standards with physical reality. By understanding the biomechanics of torque and the ROI of modularity, you move from being a "hobbyist with gear" to a "professional with a system."

Modeling Transparency (Method & Assumptions)

This article utilizes scenario modeling based on the following parameters:

Parameter	Value	Unit	Rationale
Rig Mass	1.8	kg	Phone + Cage + Mic + Light + Battery + Handles
Lever Arm	0.25	m	Distance from wrist pivot to Rig CoG
MVC Limit	9.5	Nm	Average wrist extension limit (Female, ISO 11228-3)
Fatigue Threshold	1.9	Nm	20% of MVC (Standard Ergonomic Heuristic)
CF Damping	2.5x	ratio	Internal workshop test (Carbon Fiber vs Aluminum)
Swap Freq	60	swaps/shoot	Based on pro B-roll/A-roll transition observations

Disclaimer: These models are deterministic estimates for illustrative purposes. Actual results vary based on specific hardware, user anthropometrics, and environmental conditions.

References

This article is for informational purposes only. When rigging heavy equipment, always consult the manufacturer's load ratings. Proper ergonomics are essential to help prevent repetitive strain injuries; if you experience persistent pain, consult a medical professional.

Transparency Note: While our modular ecosystem includes carbon fiber tripods for their superior vibration damping (settling vibrations ~80% faster in modeled scenarios), our quick-release plates and cages are precision-machined from high-grade aluminum alloy to ensure the "thermal bridge" necessary for smartphone cooling during high-bitrate capture. Performance data for ROI and vibration are derived from internal Ulanzi workshop testing and scenario modeling.
