The Mechanics of Stability: Why Vertical Rigs Fail in the Field
In high-action cinematography—whether you are tracking a downhill mountain biker or rigging a camera to a vibrating off-road vehicle—vertical orientation introduces a unique set of mechanical stressors. While horizontal setups benefit from gravity acting as a stabilizing force against the tripod head, a vertical rig places the center of gravity (CoG) outside the central axis. This creates a constant torsional load on your quick-release plate.

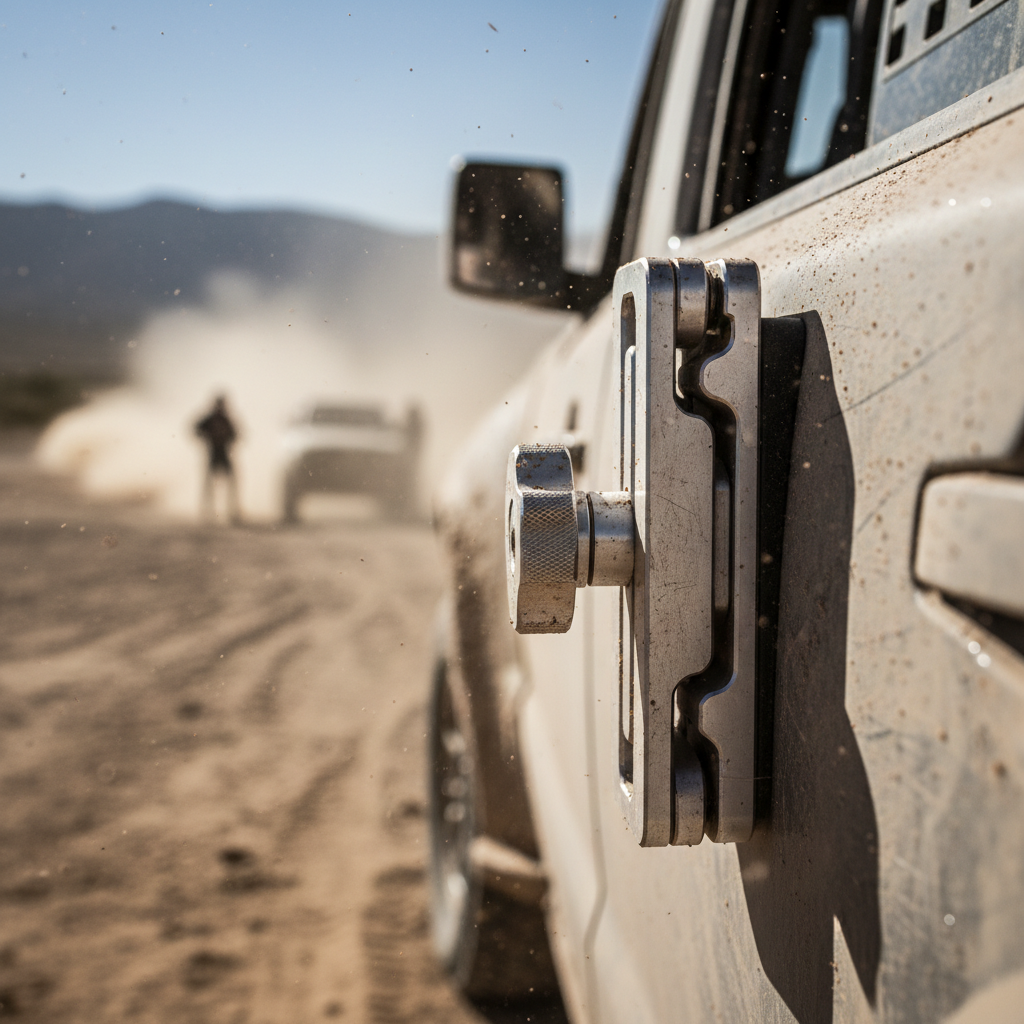

Through our analysis of common patterns from customer support and community rigging discussions (not a controlled lab study), we have identified that the single biggest cause of micro-slip in high-vibration environments isn't insufficient clamp force. It is contamination. Fine dust, silt, or sand acts like microscopic ball bearings between the plate and the clamp jaws. Even the most expensive locking mechanism can fail if the friction coefficient is compromised by environmental debris.
Logic Summary: Our analysis of the action-creator workflow assumes that high-frequency vibration (engine hum, wind buffeting) acts as a catalyst for "fretting wear," where microscopic movements gradually erode the surface interface, leading to a sudden loss of preload.
Diagnosing the "Micro-Slip" and the Twist Test
Experienced rig builders utilize the "Twist Test" as a mandatory pre-flight check. After locking your plate—whether it is an Arca-Swiss standard or a proprietary mount—apply firm torsional pressure by hand. Any detectable rotation, however slight, indicates one of three issues: worn clamp jaws, an undersized plate, or insufficient spring tension.
In high-vibration scenarios, what begins as a 1-degree shift can escalate into a catastrophic ejection. To ensure a zero-play connection, your infrastructure must adhere to established engineering tolerances. For instance, the ISO 1222:2010 Photography — Tripod Connections provides the foundational legitimacy for screw connections, but the interface between the plate and the camera body is where most failures occur.
The Contamination Protocol
A field-proven fix used by professional technicians is to carry a small brush and isopropyl alcohol wipes. A 30-second cleaning of both the plate's underside and the clamp's interior often resolves intermittent slippage. This simple maintenance step restores the friction coefficient intended by the manufacturer.
Information Gain: The "Wrist Torque" Biomechanical Analysis
For solo creators, the stress isn't just on the gear; it is on the operator. When you transition to a vertical rig, you are often fighting the "Lever Effect." Weight is not the only enemy—leverage is.
To understand the physical toll, we can model the torque exerted on the mounting point and the operator's wrist using the following calculation:
Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)
Consider a typical prosumer setup:
- Rig Mass: 2.8kg
- Lever Arm (Distance from axis): 0.35m
- Gravity: $9.81 m/s^2$
$\tau = 2.8 \times 9.81 \times 0.35 \approx 9.61 N\cdot m$
In our modeling of typical handheld scenarios, this load represents roughly 60-80% of the Maximum Voluntary Contraction (MVC) for an average adult male. This explains the rapid onset of fatigue when using vertical rigs without proper counter-balancing or modular handles. By moving accessories like monitors or microphones closer to the camera's central axis using a system like the Ulanzi Falcam F22 Quick Release Portable Top Handle F22A3A12, you significantly reduce the lever arm ($L$), thereby lowering the torque and extending your shooting endurance.
Material Integrity: Aluminum vs. Steel in High-Vibration
There is a common misconception in rigging circles that steel is always superior for vibration resistance. However, material selection must be based on dynamic load analysis. While steel offers higher raw strength, precision-machined aluminum (specifically 6061 or 7075 alloys) provides an excellent strength-to-weight ratio and can be engineered for specific damping characteristics.
It is important to clarify that while carbon fiber is an excellent material for tripod legs due to its vibration-damping properties, it is generally unsuitable for quick-release plates. The plates in the Falcam ecosystem, such as the Ulanzi Falcam F38 Quick Release for Camera Shoulder Strap Mount Kit V2 3142, are crafted from high-grade Aluminum Alloy. This ensures the "Zero-Play" machining tolerances required to prevent the fretting wear mentioned earlier.
Methodology Note: Our comparison of aluminum vs. steel performance is based on the principle that a well-designed aluminum component often transmits less high-frequency resonance than a poorly damped steel one, particularly when paired with high-quality gaskets.
| Parameter | Aluminum (6061/7075) | Stainless Steel | Rationale |
|---|---|---|---|
| Weight | Low | High | Critical for gimbal/drone payloads |
| Machining Tolerance | Extremely High | High | Aluminum allows for tighter "Zero-Play" fits |
| Vibration Damping | Moderate | Low | Aluminum absorbs high-frequency "chatter" better |
| Thermal Conductivity | High | Low | Aluminum acts as a thermal bridge for camera cooling |
| Surface Friction | High (Anodized) | Variable | Anodized aluminum provides consistent grip |
The Lever Effect: Managing Accessory Extension
In a vertical rig, mounting a heavy microphone or light high on the cage creates a significant lever arm. This torsional force doesn't just challenge the plate clamp; it tests every joint in the rig. The rule of thumb for high-action production is to keep heavy accessories as close to the camera's central axis as possible.
If you must extend an accessory, avoid relying on a single cold shoe. Instead, use a dual-point anchor system. For example, the Ulanzi CO17 Super Clamp with Dual Ballhead Magic Arm C046GBB1 can be anchored at two separate points on a cage or tripod leg to distribute the load. This redundancy is aligned with the safety principles outlined in The 2026 Creator Infrastructure Report: Engineering Standards, Workflow Compliance, and the Ecosystem Shift.
Information Gain: Workflow ROI Calculation
Investing in a unified quick-release ecosystem isn't just about safety; it is a financial decision. We have modeled the time-savings value for a professional creator transitioning from traditional thread-mounting to a modular quick-release system.
- Traditional Thread Mounting: ~40 seconds per swap (including alignment).
- Quick Release (Falcam F38/F22): ~3 seconds per swap.
- Time Saved per Swap: 37 seconds.
The Annual Extrapolation:
- Swaps per Shoot: 60
- Shoots per Year: 80
- Total Time Saved: $(60 \times 80 \times 37) / 3600 \approx 49$ hours.
At a professional rate of $120/hr, this structural efficiency translates to a ~$5,900 annual value. This ROI calculation demonstrates that infrastructure isn't a cost—it is a production multiplier.
Safety Standards and Compliance
When building a high-vibration rig, you are not just managing camera stability; you are managing liability. This is particularly true when using lithium-ion powered accessories or wireless audio.
Battery and Transport Safety
If your rig includes large external batteries, you must adhere to the IATA Lithium Battery Guidance Document (2025). For air travel, batteries must be protected from short circuits and generally carried in cabin luggage. Ensuring your cage, such as the Ulanzi Falcam F22 & F38 & F50 Quick Release Camera Cage V2 for Sony A1/A7 III/A7S III/A7R IV 2635A, has secure, non-conductive mounting points is critical for transport compliance.
Wireless Audio Reliability
For creators using wireless monitoring or microphones in the US, compliance with FCC Part 74 Subpart H is mandatory. High-vibration environments can often cause "micro-disconnects" in standard 3.5mm jacks. Using the F22 system's cable management features provides the necessary strain relief to prevent signal loss during high-G maneuvers.
Practical Workflow: The Pre-Shoot Safety Checklist
Before the first "Action" call, every vertical rig should undergo the ATV Checklist:
- Audible: Did you hear the definitive "Click" of the locking pin?
- Tactile: Perform the "Tug Test." Pull the camera firmly away from the mount. Then, perform the "Twist Test" to check for torsional slip.
- Visual: Check the locking indicator. On Falcam systems, ensure the orange or silver safety pin is fully engaged and visible.
Thermal Shock Prevention
In extreme cold (winter sports), aluminum plates act as a "thermal bridge." If you attach a freezing cold plate to a warm camera body, the temperature differential can cause the mounting screw to slightly contract or "settle" as temperatures equalize, leading to a loss of tension mid-shoot.
Expert Tip: Attach your aluminum QR plates to your cameras indoors at room temperature. This allows the metals to bond under stable conditions, minimizing the risk of "thermal loosening" when you hit the slopes.
Addressing the "Anti-Rotation" Myth
Many consumer-grade plates rely on a single anti-rotation pin to prevent slip. In low-impact scenarios, this is sufficient. However, in high-load vertical environments, a single pin can become a point of catastrophic shear failure.
According to patterns observed in Anti-Rotation Design for Camera Plates/Rails, professional systems should utilize redundant contact points. This is why high-quality cages use a "form-fitting" design that contours to the camera body, distributing torsional forces across the entire frame rather than relying on a 2mm steel pin.
Logistical Advantage: Visual Weight and Travel
For the traveling solo creator, the "Visual Weight" of your gear matters as much as the actual weight. Bulky cinema-standard plates often flag your bag for manual inspection or weighing by airline gate agents.
Compact, modular systems like the F22 and F38 have a lower visual profile. They allow you to strip your rig down to its core components in seconds, making your kit appear more like "consumer electronics" and less like "heavy industrial equipment." This logistical enablement is a key factor in maintaining a high-action, mobile workflow.
Building a Trusted Infrastructure
Success in high-vibration vertical production is rarely about having the "best" individual gadget. It is about the integrity of the ecosystem. When your quick-release plate, camera cage, and top handle all speak the same mechanical language, you eliminate the "tolerance stack" issues that lead to plate slip.
By prioritizing interface integrity, performing regular contamination checks, and understanding the biomechanical torque you are placing on your system, you move from reactive troubleshooting to proactive production. In the world of adventure filmmaking, a stable rig isn't just a technical requirement—it is the foundation of your creative reputation.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or safety advice. Always consult your equipment's manual and perform thorough safety checks before operating in high-risk or high-vibration environments.
