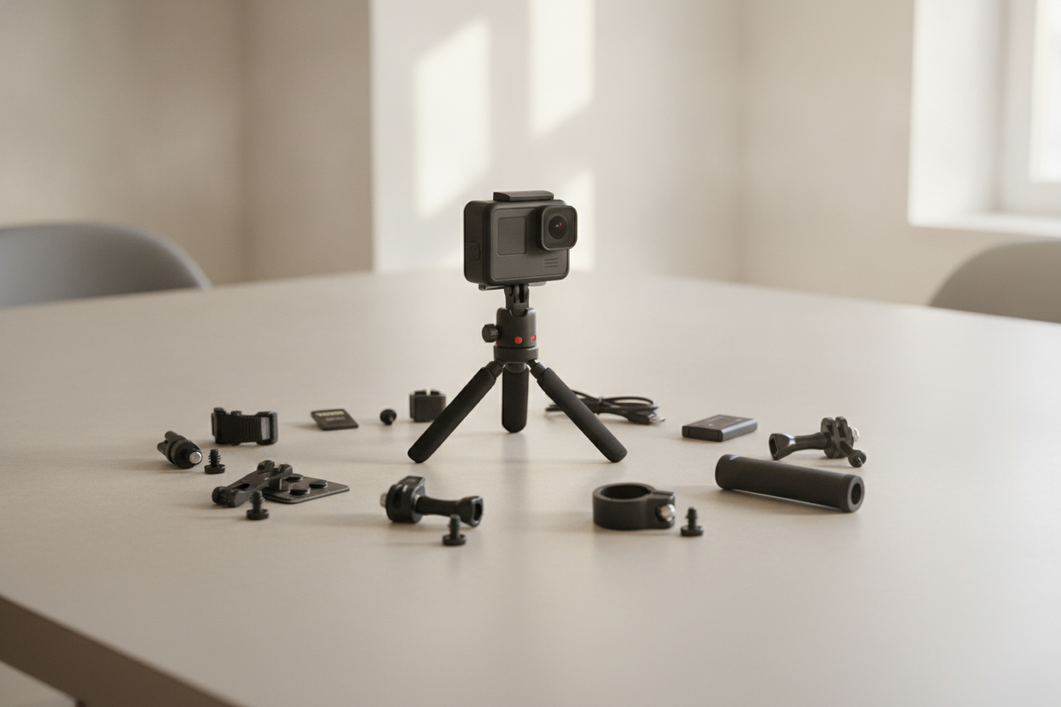

Mount fit comes first when choosing an action camera mini tripod. Confirm the camera-side connection, tripod-side interface, any required adapter, and the orientation you plan to film in. Then evaluate the complete rig—not just the bare camera—for microphone or light clearance, balance, stability, travel size, and handheld use. A compact tripod can work as tabletop support or a grip, but the category name alone does not prove compatibility or safe support for your exact setup.
Choose an Action Camera Mini Tripod by Mount First
The first buying check is whether the tripod connects to your camera in the position you need while leaving the lens, controls, doors, and ports usable. If the current camera or adapter documentation does not confirm the connection, treat the setup as unverified instead of assuming it will fit.
Match the Camera Connection to the Tripod
Compare these five parts of the connection before adding a tripod to your cart:
- Camera-side mount: Identify the connection built into the camera or its cage, case, or mounting frame.
- Tripod-side interface: Check what the mini tripod head or plate actually accepts.
- Adapter requirement: Confirm whether you need a camera-specific adapter, plate, cage, or other link.
- Orientation: Decide whether you need horizontal, vertical, or quick switching between the two.
- Access: Make sure the assembled connection does not block the lens, screen, buttons, battery door, or charging port.
Do not infer fit from the phrase "action-camera tripod." A tripod that connects through one adapter may not connect to another camera or preserve the same orientation. For mounting workflow ideas, review action camera mount options, but use the current camera and tripod specifications for the final fit decision. An official mini-tripod product page can illustrate the kind of model-specific interface information to check; it does not establish universal compatibility.
Check Orientation and Access Before Filming
Attach the camera or the exact camera adapter, then inspect the setup from the front, side, and rear. Confirm that the lens view stays clear in the intended orientation, and operate the record button, screen, battery door, and charging connection without removing the tripod.
This check matters when the camera rotates, an adapter changes the mounting height, or a cable exits close to the tripod head. If switching from horizontal to vertical moves the lens off-center or makes the controls inaccessible, the connection may be technically possible but unsuitable for your workflow.
Plan Clearance for Microphones, Lights, and Adapters
An action camera mini tripod should be evaluated with every accessory installed. Microphones, lights, cables, and adapters can interfere with the lens, controls, head, or legs and may shift the rig's balance, so clearance and balance are separate checks.
| Accessory setup | Clearance check | Buying implication |
|---|---|---|
| Bare camera | Inspect lens view, controls, doors, and the tripod head. | Useful as a baseline, but not enough if you normally film with accessories. |
| Camera plus microphone | Check the mic body, cable path, record controls, and nearby head or leg interference. | Verify the actual microphone and cable arrangement rather than assuming all mics fit. |
| Camera plus light | Inspect the light's position, lens shadow or obstruction, control access, and front-to-back balance. | A light that clears the lens can still make the rig awkward or tilted. |
| Camera plus adapter | Check both connection points, orientation, raised height, and access to ports and doors. | Confirm the complete adapter chain in current specifications before purchase. |
Check Microphone and Light Clearance
Mount the exact microphone, light, cable, and adapter combination you expect to use. Check each of these points:
- Nothing enters the lens view.
- Buttons, the screen, doors, and ports remain usable.
- The accessories do not collide with the tripod head or legs.
- Cables are not forced into a sharp or impractical path.
There is no verified clearance number that applies to every action camera, microphone, light, and mini tripod combination. Use the physical arrangement as your reference. If you cannot assemble it before buying, compare current mechanical drawings or compatibility information from the relevant manufacturers rather than relying on a product category label. You can browse action camera accessories for possible components, but that collection is not proof that a particular accessory fits your camera and tripod together.
Recheck Balance With Every Added Accessory
After adding each accessory, check whether the complete rig stays level when the head is locked and whether the camera starts to tilt toward the microphone, light, or adapter. General center-of-gravity guidance in the Steadicam Resource Manual supports checking how added equipment changes balance; it is not a mini-tripod performance test.
Also check handling. A setup that stands level on a table may feel front-heavy as a grip or shift when you rotate it. If adding one component changes the tilt, hand position, or control access, reassess the arrangement instead of treating the bare-camera result as approval.
Prioritize Stability for the Surface and Shot
Stability depends on the complete rig, leg position, head angle, surface, extension, and environment. A mini tripod is easier to assess for a controlled tabletop or low-angle shot than for an uneven, windy, moving, or elevated setup, where the category alone cannot establish performance.
| Shooting condition | What to inspect | Decision cue |
|---|---|---|
| Level tabletop | Leg contact, head lock, camera angle, and accessory balance. | Proceed only if the exact rig sits level and controls remain accessible. |
| Low-angle floor shot | Leg spread, contact points, lens direction, and clearance around the ground. | Use when the legs and head hold the planned angle without unwanted tilt. |
| Uneven outdoor surface | Whether each leg has dependable contact and whether the rig rocks when touched lightly. | Reposition or choose another support if the surface prevents a stable footprint. |
| Moving or windy environment | Exposure to bumps, vibration, wind, people, and consequences of a tip-over. | Do not assume suitability; reduce the setup's exposure and use a more appropriate support or direct supervision. |
Match the Setup to the Shooting Surface
Start by identifying where the legs will actually sit, not where you hope to place them. On a table, check that the contact points are fully supported. For a low-angle shot, confirm that the legs do not press against the camera or accessories and that the lens remains aimed as planned.
Uneven ground calls for a more conservative decision because one short or poorly placed contact point can change the angle. Wind, movement, and elevated placement add conditions that a short indoor check cannot reproduce. Avoid treating a mini tripod as automatically suitable for those environments.
Test the Complete Rig Before a Hands-Off Shot
Use this sequence before relying on a hands-off shot:
- Assemble the exact camera, mount, adapter, microphone, light, cables, and other accessories.
- Position the legs and head on the intended surface and set the angle you will use.
- Inspect tilt, leg contact, head locking, lens view, and access to controls.
- Run a short stationary test while watching for movement or a change in angle.
- Follow the current product's recommended extension guidance and stop if the setup does not remain stable.
General audiovisual equipment guidance says to avoid extending a tripod beyond its recommended maximum height and to test stability before mounting heavier equipment; that is workflow guidance, not a load or wind rating for any particular mini tripod. Test stability before mounting heavier equipment, then verify the current product documentation before using a more demanding setup.
Balance Travel Size With Grip and Handoff Use
Travel suitability depends on the complete packed kit and the closed handheld form, not the tripod body by itself. Pack and hold the setup you will actually use, including the camera, adapter, accessories, cables, and protection, before deciding that a mini tripod is compact or comfortable enough.
Compare Folded Size With the Packed Kit
Put the tripod and the full camera rig into the bag, case, or carry setup you use for a day trip or travel day. Check whether the legs, head, cables, and accessories create a bulky shape, snag nearby items, or force you to remove components between shots.
Separate two questions: Will it fit? and Will it be convenient to swap? A tripod can fit inside a bag but still slow down filming if the camera, microphone, or light must be rearranged every time. If folded dimensions or total weight are not verified for the current product, use the assembled kit as the practical test instead of relying on an unavailable number. For category browsing, see compact travel tripods; confirm the current specifications before choosing one.
Check Whether Tripod Mode Can Become Grip Mode
When you want one tool for support and handheld filming, check:
- Closed-form comfort and whether your fingers can hold it without pressing controls.
- Hand placement and whether the camera stays in the desired horizontal or vertical orientation.
- Access to record, screen, charging, and other controls while holding the setup.
- Security during a handoff, including whether passing it to another person shifts the camera or accessory arrangement.
- Whether the microphone, light, cable, and adapter remain usable rather than becoming a snag or pressure point.
Do not treat a grip feature or closed shape as proof of comfortable handling for your rig. Test the complete setup in one hand and during a controlled handoff. A current action camera tripod option can be a starting point for product navigation, but check its exact fit, dimensions, and handling on the live product page against your camera and accessories.
Use a Final Fit Checklist Before You Buy
Use the checklist in order, and stop at any unanswered compatibility or specification question. The goal is not to find the smallest tripod first; it is to find the smallest setup that supports your intended connection, shot, carry, and handoff workflow.
- Identify the camera and orientation. Record the exact camera, case or cage, and whether you need horizontal, vertical, or both positions.
- Verify the mount or adapter. Match the camera-side connection, tripod-side interface, and any required adapter in current documentation. A 1/4-20 connection alone does not establish direct compatibility.
- Add the complete accessory rig. Include the microphone, light, adapter, cables, and protection used in practice—not a bare-camera approximation.
- Check clearance and balance. Confirm lens view, controls, doors, ports, cable paths, head clearance, leg clearance, tilt, and comfortable handling.
- Match the surface and shot. Recreate the tabletop, floor, or other intended position. Use more caution for uneven, windy, moving, or elevated conditions.
- Test carry and grip use. Pack the complete kit, hold it in its closed form, and perform a controlled handoff if that is part of your workflow.
- Verify current terms and specifications. Check dimensions, weight, interface details, extension guidance, returns, and warranty terms on the current product and store pages.
If you need a faster mounting workflow, quick-release action camera mounts are a navigation path to explore, not a universal fit guarantee. If any mount, clearance, balance, or current specification detail remains unclear, pause the purchase and verify it with the camera and tripod documentation.
FAQs
These FAQs cover fit and use questions that may affect the final buying decision.
Can I Use the Same Mini Tripod With Different Action Cameras?
Only if each camera works with the same connection chain, adapter arrangement, orientation, and accessory layout. Fit with one camera does not establish fit with another, so check the second camera's current documentation before swapping it into the setup.
Does a 1/4-20 Tripod Thread Fit Every Action Camera?
No. A 1/4-20 thread describes one part of a connection; the camera may still need a specific adapter or mounting frame. Verify the camera-side interface and final orientation.
Can I Use a Mini Tripod as a Grip While Recording?
Possibly, if the closed form, mount, complete-rig weight, controls, and accessory positions work in your hand. Hold the assembled setup in the intended orientation and perform a controlled handoff before recording.
How Do I Test a Mini Tripod Before Leaving an Action Camera Unattended?
Assemble the exact camera and accessories, place the tripod on the intended surface, inspect tilt and control access, and run a short stationary test. Do not treat that test as approval for wind, movement, elevated placement, or long unattended use; those conditions require product-specific evidence and more conservative handling.
