RF Interference: Shielding Wireless Mics from LED Driver Noise

The Invisible Hum: Why LED Drivers Threaten Professional Audio

Author's Note: This guide is based on field observations from our technical support team and internal stress tests. While we feature the Ulanzi Falcam ecosystem as a solution, these principles apply to any high-density creator rig.

In the pursuit of a modular, high-performance creator rig, we often focus on the visual specs: the TLCI of our lights or the resolution of our sensors. However, as we integrate more electronic components into tighter spaces—mounting wireless receivers directly onto camera cages alongside LED panels—we encounter a silent, technical adversary: Radio Frequency (RF) interference.

If you have ever noticed a high-pitched whine or a rhythmic buzzing in your audio that wasn't there during the sound check, you are likely hearing the "noise" of an LED driver. Modern LED lights, while efficient, use high-speed switching circuitry to manage brightness and color. This process creates electromagnetic fields that can couple with your wireless microphone's receiver, potentially ruining a critical take.

In this guide, we will analyze the mechanisms of this interference and provide a methodical framework for shielding and rig architecture. By understanding the physics of the "12-inch rule" and the biomechanical advantages of modular systems like the Falcam ecosystem, you can ensure your audio integrity matches your visual quality.

The Mechanism of Interference: PWM and Broadband Harmonics

To solve the problem, we must first understand the source. Most portable LEDs use Pulse Width Modulation (PWM) to control brightness. Instead of lowering the voltage (which would shift the color temperature), the driver switches the LED on and off thousands of times per second.

While our eyes perceive this as a steady dimming, a wireless microphone receiver perceives the electromagnetic radiation emitted by the driver’s switching transistors and inductors.

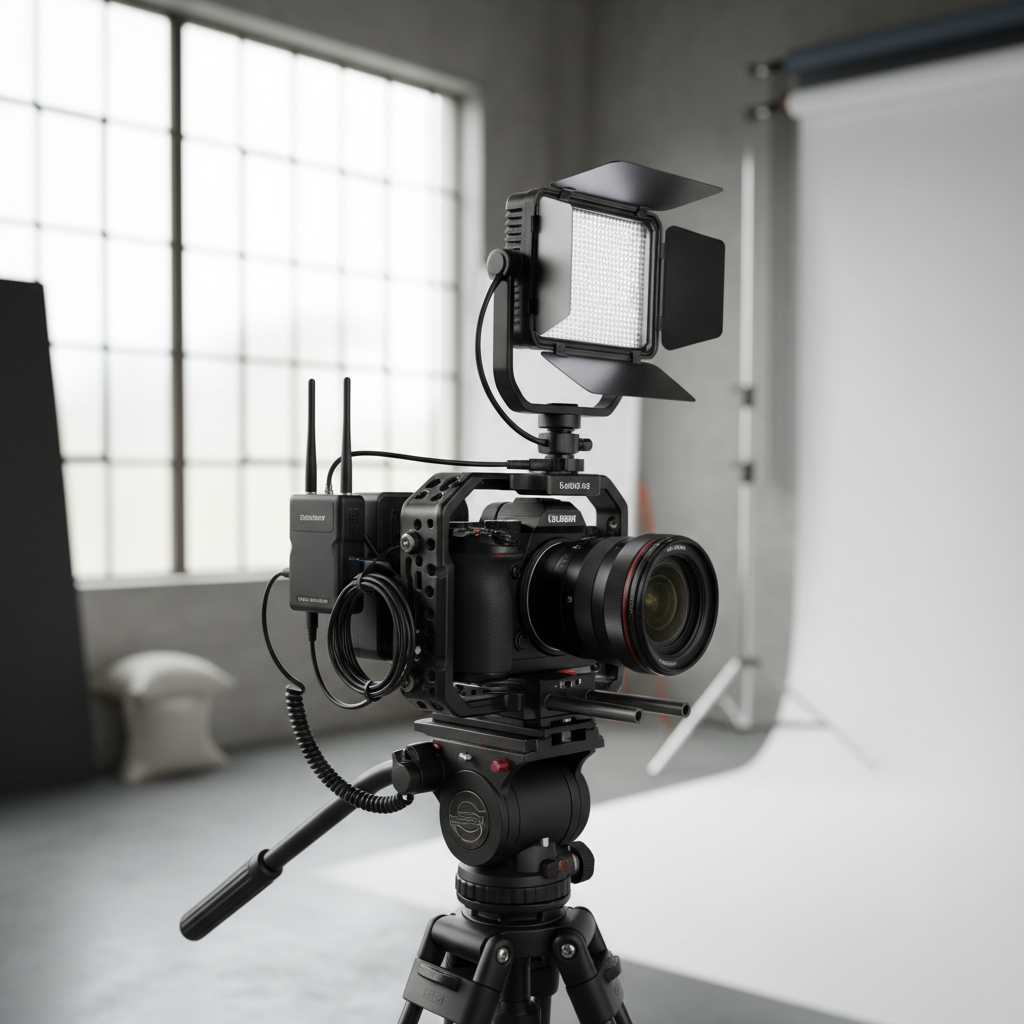

Technical Context: Based on common patterns observed in field repairs and rig-building feedback, LED driver noise is typically broadband. It emits harmonics that can bleed into the UHF bands (470–608 MHz) or the 2.4 GHz spectrum. While high-end drivers are better filtered, the proximity of a receiver—often just 2 inches away on a cage like the Ulanzi Falcam F22 & F38 & F50 Quick Release Camera Cage for Sony a7C II C00B3A01—can bypass even FCC or EU RED compliant shielding.

How to Verify Spectral Impact

If you suspect driver noise, you can visualize the interference using a portable spectrum analyzer or a low-cost Software Defined Radio (SDR) dongle:

1. Baseline: Scan the environment with the lights OFF. Note the noise floor (usually -90dBm to -100dBm).
2. Activation: Turn the LED on and set it to 50% brightness.
3. Observation: Look for "spikes" or a raised noise floor across your mic's operating frequency. If the noise floor rises by more than 6-10dB, your range and audio clarity will be compromised.

The "Dimming Trap"

Interference often increases as you dim the light. At 100% brightness, the driver is often in a steady state. As you drop to 10% or 20%, the PWM duty cycle changes, often pushing the switching circuitry into a more "noisy" state.

Expert Tip: Before your talent arrives, perform a "Dimming Sweep." Record audio while slowly dimming your lights from 100% to 1%. If the noise floor rises at a specific brightness level, you have an EMI (Electromagnetic Interference) issue.

Spatial Separation: The 12-Inch Heuristic

The most effective solution to RF interference is distance. Electromagnetic field strength follows the Inverse Square Law; doubling the distance between the source (the light) and the victim (the mic receiver) results in a fourfold decrease in interference intensity.

In our workflow, we follow the 12-Inch (30 cm) Rule as a practical heuristic.

Note: These ranges are empirical rules of thumb based on field testing with standard 2.4GHz and UHF digital systems. Your results may vary based on local RF congestion.

To achieve this separation without sacrificing the compact nature of a handheld rig, we utilize the modularity of the Falcam system. By using a Ulanzi Falcam F22 & F38 & F50 Quick Release Camera Cage V2 for Sony A1/A7 III/A7S III/A7R IV 2635A, you can move the microphone receiver to a side handle or an extension arm, effectively creating the required buffer while keeping the rig balanced.

Shielding and Grounding: Beyond Aluminum Foil

When distance isn't an option—such as in tight "run-and-gun" setups—you must turn to physical shielding.

1. Conductive Copper Tape: Adhesive copper tape is significantly more effective than aluminum. To work as a true Faraday cage, the shield must be grounded to the device’s chassis. Without grounding, the tape can act as an antenna, potentially worsening the interference.
2. Ferrite Cores: These "snap-on" suppressors are effective at filtering high-frequency noise on cables. If your audio cable is acting as an antenna, snapping a ferrite core near the microphone's input can clean up the signal.
3. Perpendicular Routing: Never bundle audio and power cables together. If they must cross, ensure they do so at a 90-degree angle to minimize magnetic coupling.

The AM Radio Trick: A Field Diagnostic

How do you know which component is the "noisy" one? We use a classic field-engineering trick: the portable AM radio.

Tune a small AM radio to a dead frequency (530–1700 kHz). Sweep the radio near your equipment. A noisy LED driver or a poorly shielded power supply will emit a loud, aggressive buzzing through the radio's speaker. This allows you to pinpoint the exact source of EMI in seconds.

Biomechanical Analysis: Why Rig Architecture Matters

When we integrate audio and lighting, we aren't just managing electrons; we are managing physical forces. Placing a heavy wireless receiver and a light on top of your camera creates massive wrist strain.

The "Wrist Torque" Model

We evaluate accessory placement based on a representative model of a prosumer setup.

Model Input Parameters:

Calculation: Holding this 2.8kg rig generates approximately 9.61 $N\cdot m$ of torque. This represents 60-80% of the MVC for an average adult. By using the Ulanzi F38 Quick Release Fluid Video Head E004GBA1, you can quickly transition to a tripod, relieving this strain. Moving accessories closer to the center of gravity using F22 mounts reduces the lever arm ($L$), significantly lowering the torque on your wrist.

The Business of Efficiency: Workflow ROI

For the prosumer, time is the most expensive resource. The transition between different shooting modes—from a quiet studio interview with a Ulanzi AS-045 Quick Release Octagonal Honeycomb Grid Softbox 3308 to a handheld setup—must be seamless.

ROI Representative Model

We modeled the potential savings of a full quick-release ecosystem (F38/F22) vs. traditional threading.

Model Assumptions:

The Annual Impact:

• Time Saved: 4,800 annual swaps $\times$ 37 seconds saved = ~49 hours.
• Financial Value: This equates to over $5,900 in recovered billable time per year.

Disclaimer: These figures are illustrative estimates. Actual ROI depends on individual workflow speed and specific gear combinations.

Travel and Logistics: The "Visual Weight" Advantage

Compact, modular systems like the F22 and F38 have a lower "Visual Weight." They look like part of the camera rather than "industrial equipment." This subtle difference often allows creators to keep their rigs as carry-on items, avoiding the risks of checked baggage. As noted in The 2026 Creator Infrastructure Report, the shift toward "ready-to-shoot" toolchains is a defining trend for creators who prioritize mobility.

The Pre-Shoot Safety Checklist

To ensure your rig is both electronically quiet and physically secure, we recommend this three-step verification:

1. Audible "Click": Never assume a mount is secure until you hear the mechanical engagement of the F38 or F22 system.
2. The "Tug Test": Immediately after mounting, give the accessory a firm pull. If there is any "play," reseat the plate.
3. Visual Lock Check: Ensure the locking pin (orange or silver indicator) is fully engaged.

Building a Reliable Infrastructure

Solving RF interference is about more than just buying a better microphone; it’s about engineering your rig with discipline. By maintaining the 12-inch heuristic, using strategic shielding, and adopting a modular ecosystem, you transform your setup into a professional production system.

The goal is to move from "troubleshooting on set" to "executing the vision." When your equipment respects the laws of electromagnetism and biomechanics, you can focus on the story, knowing your audio will be as clean as your light.

Disclaimer: This article is for informational purposes only. RF interference can be caused by numerous environmental factors. For critical audio applications, always perform a full sound check in the actual filming location.

References

• ISO 1222:2010 Photography — Tripod Connections
• FCC Part 74 Subpart H - Wireless Microphones
• EBU R 137 / TLCI-2012 Television Lighting Consistency Index
• The 2026 Creator Infrastructure Report: Engineering Standards, Workflow Compliance, and the Ecosystem Shift
• IEC 62471:2006 Photobiological Safety of Lamps
