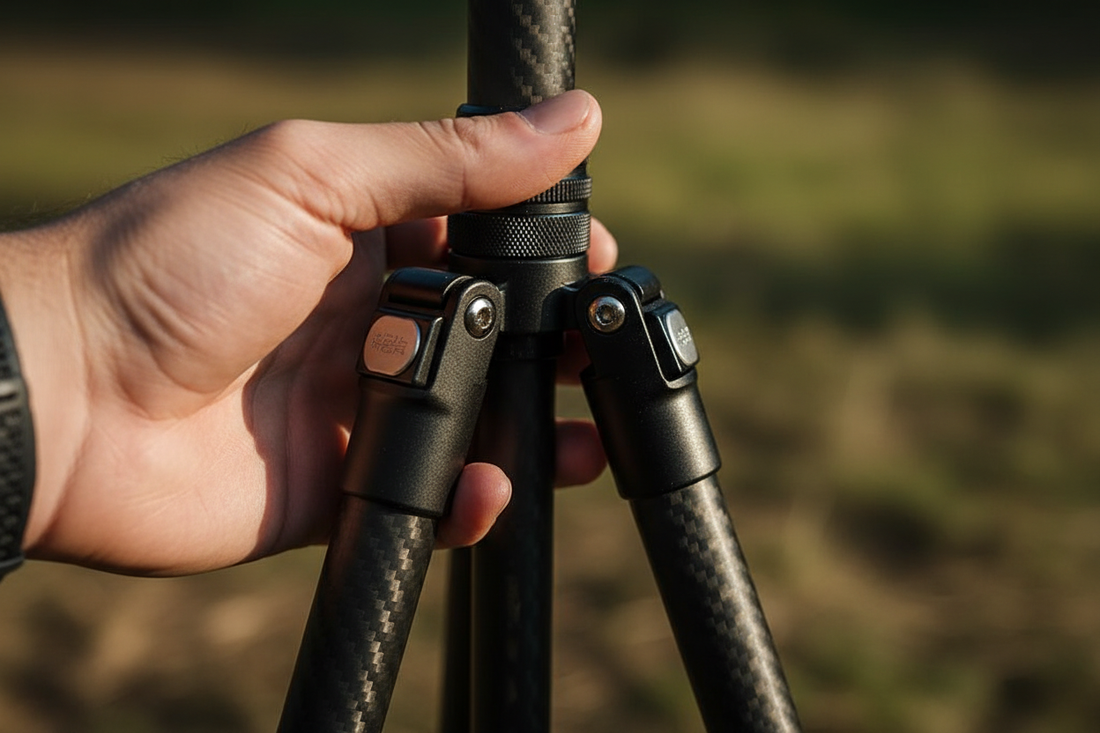

The Retirement Checklist: When Your Carbon Tripod is Unsafe

The Carbon Fiber Dilemma: When Support Becomes a Liability

In the high-stakes world of professional cinematography and photography, your tripod is more than a stand; it is the foundation of your creator infrastructure. Based on patterns observed at our repair benches, a dangerous misconception persists: the belief that if a carbon fiber tripod still stands, it is still safe. Unlike aluminum, which bends and deforms visibly, carbon fiber is a composite material that can hide fatigue within its resin matrix.

For professional creators, the cost of a tripod failure often exceeds the price of the legs—it involves the potential damage to a high-value cinema rig and the loss of a mission-critical shoot day. This article provides a methodical framework for auditing your support system.

Quick Decision: Retire or Go?

• Retire: If you find visible fiber fraying, a "fingernail catch" crack, or if the leg slips during a lateral shake test.
• Inspect Further: If the locks feel gritty, the joints show "springback," or the tripod has suffered a fall over 1 meter.
• Go: If the tubes are smooth, locks bite instantly without creep, and joints are rigid under torque.

1. Structural Integrity: The Invisible Fatigue of Composites

Carbon fiber's primary advantage is its strength-to-weight ratio and its ability to dampen high-frequency vibrations. However, research into the Mode I Fatigue of Fibre Reinforced Polymeric Composites indicates these materials are susceptible to delamination—a process where the individual layers of carbon weave separate from the epoxy resin.

The "Fingernail Test" and Impact Heuristics

On a professional set, we recommend the "fingernail test" as a practical field heuristic for structural health. Run your nail along the length of the carbon tubes. If your nail catches on a raised fiber or a hairline crack that feels "sharp," it typically indicates that the resin has fractured. This is often more than a cosmetic scratch; it can be a point of structural compromise where moisture and oils can enter the laminate.

Furthermore, many professional technicians use a "Risk-Mitigation Heuristic" following a significant impact:

• The Guideline: If a tripod has suffered a fall over 1 meter onto a hard surface, consider the safe load rating significantly reduced (often by half) for mission-critical work, even if no damage is visible.
• The Logic: Internal microfractures in the resin matrix, which are difficult to detect without ultrasonic or thermographic inspection, can reduce the tube's resistance to buckling under dynamic loads.

2. Mechanical Failure: The "Click of Doom"

While the legs provide the height, the locking mechanisms provide the security. In our experience handling warranty and return patterns, the most frequent point of failure is often the interface between the tube and the lock rather than the carbon itself.

The Lateral Shake Test (Service Center Method)

A common issue for creators is a lock that feels tight but allows for "leg creep" under pressure. To verify the integrity of your locks—whether they are the twist locks found on the Ulanzi Falcam TreeRoot Quick Lock Travel Tripod R141K-320P or standard flip locks—perform this diagnostic used in our workshops:

1. Extend the tripod fully and lock all sections.
2. Apply moderate downward pressure while simultaneously shaking the leg laterally (side-to-side).
3. Listen for a "clicking" sound or feel for a slight "step" in the movement.

If the leg slips even a millimeter during this lateral stress, the internal shims (often made of nylon or plastic) may have worn down, or the carbon surface may have become too polished for the lock to bite effectively. At this point, the tripod may no longer be reliable for heavy rigs.

3. Environmental Corrosion: The Saltwater Challenge

A quick freshwater rinse after a beach shoot is a good start, but the reality of Galvanic Corrosion is more complex. When saltwater enters the joints, it can create an electrolyte bridge between aluminum lock components and the carbon fiber.

The 24-Hour Maintenance Window

If your tripod has been exposed to salt spray or submerged, we recommend a full disassembly, cleaning, and drying of all internal mechanisms within 24 hours. Prolonged exposure can lead to "aluminum rot," where metal components expand as they oxidize, potentially cracking the carbon tubes from the inside out.

Note: While cleaning is vital, frequent unnecessary disassembly can introduce grit into the threads. We suggest following ISO 1222:2010 compliant protocols only when environmental exposure or mechanical "grittiness" justifies it.

4. Stability Analysis: The Impact of Leverage

When evaluating tripod safety, creators often focus solely on total weight. However, as noted in Ulanzi’s 2026 Creator Infrastructure Report, the more significant factor is often Leverage.

Illustrative Torque Calculation

Weight distribution affects the stability of your tripod head, such as the Ulanzi U-190 Pro Fluid Video Head E009GBB1. A heavy monitor or microphone mounted far from the center of gravity creates torque that the tripod must counteract.

Model Formula: Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)

In this scenario, a 2.8kg rig held 0.35m from the center generates nearly 10 N·m of torque. This force requires significant mechanical stability to counteract. If your tripod joints show "springback" (a delayed return to center after applying sideways pressure), they may be reaching their mechanical limit, increasing the risk of a tip-over.

5. Workflow ROI: The Hidden Cost of Aged Gear

Professional gear choice is a balance of safety and efficiency. When a tripod becomes "fiddly"—requiring extra force to lock or multiple attempts to level—it can begin to drain your most valuable resource: time.

The "Quick Release" Efficiency Model (Estimated)

Consider the transition from traditional thread mounting to a high-performance system like the Falcam F38.

• Traditional Thread Mounting: ~40 seconds per swap.
• Quick Release (F38/F50): ~3 seconds per swap.

Illustrative Assumptions: For a professional performing 60 swaps per shoot across 80 shoots a year, this transition can potentially save approximately 49 hours annually. At a professional rate of $120/hr, upgrading to a modern system like the Ulanzi Falcam TreeRoot Quick Lock Travel Tripod R141K-320P represents a significant value in recovered time.

6. The Retirement Checklist: A Professional Audit

Before your next shoot, use this checklist to determine if your support system is a "Go" or requires retirement.

A Note on Quick Release Plates

While carbon legs are the focus, the interface—the quick release plate—is equally vital. High-performance plates, such as those in the Falcam ecosystem, are precision-machined from Aluminum Alloy (6061 or 7075) to ensure rigidity and zero-play tolerance.

Note: The 80kg load capacity often cited for systems like the F38 refers to Vertical Static Load under lab conditions. For real-world "Dynamic Payload" (moving a rig on a gimbal or in wind), we recommend maintaining a higher safety margin.

Building a Resilient Infrastructure

Retiring gear is a methodical decision to protect your creative output. By treating your support system as "Creator Infrastructure," you align your workflow with professional production standards.

If you require a portable but robust solution, the Ulanzi TT51 Aluminium Alloy Portable Tripod T089GBB1 offers a sturdy aluminum alternative that avoids the specific fatigue modes of aged carbon. For desktop work where speed is paramount, the Ulanzi Falcam TreeRoot Quick Open Desktop Tripod T00A4103 utilizes a linkage structure designed to minimize mechanical wear.

Ultimately, your goal is a "ready-to-shoot" toolchain. Regular audits ensure that your foundation remains as professional as the content you create.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional engineering or safety advice. Always refer to your specific product’s manufacturer manual for load ratings and maintenance protocols. If you suspect structural damage, consult a professional repair technician before mounting high-value equipment.

Sources & Authoritative References

• ISO 1222:2010 Photography — Tripod Connections
• Ulanzi Internal Report: Creator Infrastructure Engineering Standards (2026)
• Arca-Swiss Dovetail Technical Analysis
• Delamination Inspection in CFRP Structures - moviTHERM
• Mode I Fatigue of Fibre Reinforced Polymeric Composites: A Review
