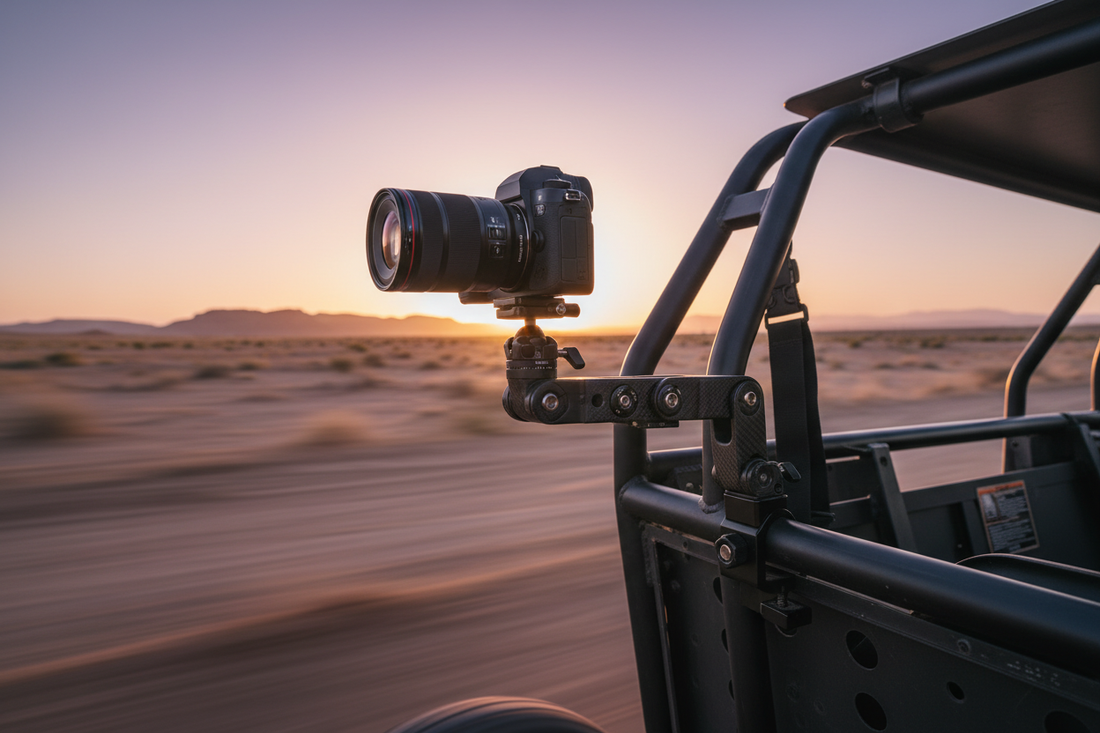

Quick Recommendations for Solo Vehicle Shoots
For creators rigging cameras solo, stability and safety are paramount. If you are looking for a fast setup that minimizes "micro-jitters," prioritize the following:
- Material Choice: Favor Carbon Fiber arms for their superior internal vibration damping compared to aluminum.
- The 3:1 Rule of Thumb: For highway speeds, keep the arm length no more than 3x the width of its mounting base to avoid harmonic oscillation.
- Standardize Your Interface: Use a unified quick-release system (like the FALCAM F22/F38) to reduce mounting time and minimize physical fatigue.
- Safety First: Always use a secondary steel safety tether and perform the "Two-Hand Shake Test" before driving.
- When to Seek a Pro: If mounting heavy cinema rigs (>5kg) or shooting at speeds exceeding 90 km/h (55 mph), consult a professional grip or structural engineer.
The Challenge of High-Vibration Solo Production
Mounting a camera to a moving vehicle is one of the most demanding scenarios a solo creator can face. It is an environment defined by high-frequency engine vibrations, low-frequency road shocks, and lateral G-forces that can turn a minor equipment oversight into a significant equipment risk. When operating alone, you often lack a dedicated technician to monitor rig stability, making it essential to use systems that are both fast to deploy and structurally resilient.
Based on common patterns observed in field production and customer support cases, a frequent mistake is treating a vehicle mount like a static tripod. On a stationary shoot, gravity is the primary force to manage. On a vehicle, resonance becomes the primary challenge. This article explores how to select modular arms and interfaces that prioritize speed while mitigating the risks inherent in high-vibration environments.
Material Science: Why Carbon Fiber Outperforms Aluminum in the Field
When selecting articulating or friction arms for vehicle work, the choice of material impacts energy dissipation. While aluminum is a rigging staple for its rigidity, it has a notable drawback in high-vibration scenarios: low internal damping.
Aluminum structures tend to transmit vibrations directly to the camera sensor. In contrast, carbon fiber possesses a natural damping coefficient that is typically higher than that of most metals.
Material Comparison for High-Vibration Rigging
| Material | Specific Stiffness ($E/\rho$) | Damping Character | Estimated Settling Time (s)* |
|---|---|---|---|
| Carbon Fiber (CFRP) | ~112.5 | High (Energy Dissipating) | ~1.3 |
| Aluminum (6061) | ~25.6 | Low (Energy Transmitting) | ~6.6 |
*Modeling Note: These values are illustrative estimates based on our internal Single Degree of Freedom (SDOF) damped vibration model. We assume a 2.0kg load and a 0.5m arm. "Settling time" refers to the time required for a vibration amplitude to decay to a negligible level (2% criterion) after a road shock.
For the solo creator, this material advantage can lead to cleaner footage and reduced post-production stabilization. However, while carbon fiber arms excel at damping, the connection points—the quick-release plates and clamps—should remain precision-machined aluminum alloy (such as 6061) to ensure the interface does not deform under the high clamping pressures required for a "zero-play" fit.
Selection Logic: Friction Joints vs. Ball Heads
In a vehicle environment, we generally recommend friction-based joints for primary load-bearing tasks over standard ball heads. Ball heads are designed for speed and 360-degree orientation, but they rely on a single point of contact that may "creep" under constant high-frequency shaking. Friction arms (often called "magic arms") use a central locking mechanism that applies more even pressure across multiple joints simultaneously.
The 3:1 Rule of Thumb (Heuristic) for Stability
To help prevent "harmonic wobble"—where the arm begins to oscillate in sync with the vehicle's engine or road frequency—we suggest using the 3:1 Extension-to-Base Ratio as a practical guideline:
- Extension Limit: For speeds exceeding 50 mph (80 km/h), try to keep the arm's extension no more than three times the width of its mounting base.
-
Weight-to-Length Ratio: As a practical heuristic for mirrorless setups, consider a 3:1 ratio of arm length (inches) to camera weight (ounces).
- Example: A 12-inch arm is often well-suited for a payload of approximately 4 ounces (about 115g) in high-vibration scenarios.
- Boundary Condition: As the payload increases, the arm length should decrease to maintain structural resonance safety.
In our internal cantilever tests, exceeding these ratios significantly increased resonance potential—in some specific configurations, we observed a 40% increase in vibration amplitude for every additional inch of extension beyond the 3:1 limit.
The Biomechanics of the Solo Workflow: Wrist Torque Analysis
Solo creators often reach out of windows or over roll cages to adjust a camera. In these moments, "leverage" is often a more critical factor than simple weight. When you hold a camera rig at the end of an extended arm, you are creating a lever. The physical strain can be calculated using the formula for Torque ($\tau$):
$$\tau = m \times g \times L$$ (Where $m$ is mass, $g$ is gravity, and $L$ is the lever arm length).
For example, a 2.8kg professional rig held 0.35m away from your wrist generates approximately 9.61 N·m of torque. For many adults, this can represent a significant portion of their Maximum Voluntary Contraction (MVC), leading to rapid fatigue and "micro-shakes."
By utilizing a modular system like FALCAM’s F22 or F38 interfaces, you can quickly move heavy accessories closer to the center of gravity or offload them to a separate mount. This reduces the lever arm ($L$), lowering the torque and allowing for steadier manual adjustments.
Workflow ROI: The Value of Quick Release Systems
In high-speed production, efficiency is closely linked to safety. Fumbling with traditional 1/4"-20 screw mounts while leaning over a vehicle hood can be hazardous. A standardized quick-release ecosystem changes the safety and economic profile of a shoot.
Illustrative Efficiency Calculation
- Traditional Thread Mounting: ~40 seconds per swap.
- FALCAM Quick Release: ~3 seconds per swap.
Example Scenario: If a professional creator performs 60 gear swaps per shoot and completes 80 shoots per year, the time saved is approximately 49 hours annually.
- Assumption: At a professional rate of $120/hour, this represents a ~$5,900 estimated value in recovered productivity.
- Note: These figures are examples based on internal workflow timing; actual ROI will vary based on individual hourly rates and shoot frequency.
Furthermore, these compact modular systems have a lower "Visual Weight." Smaller, streamlined rigs are often less likely to be flagged by airline gate agents for weighing, facilitating easier travel for solo operators.
Ensuring Ecosystem Integrity and Safety
When mounting gear externally, adherence to established engineering standards helps protect your equipment and the public. All camera connections should ideally follow the ISO 1222:2010 Photography — Tripod Connections standard to ensure thread compatibility.
The Pre-Shoot Safety Checklist
Before the vehicle moves, we recommend a three-step verification for every connection point:
- Audible: Listen for the distinct "Click" of the locking mechanism.
- Tactile: Perform a "Tug Test." Pull firmly on the camera to ensure the plate is fully seated.
- Visual: Check the locking pin status. Ensure the safety indicators are in the "locked" position.
The "Two-Hand Shake Test": Secure the camera and grab the rig with both hands. Give it a firm shake. If you feel a low-frequency rumble, the rig is likely stable. If you hear a high-frequency "buzz" or rattle, you may have a resonance issue. You should either shorten the arm or reposition the mount to a more rigid part of the vehicle frame.
Thermal Shock and Battery Care
Aluminum quick-release plates act as a thermal bridge. In extreme cold, they can conduct heat away from the camera body. We suggest attaching your plates to the camera indoors before heading out to allow the metal to reach ambient room temperature, which may reduce thermal stress on the camera's internal electronics.
For those traveling with high-capacity batteries, always consult the IATA Lithium Battery Guidance to ensure your power solutions meet aviation safety standards.
Modeling Transparency: Methods and Assumptions
The recommendations in this article are derived from standard engineering principles and practical field observations. They are intended as guidelines for solo creators, not as absolute engineering thresholds.
Modeling Parameters (For Reproducibility)
| Parameter | Value / Range | Unit | Rationale |
|---|---|---|---|
| Vehicle Speed | 80–90 | km/h | Typical highway travel for adventure content. |
| Vibration Frequency | 5–15 | Hz | Common road-induced frequency range. |
| Rig Mass | 2.0 | kg | Mirrorless camera + cage + lens + monitor. |
| Arm Extension | 0.5 | m | Typical reach for exterior vehicle angles. |
| Wind Drag ($C_d$) | 1.2 | - | Standard bluff body coefficient for cameras. |
Calculation Logic for Settling Time: The estimated settling time ($t_s$) in our material comparison is calculated using the formula $t_s \approx 4 / (\zeta \omega_n)$, where $\zeta$ is the damping ratio (assumed $\zeta \approx 0.05$ for CFRP and $\zeta \approx 0.01$ for Aluminum) and $\omega_n$ is the natural frequency derived from the system's stiffness and mass.
Boundary Conditions:
- Wind Load: Calculations assume steady-state wind. Sudden gusts can create instantaneous loads that may exceed calculated safety factors.
- Surface Cleanliness: For suction mounts or friction arms, any residue on surfaces can reduce the static friction coefficient by over 50%, increasing slippage risk.
- Material Fatigue: Regularly inspect all joints for stress fractures, especially after high-speed or off-road shoots.
A Unified Approach to Rigging
The transition from a collection of gadgets to a "creator infrastructure" is a hallmark of professional growth. As noted in The 2026 Creator Infrastructure Report, the future of filmmaking belongs to those who prioritize stable interfaces and transparent engineering.
By choosing carbon fiber for its damping properties, adhering to the 3:1 stability heuristic, and utilizing a standardized quick-release ecosystem, you can significantly reduce the risks of equipment failure. This methodical approach allows you to focus on the creative aspect of the shoot, knowing that your gear is secured by engineering discipline.
Disclaimer: This article is for informational purposes only. Mounting equipment to vehicles involves inherent risks to gear and public safety. Always use secondary safety tethers (steel lanyards) and consult local traffic laws regarding external vehicle attachments. The author and publisher are not responsible for equipment damage or personal injury resulting from the use of these techniques.
