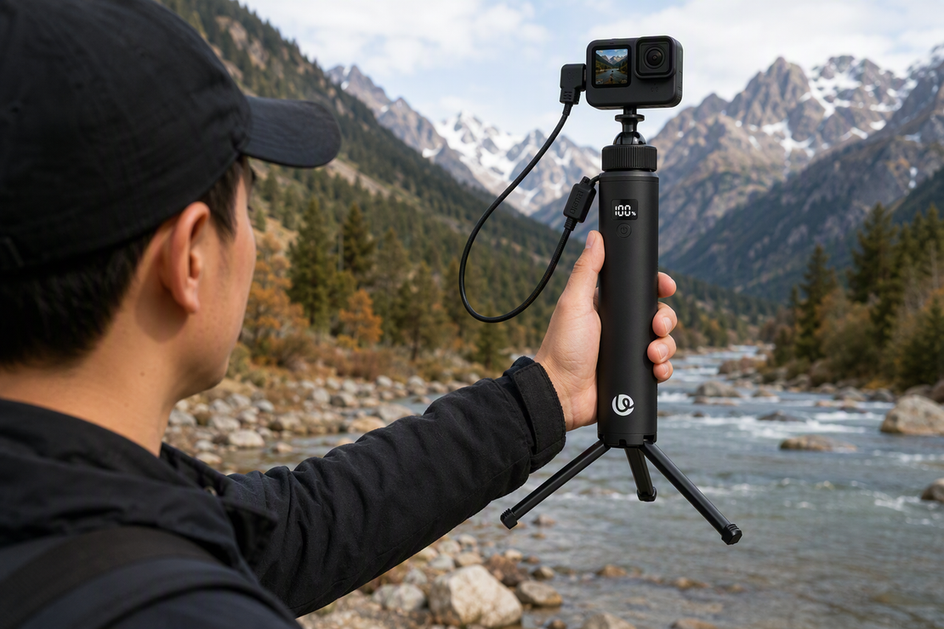

The right setup pairs a compatible camera, a charging handle with a documented output profile, and a short, secure USB-C cable. That combination, not the battery's mAh number, is what lets you keep an action camera powered through a long shoot with a battery handle. Run a real recording test with your exact camera and cable before you trust the connection on a trip or event.
Build a verified USB-C power path before the shoot
A verified power path starts with two separate checks: what your camera's USB input actually does, and what the handle actually outputs. Confirm both before you worry about cable routing or capacity.
Confirm the camera's external-power behavior
Check your camera's documented USB power mode and its approved cable type before you connect anything. Camera makers note that a connected power source can still let the internal battery drain during use, and rising internal temperatures can shorten continuous recording time. That means a connected handle does not automatically stop the battery drain or guarantee uninterrupted recording. Treat the manufacturer's power guidance as the first check, then confirm the behavior with your own short recording test instead of assuming it from the connector alone.
Build the shortest secure cable path
Use the shortest cable that reaches comfortably between the handle and the camera's port, and prefer an integrated cable only when its connector and rated output match your camera. Route it flat against the grip with a little slack near the port so a pull on the cable does not stress the connector during handheld movement. A connected cable is a power path, not a weather seal, so do not treat the setup as protected from rain or splashes just because it is plugged in.
Size the handle from usable energy, not mAh alone
A handle's mAh rating tells you very little by itself. Understanding your camera's real power draw is essential if you want to keep an action camera powered all day with a battery handle without unexpected shutdowns.
Read mAh alongside voltage and Wh
Two batteries with the same mAh figure can hold different amounts of energy if their voltage differs, so mAh alone cannot be compared across products. Our MA93 charging handle is documented at 10,000mAh at 3.65V, which works out to 36.5Wh, with Type-C output rated at 5V/3A and 9V/2A and at least 5,700mAh of available output capacity after conversion losses. Those are the listed specifications, not a runtime promise: they tell you how much energy is on tap and how it can leave the handle, not how long your specific camera will run on it.
Turn the shoot plan into a bounded estimate
To size a shoot, measure your camera's power draw in watts during the exact recording mode you plan to use, and call that number D. Divide the handle's usable watt-hours by D to get a rough hour estimate before real-world losses and conditions; for the MA93 example, that is 36.5Wh ÷ D watts, or 36.5/D hours. A single long continuous clip needs a comfortable margin above that estimate, while several short clips with breaks give you more room to recharge or swap power along the way.
| Input | What it tells you | How it changes the setup |
|---|---|---|
| Rated Wh | Total usable energy on tap | Sets the upper bound for the estimate |
| Documented output | Whether the handle can supply your camera's input | Confirms a compatible connection is possible |
| Measured camera draw (W) | Actual power your camera pulls in that mode | Feeds the runtime formula |
| Planned recording hours | What the shoot actually requires | Compares against the estimate |
| Backup decision | Whether the margin is thin or comfortable | Triggers carrying a spare battery or not |
Adapt the setup for cold-weather handheld shooting
Cold-weather planning is about preparation and testing, not a guaranteed performance number. Start every cold shoot with a fully charged setup and a protected backup, then confirm the exact recording mode at the temperature you expect.
Prepare the power source before exposure
Charge the handle and camera indoors or in a controlled setting before you head out, and keep any spare battery in an inside pocket rather than clipped to the outside of a bag. There is no verified operating-temperature figure from the product documentation for these handles, so avoid promising a specific cold-weather runtime to yourself or a client. Plan around the setup you can actually confirm, not around an assumed cold-weather advantage.
Test the recording mode you will actually use
Repeat your recording test at or near the expected outdoor temperature whenever that is practical, since cold can change battery behavior in ways a room-temperature test will not reveal. If lowering resolution, frame rate, or stabilization settings still produces footage that meets the shoot's requirement, that reduction can extend your margin without changing your outcome. When you cannot test the cold-weather setup in advance, treat that as a reason to pack a charged backup, not as proof the handle will perform the same way it did indoors.
Treat the gasket and port cover as a wet-weather go/no-go check
Weather sealing is its own separate decision, and it depends on the exact gasket, port cover, and cable connection on your specific handle. Confirm all three before you shoot near rain, spray, or standing water.
Inspect the gasket and port area
If your handle's documentation identifies a silicone gasket or port cover, clean it and seat it fully before you connect the cable, checking for dirt, deformation, or gaps that would keep it from closing. Confirm the cable itself is not pinching or lifting the seal at the point it enters the housing. This inspection applies to the connected cable and the exact port you are using that day, not to the accessory in general, since an open charging port can undo an otherwise solid seal.
Set a clear wet-use boundary
Splash resistance and immersion protection are not the same thing, and a rating that covers one does not extend to the other. Skip wet-weather use whenever you cannot confirm the exact protection level with the cable connected, and reach for a dry cover, a sheltered position, or backup power instead of improvising a seal in the field. Our guide on sealing integrity during on-location charging walks through that clean-then-connect inspection in more detail if you want the full routine.
Run the exact setup test and choose a backup plan
The final step is a real test with your exact gear, followed by clear planning choices. Planning power buffers and backup options ensures you can keep your action camera powered during a long handheld shoot with a battery handle even when shooting in demanding outdoor environments.
Run a real recording test
- Connect the camera, handle, and cable exactly as you plan to use them, and inspect the port and any gasket before you start.
- Start the exact recording mode, resolution, and frame rate you intend to shoot with.
- Monitor the camera's power behavior and any heat warnings for at least as long as your longest planned clip.
- Confirm the connection holds steady and the cable shows no strain at the connector.
- Stop the camera before disconnecting the cable, since unplugging mid-recording can interrupt the footage or the connection.
Choose the fallback before you leave
Carry a charged backup battery when the test shows the camera's internal battery keeps declining or when your planned recording time exceeds what the test confirmed. Change to lower-demand recording settings only if the resulting footage still meets what the shoot needs. If your external camera power setup remains unverified for cold or wet conditions, plan for a dry, sheltered swap instead of relying on an unconfirmed connection during the shoot itself.
FAQs
Is powering an action camera from a battery handle the same as charging the handle while it powers the camera?
No. Supplying power to a camera through USB-C and recharging the handle at the same time are two separate functions, and a handle that does one well does not automatically do both together. True simultaneous input and output depends on the exact model's documented behavior, so confirm it in your handle's specifications and verify it with a real recording test before you count on it. If that behavior is not documented or does not hold up during your test, carry a charged backup battery instead of assuming the handle will recharge itself mid-shoot.
Does a higher mAh rating guarantee longer action camera recording time?
No. Rated mAh must be converted to watt-hours (Wh) using the handle's nominal cell voltage, then evaluated against your camera's measured power draw during recording. Differences in output voltage conversion efficiency, camera processing modes, and ambient temperatures mean a high mAh rating alone does not directly translate into predictable runtime.
Can you shoot in the rain while the action camera is plugged into a battery handle?
Only if both the camera port door and the handle's cable interface have documented, tested weather sealing for wet-cable operation. In most standard setups, plugging in an external USB-C cable opens the camera's weather door and breaks the seal, making the system suitable for dry conditions only unless fully enclosed in a verified rain cover.
