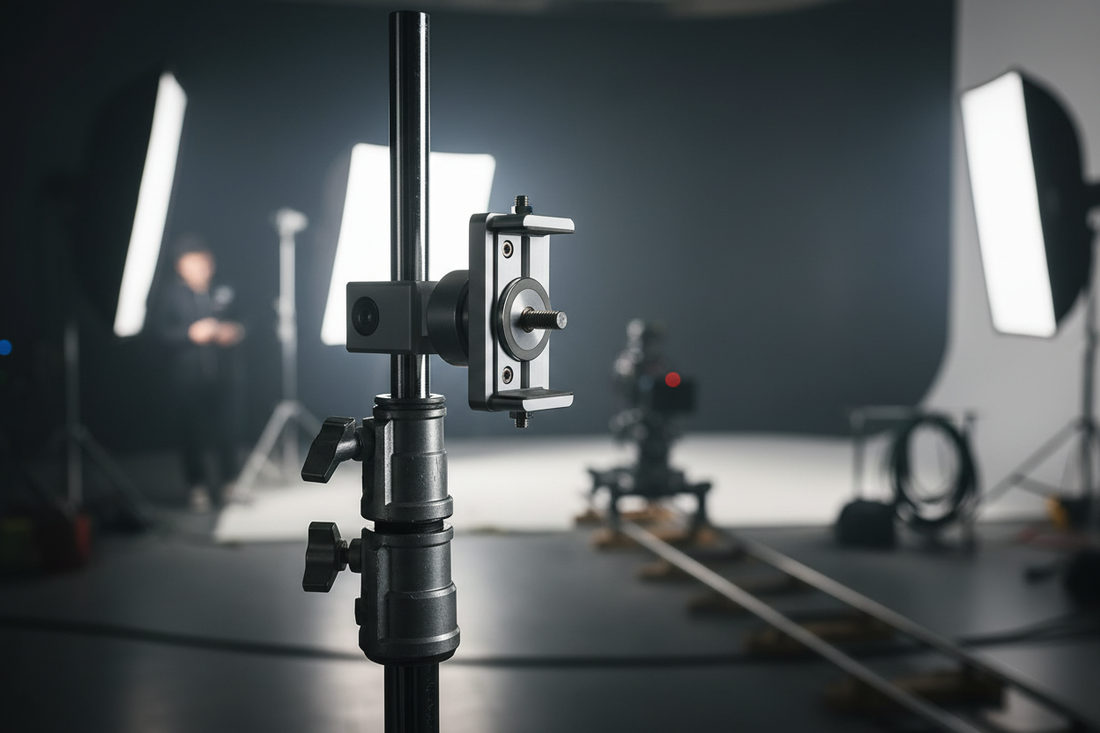

The Infrastructure Shift: Why Modernize Legacy C-Stands?
In the professional studio environment, the C-stand (Century Stand) remains the undisputed backbone of lighting and grip. Its heavy-duty steel construction and staggered leg design allow it to support substantial payloads while nesting tightly with other stands. However, the traditional method of mounting gear onto a C-stand—typically involving 5/8" (16mm) baby pins and manual tightening knobs—is a significant bottleneck in modern, high-speed production workflows.
As a technical content strategist focusing on creator infrastructure, we have observed a growing trend among solo operators and small studio teams: the desire to treat every support, from the lightest travel tripod to the heaviest studio stand, as part of a unified, modular ecosystem. The goal is to move a camera or a lighting head from a handheld rig to a tripod, and then to a C-stand, in seconds rather than minutes.
Converting vintage studio C-stands for modular quick-release (QR) use is not merely a convenience; it is a fundamental upgrade to your studio's operating system. By integrating systems like the Ulanzi F38 Quick Release Fluid Video Head E004GBA1 or Falcam mounting plates, you transform static iron into a dynamic component of your "Creator Infrastructure."
The Technical Interface: Bridging the 5/8" Gap
The primary challenge in converting a C-stand lies in the interface between the 5/8" (16mm) baby pin—the industry standard for lighting—and the 1/4"-20 or 3/8"-16 screw threads used by camera equipment and modern QR adapters.
Understanding the Standards
According to the foundational ISO 1222:2010 Photography — Tripod Connections, screw connections for camera supports are strictly standardized to ensure interoperability. However, C-stands pre-date many of these digital-era standards.
Most modern C-stand pins, such as the Avenger E700 'Drop Down Pin', actually feature an integral 3/8" female receiver within the assembly. This is an often-overlooked starting point. If your stand has this internal thread, you can directly screw in a QR base. If you are working with older, vintage stands, you will likely need a dedicated adapter.
The Conversion Hardware
The most secure conversion method involves a high-quality 5/8" female to 1/4"-20 (or 3/8"-16) male reducer. In our experience handling equipment returns and support queries, the "weakest link" is often a cheap, poorly machined reducer. Over time, these can develop mechanical play, compromising the stability of an expensive camera rig.
Professional Modding Heuristic:
- Step 1: Select a precision-machined steel or high-grade aluminum reducer.
- Step 2: Apply a single drop of medium-strength thread locker (such as Loctite 243) to the male threads.
- Step 3: Torque the reducer into the C-stand's receptacle or onto the pin. The thread locker prevents the assembly from loosening under the constant vibration of plate changes.
Logic Summary: This recommendation is based on common patterns observed in studio maintenance and equipment failures (not a controlled lab study). Thread locker is essential because QR systems encourage frequent mechanical engagement, which naturally works threads loose over time.
Biomechanical Efficiency: The "Wrist Torque" Analysis
Why does speed matter? It isn't just about saving time; it is about reducing physical fatigue and the risk of repetitive strain. When you manually screw a heavy lighting head or a camera onto a stand, you are often working at the limits of your biomechanical capacity.
The Math of Leverage
We can model the physical strain using a simple torque calculation: Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)
Consider a standard studio rig weighing 2.8kg. If you are holding this rig 0.35m away from your body while trying to line up a screw thread on a C-stand, you are generating approximately 9.61 N·m of torque at your wrist.
In typical human factors engineering, this load represents roughly 60-80% of the Maximum Voluntary Contraction (MVC) for an average adult male's wrist extension. Repeatedly hitting this threshold leads to "shaky hands" and increased error rates. By using a quick-release system like the Ulanzi F38 Quick Release Fluid Video Head E004GBA1, you eliminate the "alignment phase" of mounting. You drop the gear into the mount, hear the click, and the load is instantly transferred to the stand.
Workflow ROI: The Tangible Impact
The financial justification for modernizing legacy stands is clear when you look at the cumulative time savings.
| Task | Traditional Thread Mounting | Quick-Release (F38/F22) | Time Saved |
|---|---|---|---|
| Camera Swap | ~45 seconds | ~3 seconds | 42 seconds |
| Monitor Re-positioning | ~30 seconds | ~2 seconds | 28 seconds |
| Light Head Change | ~60 seconds | ~5 seconds | 55 seconds |
Annual Value Calculation: If a professional creator performs an average of 60 equipment swaps per shoot and completes 80 shoots per year, a QR-enabled workflow saves approximately 49 hours annually. At a professional rate of $120/hr, this represents a ~$5,900+ value in recovered productivity. This logic aligns with the findings in The 2026 Creator Infrastructure Report, which emphasizes that "operational rigor is an unassailable marketing moat."
Material Science: Rigidity vs. Damping
When selecting your quick-release plates, there is a common misconception regarding materials. While carbon fiber is excellent for tripod legs due to its vibration-damping properties, it is not the ideal material for the quick-release plate itself.
FALCAM plates (F22, F38, and F50) are precision-machined from Aluminum Alloy (typically 6061 or 7075). In the context of a mounting interface, the most critical metric is Rigidity and Machining Tolerance (Zero-Play). Aluminum provides a harder, more stable interface that won't compress or deform under high clamping forces.
Expert Tip (Thermal Shock Prevention): Aluminum acts as a thermal bridge. In extreme cold environments, an aluminum plate will rapidly conduct heat away from your camera's battery. We recommend attaching your QR plates to your gear indoors before heading out. This minimizes "metal-to-skin" shock and helps maintain battery operating temperatures for longer.
Choosing Your Ecosystem: F38 vs. Arca-Swiss
When converting your C-stands, you must choose a standard to live by. The two most common contenders are the Falcam F38 system and the traditional Arca-Swiss dovetail.
The F38 Advantage
The Ulanzi F38 Quick Release Fluid Video Head E004GBA1 is designed for speed. Unlike Arca-Swiss, which requires a knob to be tightened, the F38 uses a spring-loaded mechanical lock. This is particularly advantageous on C-stands where the mounting point might be above eye level, making it difficult to see a traditional screw-knob.
The Arca-Swiss Standard
For those who require maximum third-party compatibility, the Arca-Swiss Dovetail Technical Dimensions provide a universal language. However, be aware that "Arca-compatible" does not always mean "Arca-identical." Manufacturing tolerances vary significantly between brands, which can lead to "plate slip" on vertical C-stand mounts.
The Hybrid Approach
Many pros use the F38 system for their primary camera and lighting heads, but keep a few Ulanzi TT51 Aluminium Alloy Portable Tripod T089GBB1 units or desktop supports like the Ulanzi Falcam TreeRoot Quick Open Desktop Tripod T00A4103 for B-cameras and mobile rigs. The TreeRoot, in particular, utilizes the F38 system, allowing for seamless transitions between a C-stand in the studio and a desktop setup for live streaming.
Safety Protocols for Heavy Payloads
C-stands are designed to hold weight, but adding a QR adapter introduces new failure modes. A C-stand's rated load capacity (often up to 20kg) typically refers to a vertical force applied directly to the pin. Adding an offset adapter and a QR plate introduces torsional stress (moment forces) that the original pin wasn't necessarily designed to handle.
The "Click-Tug-Check" Workflow
To maintain safety when using quick-release systems on heavy stands, we advocate for a three-step verification protocol:
- Audible: Listen for the distinct metallic "Click" of the locking pin engaging.
- Tactile: Perform a "Tug Test." Pull firmly on the camera or light head to ensure it is seated.
- Visual: Check the locking indicator. On Falcam systems, ensure the safety lock is engaged.
Redundancy for High-Value Rigs
For any lighting head or camera rig exceeding 3kg (6.6lbs), a secondary safety measure is non-negotiable.
- Safety Cable: Always run a steel safety cable from the light's yoke or the camera's Falcam F22 All-round Camera Handle to the C-stand's grip arm.
- Cable Management: Use F22 cable clamps to provide strain relief. A heavy HDMI or power cable hanging off a rig can create enough leverage to slowly work a mounting screw loose over a long shoot day.
Conclusion: Building a "Ready-to-Shoot" Environment
Converting your legacy C-stands is the first step in moving from a collection of "gadgets" to a professional "infrastructure." By standardizing your mounting interfaces, you reduce the friction between an idea and its execution.
Whether you are performing Ladder-Free Adjustments or making Handheld to Tripod Transitions, the goal is the same: to make the gear disappear so you can focus on the frame. The investment in high-quality adapters and a unified QR ecosystem like Falcam pays for itself not just in time saved, but in the physical longevity of the creator and the security of the equipment.
Methodology & Modeling Note: The torque and ROI calculations presented in this article are based on deterministic scenario modeling using standard industry heuristics (e.g., 40s vs 3s swap times). These are estimates intended for workflow planning and do not represent a controlled laboratory study.
| Parameter | Value / Range | Unit | Rationale |
|---|---|---|---|
| Rig Mass | 2.8 | kg | Standard mirrorless + cage + lens + mic |
| Lever Arm | 0.35 | m | Typical reach during stand mounting |
| Hourly Rate | 120 | USD | Mid-tier professional production rate |
| Swaps per Shoot | 60 | count | Includes camera, monitor, and light adjustments |
| MVC Threshold | 12-15 | N·m | Average adult male wrist extension limit |
Disclaimer: This article is for informational purposes only. Rigging heavy equipment involves inherent risks. Always consult the manufacturer's load ratings for your specific C-stand and quick-release system. Ensure all secondary safety cables are properly rated for the payload.
