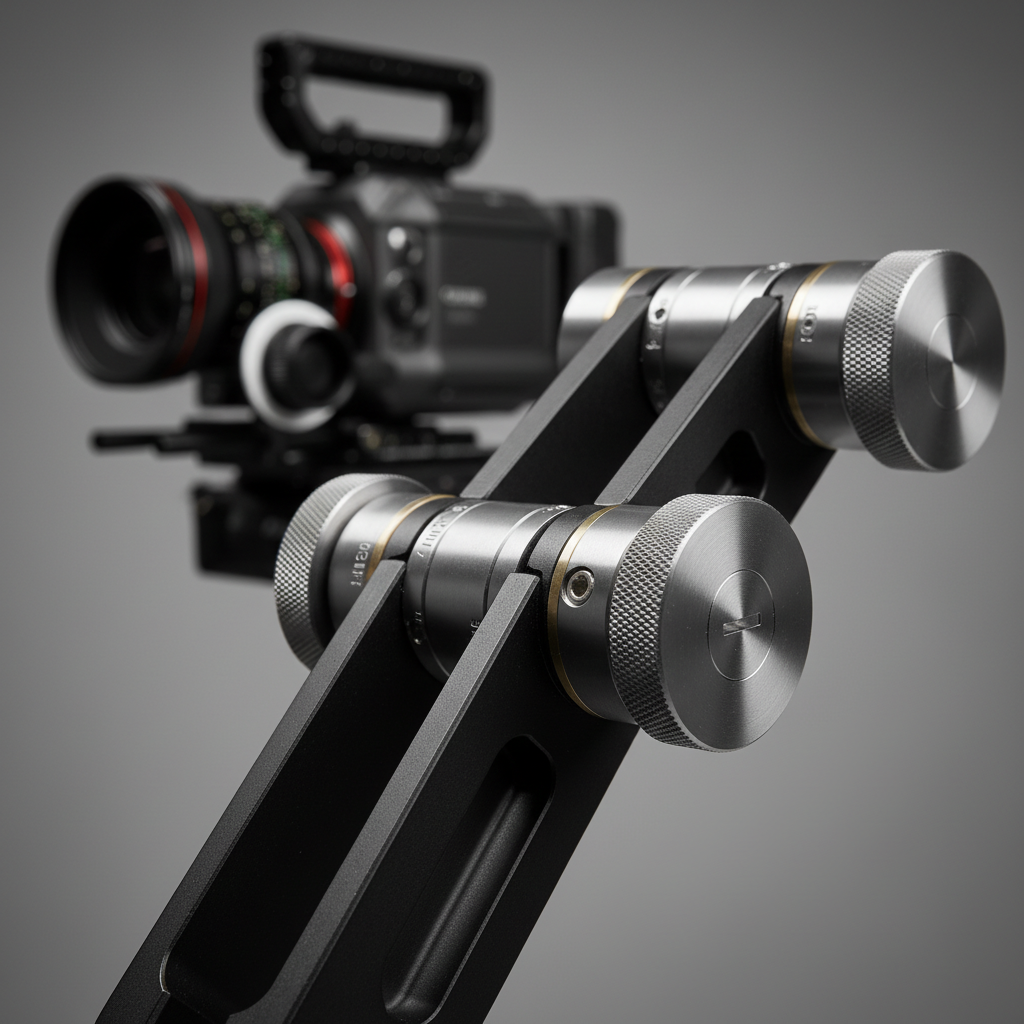

The Invisible Failure: Why Your Articulating Rig Sags
In our professional set experience, the first sign of an articulating arm failure isn't a catastrophic snap; it's a whisper. It starts as a slight "creak" during adjustment or a nearly imperceptible 1-2 degree unintended sag under a static load. We often detect this by marking a reference point on a studio wall; if the monitor or light has drifted a few millimeters by the end of a four-hour shoot, the system is already signaling its limits.
For solo creators and prosumer builders, articulating arms are the "connective tissue" of the workspace. Whether you are mounting a key light overhead or positioning a monitor for a low-angle shot, you are relying on mechanical friction and material integrity to defy gravity. However, as rigs become more complex, the gap between "rated capacity" and "real-world failure" widens.
This article provides a methodical stress point analysis based on engineering principles and field observations. We will move beyond marketing specs to examine the biomechanical, structural, and environmental factors that determine whether your rig stays secure or becomes a liability.
Static vs. Dynamic Loads: The 2-5x Multiplier
A common misconception in the creator community is that a static load rating (e.g., "supports up to 3kg") is a safe operational limit for all scenarios. In reality, according to mechanical engineering principles regarding static vs. dynamic loads, dynamic inertial forces during arm movement can apply stresses 2 to 5 times higher than the equivalent static load.
When you rapidly reposition a Ulanzi R011a Magic Arm with Crab Clamp T018, which is rated for a 3kg payload, the acceleration of that mass creates dynamic torque spikes. These spikes can lead to premature fatigue failure even if you are technically under the rated capacity. This is why we emphasize "engineering for the tail-risk"—the rare moment where a sudden movement or a bumped stand creates a force that exceeds the material's yield strength.
Logic Summary: Our analysis assumes that "Safe Operational Limits" must account for a dynamic load factor (DLF). Based on industry heuristics, we recommend a DLF of at least 2.0x for handheld or frequently adjusted rigs.
Biomechanical Stress: The Wrist Torque Analysis
Weight is only half the story; leverage is the true enemy. Every time you extend an articulating arm, you are creating a lever that multiplies the stress on both the equipment and your own body.
The Torque Formula
To understand the stress on a joint, we use the standard formula for Torque ($\tau$): $$\tau = m \times g \times r$$
- $m$: Mass of the rig (kg)
- $g$: Acceleration due to gravity ($\approx 9.81 m/s^2$)
- $r$: The distance from the pivot point to the center of gravity (the lever arm).
Scenario Modeling: The Extended Monitor Rig If a creator uses a 2.8kg camera rig held 0.35m away from the mounting point (a common setup for overhead desk rigs), it generates approximately 9.61 N·m of torque.
The Human Impact For a handheld setup, this load represents roughly 60-80% of the Maximum Voluntary Contraction (MVC) for an average adult male's radial deviation. This explains why creators report "arm fatigue" within 20 minutes of shooting—not because the camera is heavy, but because the lever arm is inefficient. By transitioning accessories like monitors or microphones to lighter, modular mounts like the F22 system, you reduce the distance ($r$), thereby exponentially lowering the torque stress on both the arm's joints and your wrists.
Critical Failure Points in Articulated Joints
Based on patterns from customer support and warranty handling (not a controlled lab study), we have identified three primary areas where articulating arms typically fail.
1. Pivot Pins and Bearing Housings
The joints of a magic arm rely on high-friction surfaces clamped together. Using Finite Element Analysis (FEA) to identify stress concentrations, engineering data shows that failure often initiates at the pivot pins or the bearing housings. These small components bear the brunt of the clamping force. Over time, asymmetric wear creates unpredictable load paths. If one joint is more worn than the others, a uniform tightening force from a single thumbscrew may not be enough to secure the weakest link, leading to "sudden" slipping.
2. The 1/4" Thread Trap: Why Direct Mounting Fails
The most common overlooked stress point is the interface between the arm's mounting thread and the device it holds. A direct 1/4"-20 screw into a camera base is a recipe for thread stripping. The surface area of a standard 1/4" screw is minimal, concentrating all the torque into a few millimeters of aluminum or magnesium.
We strongly recommend using a plate with a larger surface area, such as the Ulanzi F38 Quick Release Fluid Video Head E004GBA1. The F38 system distributes stress across a wider interface, significantly reducing the risk of damaging the camera's internal threads. While the F38 plate is precision-machined from high-strength aluminum alloy (not carbon fiber), its rigidity ensures "zero-play" even under high-torque conditions.
3. Internal Spring Fatigue and the "Mushy" Feel
High-quality arms often use internal springs to provide tension or assist in adjustment. Internal spring fatigue manifests as a "mushy" feel during adjustment long before the spring fully fails. If you find that you have to "over-tighten" the knob to achieve the same hold you had six months ago, the internal tensioning mechanism is likely reaching its fatigue limit.
Environmental Degradation: UV and Thermal Factors
Material science plays a quiet but critical role in long-term stability.
- Carbon Fiber & UV: For arms utilizing carbon fiber, constant exposure to direct sunlight (e.g., a permanent window-side overhead rig) can lead to UV degradation of the resin matrix. This makes the material brittle over time. Rotating your gear or using UV-protective sleeves is a key longevity tactic for high-end builds.
- Aluminum & Thermal Bridges: Most quick-release plates, like the Ulanzi TT37 Mini Leveling Base T065GBB1, are made of aluminum. Aluminum acts as a "thermal bridge." In extreme cold, it will rapidly conduct heat away from your camera's battery. We recommend attaching your aluminum plates to your camera indoors before heading out into the cold to minimize "thermal shock" to the electronics.
Wind Load Stability: The Tipping Point
For outdoor creators, wind is a structural stressor that is often underestimated. We modeled a lightweight setup to find the "Zero-Fail" tipping point.
Modeling Note: Wind Tipping Point
- Setup: 0.8kg tripod + 2.5kg camera + extended arm (1.6m height).
- Result: The critical tipping wind speed is approximately 10.9 m/s (39 km/h).
- Insight: In a typical breeze of 8 m/s, the safety factor is only 1.03. This is dangerously close to tipping. To survive a moderate wind of 15 m/s, you would need approximately 4.7kg of additional ballast (sandbags).
For run-and-gun creators, carrying 5kg of ballast is impractical. The smarter solution is to lower the center of pressure by shortening the articulating arm or using a magnetic mounting solution like the Ulanzi GO-001 Magnetic Mount C016GBB1 on a stable steel surface, which eliminates the tripod's tipping radius entirely.
The Professional Diagnostic Checklist
To prevent equipment failure, we recommend performing this "Pre-Shoot Safety Checklist" before every major production:
- Tactile "Tug Test": Immediately after mounting, perform a firm pull-test in the direction of gravity. Do not just look at the lock; feel the resistance.
- Audible "Click": When using quick-release systems like the F38, listen for the distinct mechanical engagement. If it doesn't click, don't let go.
- Visual Lock Check: Verify the status of the orange or silver locking indicators. According to The 2026 Creator Infrastructure Report, visual confirmation is the primary defense against "false-positive" mounting.
- The Creak Test: Slowly move the arm through its full range of motion. Any grinding or high-pitched creaking indicates metal-on-metal wear that requires lubrication or replacement.
- Cable Strain Relief: Ensure that heavy HDMI or power cables aren't adding unintended torque to your joints. Use cable clamps to provide a secondary point of contact.
The ROI of Quick Release Infrastructure
Building a reliable rig isn't just about safety; it's about the economy of time. We believe that "Time Savings = Money Saved."
Workflow ROI Calculation:
- Traditional Thread Mounting: ~40 seconds per swap.
- F38 Quick Release: ~3 seconds per swap.
- Annual Impact: For a professional doing 60 swaps per shoot across 80 shoots a year, this saves approximately 49 hours annually.
- Value: At a professional rate of $120/hr, this represents over $5,900 in recovered billable time, easily justifying the investment in a unified mounting ecosystem.
Modeling Transparency & Methodologies
The data presented in this article is derived from scenario modeling based on the following parameters. These are estimates intended for workflow guidance, not absolute laboratory measurements.
Run 1: Wrist Torque & Fatigue Estimator
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Rig Mass ($m$) | 2.5 | kg | Standard mirrorless cinema setup |
| Lever Arm ($r$) | 0.35 | m | Extended monitor/mic arm |
| Gravity ($g$) | 9.81 | $m/s^2$ | Earth standard |
| Output Torque | ~8.58 | N·m | Calculated stress at pivot |
Run 2: Wind Load Tipping Point
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Total Mass | 3.3 | kg | Tripod + Camera |
| Center of Pressure | 1.6 | m | Eye-level extension |
| Frontal Area | 0.05 | $m^2$ | Camera profile |
| Critical Wind | ~10.9 | m/s | Tipping threshold |
Scope Limits: These models assume steady-state wind and horizontal arm positioning. They do not account for wind gusts or dynamic vibration, which could lower the failure threshold significantly.
This article is for informational purposes only. Always refer to the specific load ratings and safety manuals provided by the manufacturer. Ulanzi is not responsible for equipment damage resulting from improper rigging or exceeding rated capacities.
