Managing multiple studio lights often turns into a time-consuming chore of manual tweaks and resets between every take or mode. Multi-light grouping combined with scene presets in the Ulanzi Connect app solves this by letting creators organize COB lights and pocket LEDs into functional groups and recall complete lighting states with minimal taps, delivering consistent results across talking-head, product B-roll, and live-stream workflows.
The Cost of Manual Lighting: Solving Studio Setup Friction
Creators working with five or more lights routinely lose 10–20 minutes per session just adjusting each fixture individually. These repeated manual resets create visible inconsistencies between episodes and force constant re-tuning when switching from a neutral talking-head setup to a high-contrast product showcase. The result is production friction that distracts from creative work and makes repeated shoots less reliable.
Multi-light grouping changes the workflow from isolated devices into a synchronized toolchain. By mapping lights to functional roles rather than physical position, and saving those combinations as versioned presets, you reduce setup tax and gain repeatable, one-tap transitions that keep lighting consistent across different studio layouts and team members. This approach directly addresses the core pain of inconsistent resets and clunky multi-device control that many 2026 creators still face.
Organizing Your Studio: The Logic of Functional Grouping
The most effective way to organize lights is by their creative function instead of physical location. Grouping by proximity (for example, “Left Side”) quickly creates control chaos because adjusting exposure on a subject unintentionally alters background or accent lights. Instead, assign logical Group IDs that match standard lighting roles: Group A for Key, Group B for Fill, Group C for Rim or hair light, and Group D for Background or accent fixtures.
This functional approach gives independent control over exposure, contrast, and color without cross-talk. For instance, placing an RGB-capable light such as the Ulanzi C60 60W RGB Video Light into Group D lets you cycle background colors or add brand-specific accents while leaving skin-tone groups untouched. As the official Ulanzi multi-point wireless lighting guide explains, functional grouping is the foundation for reliable creative control in pro workflows.
Keep each group to 8–12 lights maximum. Larger clusters can push control latency above 100 ms, which becomes noticeable during live streams or fast-paced adjustments. Bluetooth range remains reliable up to about 15 m in typical studio conditions, with 25 m representing the practical outer limit before signal strength drops.
Mastering the Ulanzi Connect App: From Groups to Scenes
The Ulanzi Connect app (version 2.2.0 and higher) introduced dedicated “Light Preset” and “Edit group” tools that separate individual fixture tuning from synchronized recall. Updating to v2.4.1 or later unlocks “Saved group parameter” functionality, which stores complete state snapshots across multiple lights for faster scene switching.
Begin by creating individual Light Presets for each fixture, then aggregate them into the functional groups described above. The Edit Group feature lets you simultaneously adjust correlated color temperature (CCT), intensity (INT), and hue/saturation (HUE/SAT) across every member of a group in one operation. This eliminates the need to open each light’s panel repeatedly.
The Ulanzi Connect app listing confirms these preset and grouping capabilities form the technical backbone for scene-based studio automation. Remember that true global “one-tap” recall across all groups remains an optimized target; depending on app version and complexity, you may still need one tap per major functional group. Versioning presets helps manage this gracefully.
Workflow 1: The 'Talking Head' Precision Setup
For standard talking-head segments, start with a skin-tone-first baseline that prioritizes neutral CCT, balanced intensity, and minimal color tint. A synchronized three-point configuration works best: position the Key light at roughly 45 degrees, use the Fill group to soften shadows without flattening the face, and engage the Rim group for subject separation from the background.
Save this combination as your “Master Talking Head” preset. The setup draws on established three-point lighting principles that remain the industry standard for natural, flattering talent illumination. Because the preset stores group-level parameters, you can recall the entire look with minimal interaction even after moving stands or changing room layout.
The chart below visualizes how key parameters typically shift when moving from this neutral baseline to a product-oriented workflow. It helps clarify why reusing the exact same preset rarely works well and why versioned scenes improve consistency.
Lighting Preset Shifts by Workflow
Relative preset emphasis for Talking Head and Product B-Roll workflows under a one-tap setup approach.
View chart data
| Category | Talking Head | Product B-Roll |
|---|---|---|
| CCT | 2.0 | 1.0 |
| Intensity | 2.0 | 3.0 |
| RGB Role | 1.0 | 3.0 |
Workflow 2: Product B-Roll and High-Impact Visuals
When transitioning to product B-roll, the preset needs deliberate revision rather than direct reuse. Increase overall intensity to reveal surface texture and edge definition, introduce harder top-down shaping from the Key group, and activate Group D (Background) with RGB elements to create brand-aligned mood or visual “pop.”
This shift moves from skin-tone safety to look-driven lighting that can tolerate cooler or more saturated tones. The versioned preset approach—saving the new state as “Project_Product_v2” for example—prevents accidental overwrites of your reliable talking-head baseline. Because functional groups isolate these changes, you can raise intensity on the product without washing out any remaining talent shots that may follow.
Workflow 3: Live Stream Transitions and One-Tap Speed
Live streams benefit most from minimized touchpoints. With functional groups and saved parameters in place, you can move between a “Full Studio” look for host presentation and a “Product Showcase” configuration with far fewer manual steps. The goal is to keep the creator’s attention on the audience instead of the app.
Respect the 8–12 light limit per group to maintain sub-100 ms response times during live interactions. While the Ulanzi Connect app supports rapid preset recall, complex cross-group scenes may still require sequential taps in current versions; treat true one-tap global switching as an aspirational target achieved through careful preset design and testing. This setup directly reduces the friction of inconsistent lighting resets that commonly disrupt live productions.

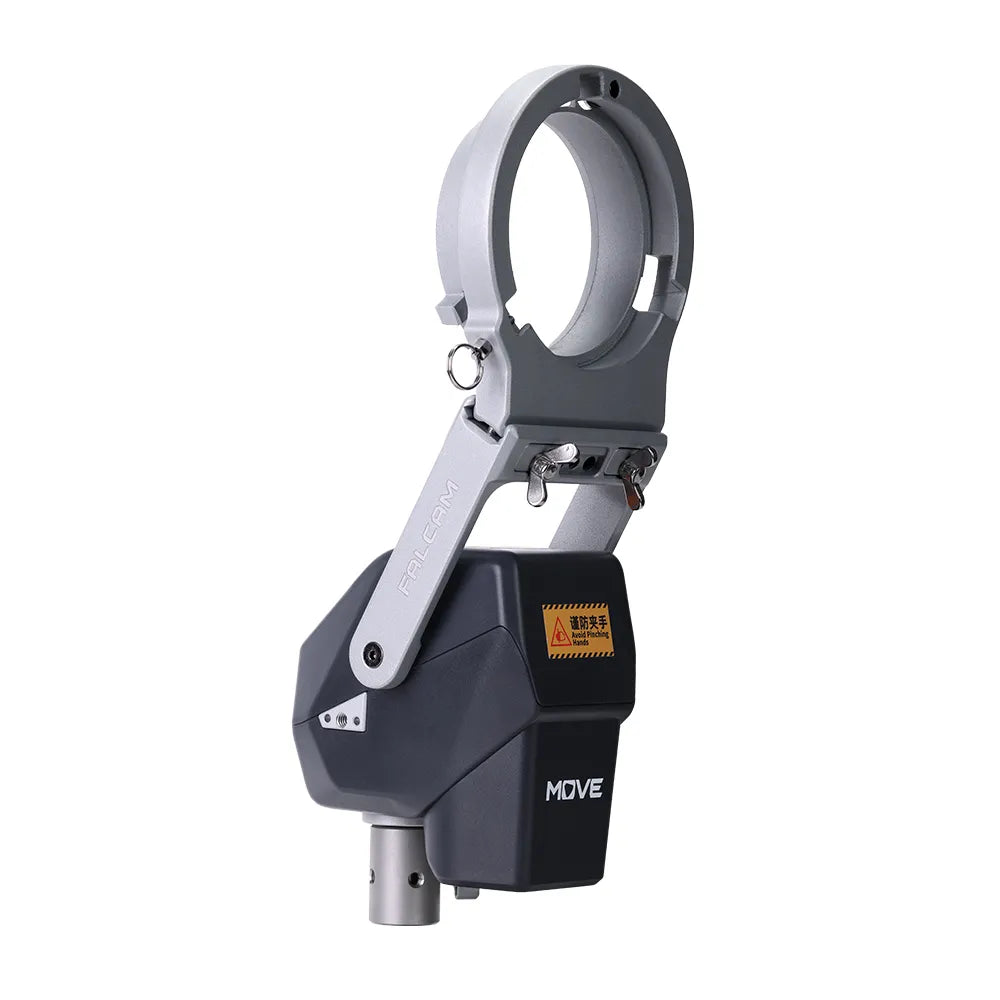

For related portable lighting options that integrate well into these grouped setups, see the Ulanzi FALCAM Move LightGo Remote Control Lighting System or the versatile Ulanzi EC65 65W Portable Bi-Color LED Video Light.
Practical Setup Logic: Naming, Versioning, and Testing
Adopt a consistent naming convention such as “Project_Workflow_Version” (for example, “Vlog_TalkingHead_v2”). This preserves known-good fallbacks and makes it easy to roll back after experimental tweaks. Always follow the 2:1 stability rule: confirm that every COB or pocket LED is securely mounted and balanced on its stand before fine-tuning parameters in the app.
After any “small” adjustment, immediately save a new preset version. As 2026 studio automation trends highlight, versioning reduces the risk of losing a working configuration and supports faster troubleshooting. The guide on studio automation for creators underscores how preserving incremental states mirrors proven manufacturing practices adapted for content production.
Additional practical guidance is available in our Choosing the Perfect Video Lighting guide and the From Amateur to Professional lighting equipment article.
Workflow Validation: The Pre-Shoot Signal Sweep
Before hitting record, run a quick “Signal Sweep.” In the Ulanzi Connect app, toggle each functional group (Key, Fill, Rim, Background) individually to confirm every light responds without noticeable lag or dropped units. This step catches Bluetooth or power issues early.
Complement the sweep with a tactile tug test on any FALCAM mounting plates, especially overhead rigs, to verify mechanical security. In colder 2026 winter conditions, allow aluminum fixtures to acclimate before powering on to protect battery health and wireless connectivity. The same Ulanzi grouping knowledge base that outlines functional organization also recommends these reliability checks for large-scale wireless setups.
For complementary mounting solutions, explore the Light Stands collection or broader VIJIM lighting ecosystem.
FAQ
How many lights can I safely place in one Ulanzi Connect group? Practical testing shows 8–12 lights per functional group maintains responsive control with latency under 100 ms. Exceeding this often introduces noticeable lag during live adjustments or scene recalls.
Does the app support true global one-tap scene switching across all groups? Version 2.4.1 and later allow saved group parameters for fast recall, but a single tap that simultaneously triggers every functional group may still require sequential activation depending on complexity and exact app build. Versioned presets minimize the extra taps.
Should I group lights by their physical position in the room? No. Proximity-based groups reduce creative flexibility because changing one parameter unintentionally affects unrelated elements. Functional grouping by role (Key, Fill, Background) is the recommended standard.
What is the realistic Bluetooth range for reliable multi-light control? Most studio layouts stay well within 15 m for stable performance. Signal remains usable up to approximately 25 m under good conditions, but walls, interference, or maximum group sizes can reduce effective range.
How do I prevent losing a working lighting preset after making small changes? Always save a new versioned preset (e.g., “v2”) immediately after any tweak. This creates a safety net and aligns with 2026 best practices for reducing setup friction in automated studios.
Can the same preset work for both talking-head and product B-roll shots? Rarely. Talking-head lighting prioritizes skin-tone accuracy and softer fill, while product work benefits from higher intensity, directional shaping, and optional RGB accents. Versioned presets let you switch between optimized states without manual re-tuning each time.
