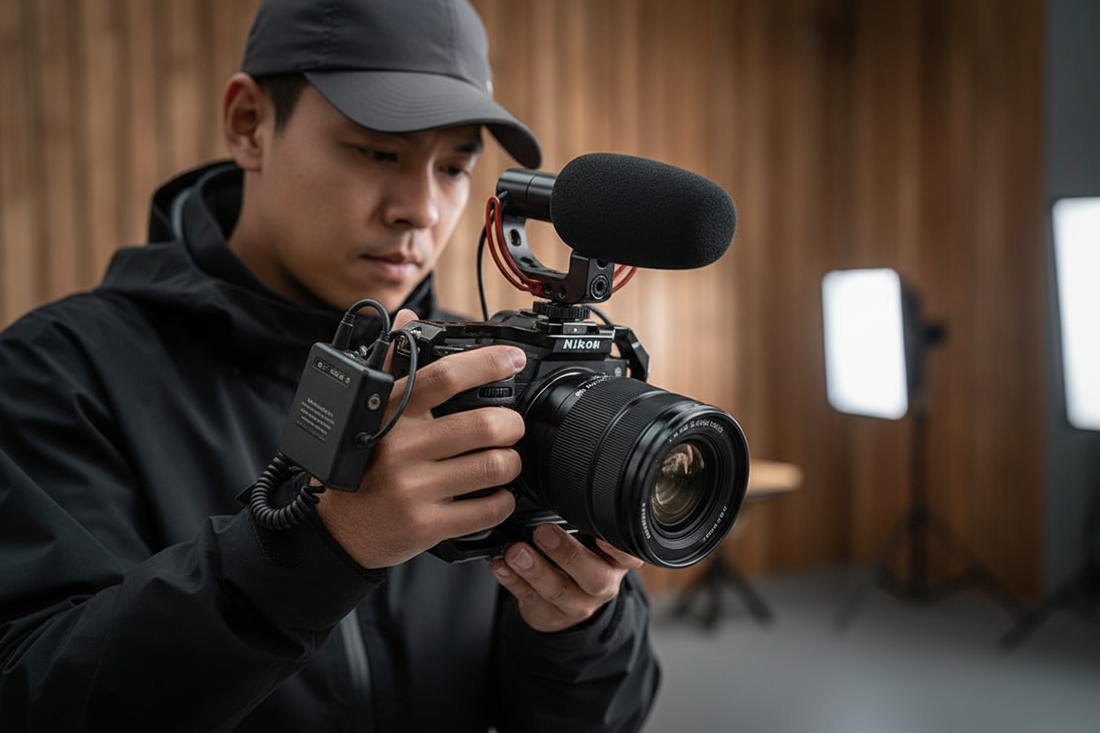

Ergonomic Audio: Deciding Between Top and Side Mic Placements

Quick Recommendation: Top vs. Side Placement

If you are in a hurry, here is the professional consensus for solo rig optimization based on common field configurations:

• Choose Top Placement if you are using a long shotgun microphone for narrative work where audio is the primary focus and you are mostly using a tripod or external monitor.
• Choose Side Placement for run-and-gun, vlogging, or vertical shooting. It lowers the rig's center of gravity to reduce wrist strain and keeps the camera's top dials and flip-out screen unobstructed.
• The Pro Secret: Use a quick-release ecosystem (like the F38 or Claw series) to switch between these positions in seconds rather than minutes.

The Handheld Paradox: Why Placement Dictates Performance

Based on common patterns observed through our interactions with solo documentary creators and field feedback, we have identified a recurring friction point: the conflict between audio fidelity and physical endurance. When filming a twelve-hour day, every gram of equipment and every millimeter of displacement in your rig's center of gravity (CoG) impacts your ability to get the shot.

The choice between mounting a microphone on a top handle versus a side cold shoe is often treated as a matter of convenience. However, our analysis of biomechanical strain suggests this decision fundamentally alters the ergonomics of the camera system. While a top-mounted shotgun microphone offers a direct path for audio, it introduces significant leverage that can lead to premature wrist fatigue. Conversely, a side-mounted receiver improves balance but requires careful mechanical isolation to avoid handling noise.

Biomechanical Analysis: The Physics of Top-Mounted Audio

Weight is rarely the primary cause of fatigue; the true enemy is torque. When you mount a microphone to the top of a camera cage, you increase the horizontal distance between the rig's center of gravity and your wrist pivot point.

Example Calculation: Understanding the Load

To estimate the impact of equipment placement, we use the standard mechanical calculation for torque ($\tau$):

The Formula: $$\tau = m \times g \times L$$

• Mass ($m$): Weight of the equipment (kg).
• Gravity ($g$): Constant ($\approx 9.8 m/s^2$).
• Lever Arm ($L$): Horizontal distance from wrist to the center of gravity (m).

Sample Scenario:

How to use this for your rig: If you move your microphone from a top handle to a side mount, you typically reduce $L$ by 5–10cm. A 10cm reduction in $L$ in the example above would drop the torque to ~6.86 N·m—a nearly 30% reduction in the force required to keep the camera level.

Ergonomic Context (MVC)

In ergonomic modeling, a load of ~9.6 N·m is often used as a heuristic estimate representing roughly 60-80% of the Maximum Voluntary Contraction (MVC) for a static isometric hold in an average adult.

Note: This percentage is a general guideline based on anthropometric averages; individual thresholds vary significantly based on forearm strength and grip technique. The goal is to keep your working load well below your personal MVC to avoid long-term strain.

Logic Summary: This model assumes a static hold. In dynamic movement, inertia increases the "felt weight." Reducing the lever arm is the most effective way to Minimize Wrist Strain (Source: Manufacturer Practical Guide).

Mechanical Isolation vs. Handling Noise

A common misconception is that top-mounting on a camera's hot shoe is the "gold standard." While this aligns the mic with the lens axis, it couples the microphone directly to the camera chassis.

According to technical guides from Audio-Technica (Source: Manufacturer Technical Guide), supercardioid shotgun microphones are highly sensitive to vibrations. When directly coupled to the camera, they often pick up internal motor noise from IBIS or autofocus.

The Signal-to-Noise Challenge

In field observations, we have found that side-mounting a microphone on a dedicated shock-absorbing arm provides superior mechanical isolation. This separation prevents low-frequency "thumps" caused by hand adjustments from traveling through the camera body into the microphone capsule.

Furthermore, we can evaluate placement using the Speech Transmission Index (STI), as defined in IEC 60268-16. While usually a laboratory metric, the principle holds: a side-mounted microphone positioned closer to the subject's mouth in a vlogging scenario often yields higher speech intelligibility than a top-mounted mic that is physically further away.

The Side-Mount Workflow: Ergonomics and Interface Access

For run-and-gun creators, the side-mount strategy preserves the functionality of the camera's interfaces:

• Touchscreen Access: Top-mounted mics often overhang the rear, obstructing flip-out screens.
• Vertical Framing (9:16): As noted in internal rig portability studies (Source: Manufacturer Analysis), a top-mounted mic in vertical mode often interferes with the natural handheld grip, forcing an awkward "claw" position.
• Travel Logistics: Rigs that appear compact and integrated are less likely to be flagged by airline agents for weighing, a critical factor when adhering to IATA Lithium Battery Guidance (Source: International Industry Standard).

Workflow ROI: The Hidden Cost of Mounting Speed

Efficiency in the field translates to financial value. In the 2026 Creator Infrastructure Report (Source: Internal Industry Forecast), we emphasize that "workflow infrastructure" is the foundation of professional output.

We have modeled the potential time savings of switching from traditional 1/4"-20 threaded mounting (compliant with ISO 1222:2010) to modern quick-release ecosystems.

Financial Sensitivity Analysis: The "Value" of this time depends on your professional rate and shoot frequency:

• Conservative ($30/hr, 20 shoots/yr): ~$370 annual value.
• Professional ($120/hr, 80 shoots/yr): ~$5,900 annual value (Modeled).
• High-Volume ($200/hr, 120 shoots/yr): ~$14,800 annual value.

While hobbyist savings focus on "missing the shot," the professional reduction in setup friction is a quantifiable business benefit.

Safety Standards and System Integrity

When building a modular rig, material choice is mission-critical. To prevent equipment failure, we recommend following these engineering heuristics:

Material Rigidity and Thermal Care

Quick-release plates should be precision-machined from Aluminum Alloy (6061 or 7075) for maximum rigidity. However, be aware of the "Thermal Bridge" effect: in extreme cold, aluminum conducts heat away from the camera. We recommend attaching plates indoors before heading into sub-zero environments to protect battery life.

Load Capacity (The 3:1 Rule)

Distinguish between Vertical Static Load (lab rating) and Dynamic Payload. For handheld work, where the rig is subject to sudden movements, we recommend a safety margin of at least 3:1. If your microphone setup exceeds 500g, a reinforced locking mount is preferable over a standard cold shoe.

Decision Framework: Top vs. Side

Pre-Shoot Safety Checklist

1. Audible: Listen for the distinct "Click" when engaging any quick-release mechanism.
2. Tactile: Perform the "Tug Test." Pull firmly on the mic to ensure the locking pin is fully engaged.
3. Visual: Check the locking indicator (often an orange or silver pin). If visible, the system is not secure.

Additionally, manage your cables. A heavy coiled cable can create unwanted torque on a side-mount. Use dedicated cable clamps to maintain audio-first mounting priorities.

Methodology Note: Modeling & Assumptions

The data in this article is derived from scenario-based modeling and industry heuristics, not controlled laboratory studies.

Biomechanical Model Parameters:

• Rig Mass: 2.8 kg (Typical mirrorless setup).
• Lever Arm: 0.35 m (Average distance from wrist to CoG).
• MVC Threshold: 60-80% (Heuristic estimate for sustained isometric hold; results vary by individual).
• Labor Rate: $120 / hr (Professional standard used for ROI modeling).

Boundary Conditions:

• Torque calculations assume a 90-degree hold; angles vary the effective load.
• Audio performance (STI) is highly dependent on ambient acoustic treatment and specific microphone polar patterns.

Disclaimer: This article is for informational purposes. Ergonomic recommendations are general principles and may not be suitable for individuals with pre-existing musculoskeletal conditions. Consult a physiotherapist before making significant changes to your workflow.

References

• ISO 1222:2010 - Photography - Tripod Connections (International Standard)
• Audio-Technica: Guide to Polar Patterns (Manufacturer Technical Guide)
• IEC 60268-16: Speech Transmission Index (International Standard)
• IATA Lithium Battery Guidance (2025) (International Industry Standard)
• The 2026 Creator Infrastructure Report (Internal Industry Forecast)
