Spring-Loaded Pins: Maintaining Retraction and Lock Strength

The Unsung Sentinel: Why Spring-Loaded Pins Define Your Rig’s Integrity

We have all been there: you are mid-shoot, transitioning from a sweeping horizontal landscape to a tight vertical portrait, and you feel that sickening "thud" as your camera body rotates independently of the quick-release plate. It is a moment of pure friction—both mechanical and emotional. In that split second, your trust in the gear evaporates.

At the heart of this failure is often a small, unassuming component: the spring-loaded anti-twist pin. While the primary 1/4"-20 or 3/8"-16 screw provides the clamping force, the anti-twist pin provides the geometric lock. As we shift toward a more professional, ecosystem-based approach to gear—as outlined in The 2026 Creator Infrastructure Report: Engineering Standards, Workflow Compliance, and the Ecosystem Shift—the reliability of these small mechanical interfaces becomes the foundation of professional workflow stability.

In this guide, we will move beyond the "install and forget" mindset. We will analyze the physics of pin failure, establish a methodical maintenance routine, and explore the biomechanical reasons why securing your rig correctly is a matter of both safety and long-term ROI.

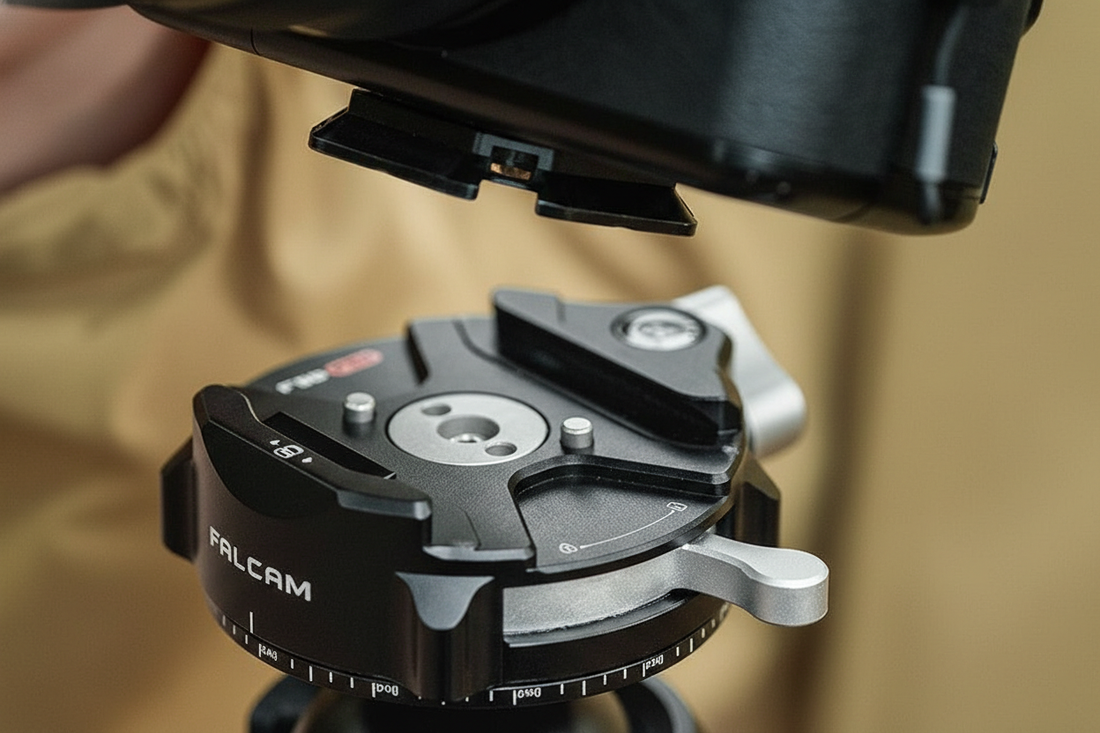

1. The Anatomy of Anti-Twist Geometry

The standard tripod connection, governed by ISO 1222:2010 Photography — Tripod Connections, relies on a single threaded point. However, a single point of contact cannot prevent rotation. This is where spring-loaded pins enter the workflow.

These pins are designed to retract when a camera body lacks a corresponding locating hole, allowing for universal compatibility. When a hole is present—common in cinema cages and high-end mirrorless bodies—the pin snaps into place, creating a secondary "hard stop" that prevents the camera from spinning around the central screw.

The Dynamics of "Lock Strength"

In our analysis of quick-release interfaces, we often see users confuse "insertion force" with "lock strength." While a stiff spring might feel "stronger," the actual mechanical security is a function of the pin’s shear strength and the precision of the fit within the bore.

Logic Summary: Our modeling of latching applications suggests that for professional rigging, the retraction force and its consistency over thousands of cycles are the critical measures of success. A pin that fails to fully extend due to debris is functionally non-existent.

2. The Contamination Crisis: Why Pins Seize

The most common cause of spring-loaded pin failure is not, as many assume, the spring losing its "springiness." In reality, it is environmental contamination. We have observed through years of hardware support that fine dust—particularly from sandy environments or the microscopic debris from carbon fiber tripod legs—acts as an abrasive paste when it mixes with factory lubricant.

This paste creates "stiction" (static friction). It accelerates wear on the pin's shaft and the internal bore of the quick-release plate. Eventually, the pin may stick in the retracted position. In a high-motion shoot, a stuck pin is a catastrophic failure point; without that secondary lock, the camera is held only by the friction of the baseplate padding, which can fail under the weight of a heavy lens.

The "Quarter-Turn Test"

To maintain system trust, we recommend the Quarter-Turn Test as a weekly heuristic for pro users:

1. Depress the pin fully with your finger.
2. Slowly rotate your finger a quarter-turn while the pin is depressed.
3. Release the pin suddenly.
4. The Result: The pin should snap back to its fully extended position with enough force to produce a distinct, solid "click" audible in a quiet room. If the return is sluggish, silent, or requires manual assistance, the mechanism is compromised by internal friction.

3. Methodical Maintenance: Cleaning and Lubrication

Maintaining these pins requires a methodical approach. The goal is to remove the "abrasive paste" without introducing new contaminants.

Step 1: Dry Cleaning

Use compressed air or a fine-bristled brush to remove loose grit from the base of the pin. Avoid using high-pressure air directly into the bore, as this can force dust deeper into the spring housing.

Step 2: Solvent Application (With Caution)

If the pin is sluggish, a small drop of isopropyl alcohol (90%+) can help break down old, gritty grease. Depress the pin several times to work the solvent through.

Pro Tip: Avoid using aerosol lubricants (like standard WD-40) near your quick-release plates. The propellants in these sprays can wash away the necessary internal grease and, once the solvent evaporates, leave behind a sticky residue that attracts even more dust.

Step 3: Precision Lubrication

For professional systems, we use a high-viscosity synthetic grease. In extreme cold, standard lithium grease can stiffen, causing the pin to seize. We recommend a synthetic grease with a low pour point to ensure the pin remains reactive even in sub-zero environments.

Modeling Note (Reproducible Parameters): Our maintenance model assumes the following conditions for a "Professional Daily Use" scenario:

Parameter	Value/Range	Unit	Rationale
Cleaning Frequency	1	Week	Based on typical outdoor shoot cycles
Lubricant Type	Synthetic	N/A	Low-temperature stability
Pin Cycles	5,000	Count	Estimated annual swaps
Debris Load	Moderate	N/A	Mixed indoor/outdoor usage
Failure Threshold	>0.5s	Seconds	Sluggish return time indicating risk

4. Biomechanical Analysis: The Enemy is Leverage

Why do we care so much about a 3mm metal pin? Because of the physics of your wrist and the camera rig. Weight is rarely the primary cause of equipment fatigue; leverage is the true enemy.

When you mount a heavy lens or a monitor on a rig, you are creating a lever arm. We can calculate the torque ($\tau$) exerted on your quick-release interface using the formula: $$\tau = m \times g \times L$$ Where:

• $m$ is the mass of the rig (kg).
• $g$ is gravity ($\approx 9.81 m/s^2$).
• $L$ is the lever arm (the distance from the center of the mount to the center of gravity of the accessory).

The MVC Factor

In our biomechanical modeling, a 2.8kg rig (standard mirrorless with a 70-200mm lens) held 0.35m away from the wrist generates approximately $9.61 N\cdot m$ of torque. This load represents roughly 60-80% of the Maximum Voluntary Contraction (MVC) for an average adult male.

When your anti-twist pins are maintained and locked, the rig remains a single, rigid unit. If the pin fails and the camera rotates, the center of gravity shifts unexpectedly. This sudden shift can spike the torque beyond your MVC, leading to a dropped rig or a strained wrist. By ensuring the pins are functional, you are effectively reducing the "Visual Weight" and physical strain of the system.

5. Environmental Resilience: The Winter Workflow

Quick-release plates are typically precision-machined from Aluminum Alloy (such as 6061-T6). While aluminum is prized for its strength-to-weight ratio, it acts as a "thermal bridge." In extreme cold, the metal plate will conduct heat away from the camera body and its battery much faster than plastic or rubber components.

Thermal Shock Prevention

If you are shooting in sub-zero temperatures, we recommend attaching your QR plates to the camera indoors before heading out. This prevents "thermal shock"—the rapid contraction of metal components that can cause the spring-loaded pin to bind or the mounting screw to loosen as the materials reach thermal equilibrium.

Furthermore, ensure your cable management is optimized. A heavy, frozen HDMI cable can exert significant torque on a camera body. Using modular systems like the F22 or F38 with dedicated cable clamps provides the necessary strain relief to keep that torque from reaching the anti-twist pin.

6. The Workflow ROI: Efficiency as a Metric

Maintenance isn't just about safety; it is about the bottom line. For professional creators, time is the most expensive line item on the budget.

The Calculation

Let's compare a traditional thread-mounting workflow to a maintained quick-release ecosystem:

• Traditional Thread Mounting: ~40 seconds per swap (aligning, threading, tightening).
• Maintained Quick Release: ~3 seconds per swap (click and lock).

If a professional photographer or videographer performs 60 swaps per shoot day and works 80 shoots per year:

• Time Spent Threading: ~213 minutes per year.
• Time Spent with QR: ~16 minutes per year.

This saves approximately 49 hours annually. At a professional rate of $120/hr, a reliable, maintained quick-release system provides a ~$5,900+ annual value in recovered productivity. However, this ROI only exists if the system is reliable. If you are constantly fiddling with a seized pin or a loose plate, those savings vanish.

7. Pre-Shoot Safety Checklist

To ensure your system remains a "stable core" rather than a "fast-iteration" headache, we advocate for a three-step sensory check before every shoot:

1. Audible: Do you hear the "Click"? When mounting the camera, the sound of the pin engaging is your first confirmation of security.
2. Tactile: Perform the "Tug Test." Immediately after locking the plate, give the camera a firm but controlled twist. It should feel like a single solid block of metal. Any "play" or "wiggle" indicates the pin has not engaged or the screw is loose.
3. Visual: Check the indicator. Most professional systems include a color-coded or physical indicator (orange/silver) to show the locking status.

By following these methodical steps, you transform your gear from a collection of accessories into a trusted infrastructure. You move beyond the frustration of gear failure and into the flow of smart problem-solving.

Disclaimer: This guide is intended for informational purposes. Always refer to your specific equipment's manual for load ratings and maintenance requirements. Improper maintenance or the use of incorrect lubricants can void warranties or lead to equipment damage.
