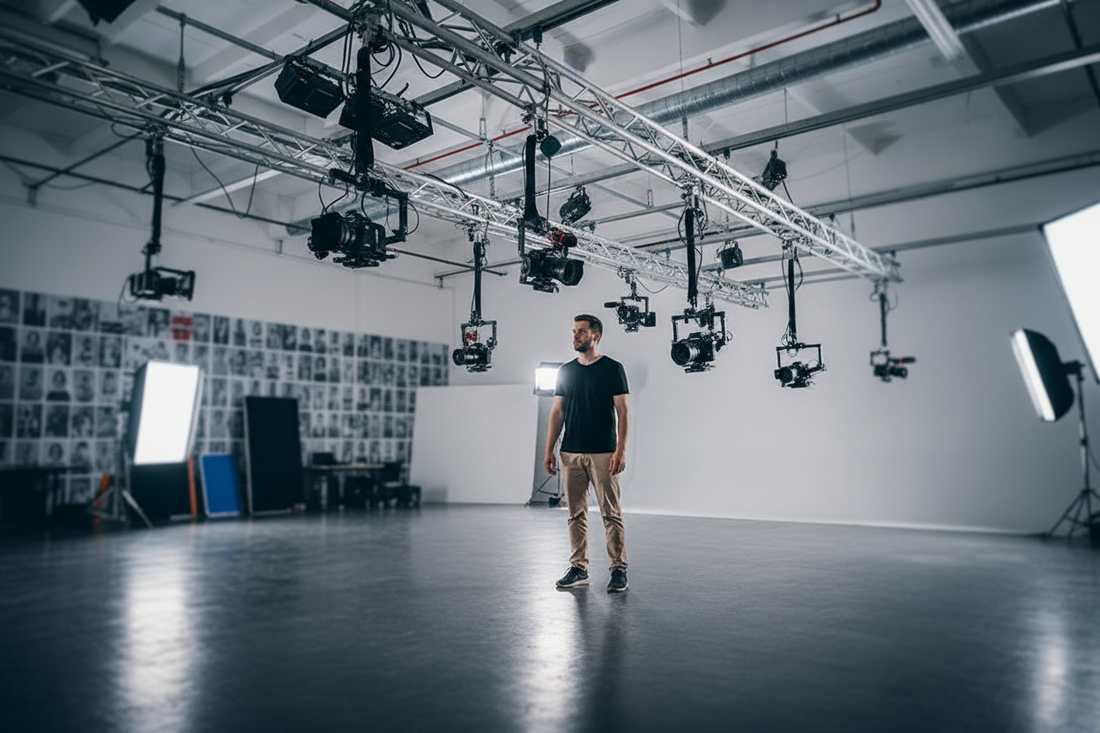

The Strategic Shift: How Infrastructure Influences Professional Output
Executive Summary: In professional production, the "infrastructure layer"—the engineered systems supporting the workflow—often dictates the ceiling of a studio's efficiency. While C-stands offer modular flexibility, overhead rail systems provide a structural solution that minimizes floor clutter and operational friction.
In the modern creator economy, the distinction between an amateur setup and a high-volume production house is frequently found in the "infrastructure layer." As studio turnover rates increase, creators face a critical strategic decision: continue relying on the modular but floor-cluttering mobility of C-stands or invest in the structural permanence of an overhead rail system.
This choice involves a calculation of risk, ergonomic health, and operational ROI. For a professional studio hosting more than three shoots per week, the friction of repositioning heavy stands can become a primary bottleneck. Based on common patterns observed in high-stakes studio environments, the decision often hinges on what we term the "inverse square rule of cable management"—a heuristic suggesting that every C-stand added to a set can exponentially increase the complexity of managing attendant power and data cables. An overhead system centralizes this complexity upward, potentially transforming the studio's safety profile and creative velocity.
Static Load vs. Dynamic Reality: Engineering for Peak Impact
Executive Summary: Support systems must be rated for dynamic forces, not just static weight. Abrupt stops or movements can double or triple the effective load on a mounting point.
When selecting support systems, the industry often focuses on static load—the weight a stand holds while stationary. However, professional production is rarely static. A camera pan, a rapid trolley stop, or an accidental bump to a boom arm introduces dynamic forces that can significantly exceed the equipment's base weight.
According to the ISO 1222:2010 Standard (Photography — Tripod Connections), standardized screw connections provide a baseline for compatibility, but they do not account for the kinetic energy of a moving cinema rig.
Modeling Note (Dynamic Force Heuristic): While a 10kg rig is static at rest, our engineering modeling suggests that a rapid stop (e.g., a trolley hitting a rail end-stop at 0.5 m/s with a 0.05s deceleration) can generate a peak force equivalent to approximately 20-30kg of load.
Because variables like "jerk" and impact duration are difficult to predict in the field, we recommend a conservative safety factor of at least 3x for any overhead or boomed system. Professional rail specifications, such as those provided by IWEISS (Manufacturer Pipe Grid specs), emphasize that these installations require professional structural analysis of the ceiling to handle these concentrated dynamic loads.
The Economic Argument: Calculating Workflow ROI
Executive Summary: While overhead rails require a higher initial investment, they can offer significant labor savings in high-volume environments, potentially breaking even within 24 to 36 months.
For many studio owners, the upfront cost of an overhead rail system (often exceeding $8,000 for a professional installation) seems prohibitive compared to a $150 C-stand. However, a strategic view requires a lifecycle cost analysis.
Based on internal workflow modeling for a commercial studio handling 156 shoots annually, the time saved by switching from traditional floor-based mounting to a quick-release overhead rail system is substantial.
| Parameter | C-Stand (Thread Mount) | Overhead Rail (Quick Release) | Rationale |
|---|---|---|---|
| Repositioning Time | ~45 seconds | ~3 seconds | Includes leg adjustment vs. trolley slide |
| Annual Time Saved | 0 hours (Baseline) | ~27 hours | Based on 15 equipment swaps per shoot |
| Labor Cost Savings | $0 | ~$5,050 | At an estimated crew rate of $185/hour |
| Break-even Point | N/A | ~263 shoots | Based on $8,500 initial CAPEX (Estimated) |
While the first-year ROI may appear negative, the secondary benefits—such as the mitigation of floor-based trip hazards—often justify the expenditure for permanent facilities. Furthermore, The 2026 Creator Infrastructure Report (Ulanzi Industry Analysis) suggests that professional brands are increasingly prioritizing these stable infrastructure layers to ensure long-term ecosystem stability.
Biomechanics and the Physical Cost of Fatigue
Executive Summary: Overhead systems mitigate the "lever arm" effect, significantly reducing the torque exerted on a technician's body compared to traditional boom-arm setups.
One of the most critical factors in the C-stand vs. Rail debate is the physiological impact on the crew. Setting up a heavy cinema rig on a boomed C-stand is a high-torque maneuver.
We apply the Wrist Torque Formula to estimate this strain: $$\tau (Torque) = m (Mass) \times g (Gravity) \times L (Lever Arm)$$
In a common scenario where a technician handles a 12.5kg lighting rig at a 1.8m extension (a standard C-stand boom arm length), the setup generates approximately 220.7 N·m of torque. According to ISO 11228-3 (Biomechanical Standards for Manual Handling), this load can far exceed the safe limits for repetitive manual tasks, increasing the risk of acute injury or cumulative fatigue.
Overhead rail systems mitigate this lever arm by allowing the gear to be moved along a balanced trolley, reducing the physical effort to a horizontal push. This shift in ergonomics can help preserve the creative energy of the crew and allow for more complex lighting setups that might otherwise be avoided due to physical "friction."
Interface Sovereignty: The Role of Arca-Swiss and Quick Release
Executive Summary: Standardizing on a single, high-tolerance interface (like Arca-Swiss) is essential for maintaining safety and speed when moving equipment between different support systems.
Regardless of whether you choose stands or rails, the critical failure point in most workflows is the interface. Many professionals standardize on the Arca-Swiss Dovetail system—a de facto industry standard—to ensure gear can move between overhead rails and floor stands without adapter plates.
Key Technical Considerations:
- Material Integrity: For high-stakes environments, we recommend precision-machined 6061 or 7075-grade Aluminum Alloy. While carbon fiber is excellent for vibration damping in tripod legs, it often lacks the machining tolerance required for a zero-play quick-release interface.
- Thermal Management: Aluminum plates can act as a "thermal bridge." In extreme cold, they can conduct heat away from the camera base. Practical Tip: Attach plates to the camera indoors before heading into cold environments to minimize battery drain.
Safety, Compliance, and Liability
CRITICAL COMPLIANCE NOTICE: In a professional studio, safety is a legal and structural requirement. Permanent overhead installations must never be performed without a formal evaluation by a licensed structural engineer.
When using LED lighting on overhead grids, adherence to IEC 62471:2006 (Photobiological Safety) is recommended to protect the eyes of the talent and crew. For color consistency, professionals look for fixtures that meet EBU R 137 / TLCI-2012 standards.
For mobile studios, compliance with IATA Lithium Battery Guidance is necessary to ensure that power solutions can be legally and safely transported to location shoots.
Pre-Shoot Safety Checklist for Overhead Rigging
- Audible Confirmation: Always listen for the distinct "Click" when engaging any quick-release mechanism.
- The "Tug Test": Perform a manual downward pull-test immediately after mounting to ensure the locking pin is fully seated.
- Visual Verification: Check the status of the locking indicator (often orange or silver) to confirm the system is in the "locked" position.
- Secondary Tethering: Mandatory: Always utilize a secondary safety cable for any equipment mounted overhead, as detailed in our Overhead Rig Safety & Tethering Guide.
- Cable Strain Relief: Use dedicated clamps to ensure that heavy cables do not exert unwanted torque on the mounting plate.
The Hybrid Reality: A Strategic Compromise
While the benefits of an overhead rail system are clear, few professional studios operate entirely without C-stands. The standard approach for a modern, efficient studio is often a 70/30 split:
- Permanent Rails: Handle the "heavy lifting"—key lights, cyclorama top lighting, and central camera positions.
- C-Stands: Remain essential for peripheral tasks, such as positioning reflectors, flags, or providing a mobile solution for location work.
Ultimately, the choice between overhead rails and C-stands is a decision about the scale of your production. By investing in a stable infrastructure layer and standardizing your interfaces, you can move toward a "ready-to-shoot" ecosystem that prioritizes safety, speed, and professional reliability.
Disclaimer: This article is for informational purposes only. Studio rigging and overhead installations involve significant structural risks. Do not attempt permanent installation without consulting a qualified structural engineer. This content does not guarantee 100% safety; users assume all risks associated with equipment mounting and installation.
Methodology & Assumptions:
- ROI Calculations: Based on a deterministic model using estimated industry crew rates ($185/hr) and a high-volume shoot schedule (156/year). Individual results will vary based on local labor costs and specific gear configurations.
- Torque Analysis: Applies ISO 11228-3 principles for a 12.5kg load at 1.8m.
- Data Sources: Figures are derived from a combination of international standards (ISO/IEC), manufacturer specifications (IWEISS), and the 2026 Creator Infrastructure Report (Ulanzi).
