Maintaining Modular Joints After High-Intensity Crew Usage
In a professional production environment, the equipment is the lifeblood of the operation. While a solo creator might treat their gear with delicate precision, a crewed environment is a different beast entirely. We have observed through years of technical support and on-set audits that crewed productions subject modular joints—the critical connection points of your rig—to significantly higher torque and more frequent swap cycles than any solo setup.
When a camera moves from a tripod to a gimbal, then to a handheld cage, and finally to a car mount sixty times a day, the mechanical stress accumulates. This guide establishes a methodical maintenance framework designed to ensure your modular infrastructure remains a stable, trustworthy layer, even under the most grueling professional schedules.
The Hidden Enemy: Fretting Fatigue and Subsurface Failure
Conventional wisdom suggests that corrosion or visible surface wear are the primary killers of modular joints. However, our pattern recognition from high-intensity equipment handling reveals a more insidious culprit: fretting fatigue.
Fretting occurs when two tightly connected surfaces—such as a quick-release plate and its receiver—undergo microscopic, cyclic movements under load. In a crewed environment, where a heavy cinema rig is constantly being repositioned, these micro-vibrations are inevitable. According to research on fretting fatigue at bolt joints, this process creates subsurface cracks that are completely invisible to the naked eye.
By the time you see a crack on the surface of an aluminum joint, the structural integrity may have already been compromised. This is why a "visual check" is insufficient for professional crews. We advocate for a schedule-based maintenance approach that assumes wear is happening beneath the surface, particularly in high-load scenarios.
Modeling Note (Fretting Risk): Our risk assessment assumes a "High-Volume Documentary Crew" profile. In this model, the cumulative stress of 60+ swaps per day creates a fatigue profile that accelerates replacement needs for load-bearing components by approximately 3x compared to hobbyist use.
Biomechanical Analysis: Why Leverage is the Real Enemy
It is a common mistake to focus solely on the weight of the camera. As experts in modular rigging, we emphasize that leverage is the true stressor on both your equipment's joints and your crew's health.
To understand the stress placed on a modular joint, we use the standard biomechanical formula for Torque ($\tau$): $$\tau = m \times g \times L$$ (Where $m$ is mass in kg, $g$ is gravity 9.81 m/s², and $L$ is the lever arm or distance from the pivot in meters).
Scenario: The 4.2kg Cinema Rig
Consider a professional documentary rig weighing 4.2kg (including a cinema camera, zoom lens, and battery). When an operator holds this rig 0.28m away from the wrist pivot:
- Calculated Torque: $\approx 11.5 N\cdot m$
- MVC Threshold: This exceeds the conservative Maximum Voluntary Contraction (MVC) limit of ~10.5 N·m for many operators.
This level of torque doesn't just fatigue the human; it puts immense "prying" stress on the quick-release interface. This is why we recommend the Ulanzi Falcam F22 & F38 & F50 Quick Release Camera Cage V2 for Sony A1/A7 III/A7S III/A7R IV 2635A. By using a modular cage system, you can move accessories like monitors and microphones closer to the center of gravity using F22 mounts, effectively shortening the lever arm ($L$) and reducing the torque on both the operator and the primary F38 or F50 joint.
The Economic Rationale: Workflow ROI
Investing in a high-end modular ecosystem like Falcam is often viewed as a "convenience" expense. However, our scenario modeling for professional crews demonstrates that it is a high-yield financial investment.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Annual Shoots | 120 | shoots/year | Professional documentary/commercial schedule |
| Swaps per Shoot | 60 | swaps/shoot | Frequent transitions (Tripod/Gimbal/Handheld) |
| Threading Time | 42 | seconds | Traditional screw mounting under pressure |
| Quick Release Time | 5 | seconds | F38/F50 system with safety verification |
| Hourly Crew Rate | $145 | USD/hr | Blended professional rate |
The Result: Adopting an F38/F50 ecosystem saves approximately 74 hours of billable time annually. At a rate of $145/hr, this translates to $10,730 in annual cost avoidance.
As noted in The 2026 Creator Infrastructure Report, these structural efficiencies allow crews to capture more footage within the same production window, turning "gear maintenance" into a profit-protection strategy.
The Maintenance Protocol: Preventing "Galling" and Mechanical Failure
Aluminum-on-aluminum threads, common in cages and articulating arms, are susceptible to a phenomenon known as galling (or cold welding). This occurs when the oxide layer on the aluminum is breached by high pressure, causing the two surfaces to fuse together.

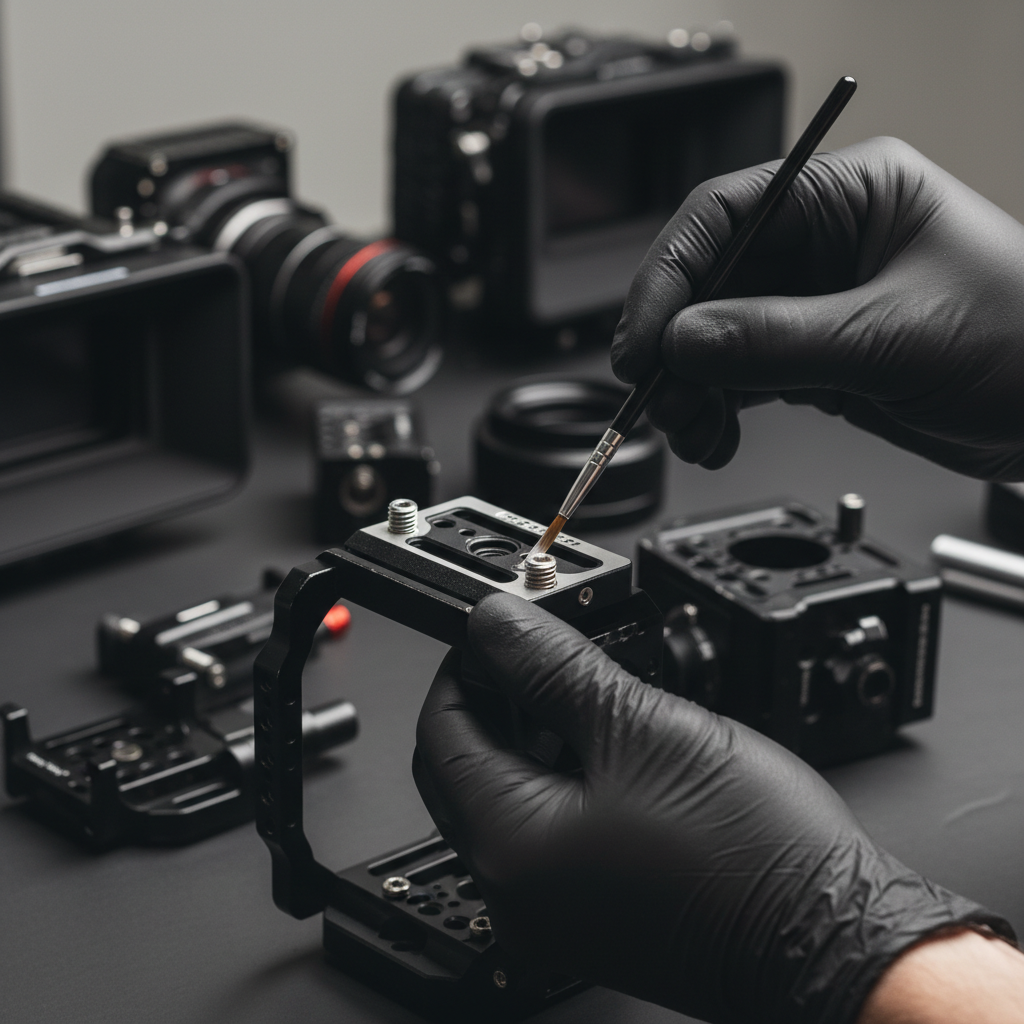

1. Lubrication and Thread Care
To prevent galling, we recommend a light application of a dry-film PTFE lubricant on all clean 1/4"-20 and 3/8"-16 threads every few months. Unlike wet oils, dry PTFE does not attract grit or dust, which can act as an abrasive in the field.
2. The "Two-Person Rule" for Load-Bearing Joints
In crewed environments, the risk of "operator error" increases with fatigue. We implement a Two-Person Rule for any joint supporting over 2kg:
- Operator A sets the tension and locks the joint.
- Operator B performs a "Tug Test" and verifies the locking pin status (e.g., checking for the orange/silver indicator on F38 bases).
3. Rubber Pad Inspection
The anti-slip rubber pads on plates like the Ulanzi Falcam F38 Quick Release for Camera Shoulder Strap Mount Kit V2 3142 are critical for preventing "twist" or deflection. However, these pads degrade over time due to friction and oils from hands.
- The Pro Tip: Don't just look for cracks. Feel the texture. If the rubber has become "hardened" or "glassy," it has lost its coefficient of friction and should be replaced.
Component-Specific Deep Dives
F38 vs. F50: Static Load vs. Dynamic Payload
The F38 system is often cited for its 80kg load capacity. It is vital to understand that this is a Vertical Static Load rating. In the real world, "Dynamic Payload"—the force generated when a rig is swung on a gimbal or carried during a run-and-gun shoot—is much lower.
For cinema rigs exceeding 3kg, we recommend moving to the F50 system or utilizing the F38 Anti-Deflection versions. The larger surface area of the F50 provides a more stable foundation against the lateral forces generated during high-intensity movement.
The Leveling Base and the "Bushing Trap"
The Ulanzi TT37 Mini Leveling Base for Tripod Head T065GBB1 is an essential tool for maintaining a level horizon on uneven terrain. However, we've found that the single most overlooked maintenance item is the 1/4" to 3/8" bushing adapter often used in these setups. Even a slight "play" in this adapter is magnified by long lenses, leading to perceived instability. Ensure these bushings are torqued down with an Allen wrench, not just finger-tightened.
Magic Arms and Crab Clamps
For mounting monitors or wireless transmitters, the Ulanzi R011a Magic Arm with Crab Clamp T018 offers incredible flexibility. Because these arms rely on friction, the internal damping fluid can thin over time when used in variable temperatures. If you notice a "stutter" or "slip" in the arm's movement even when locked, it's a sign that the friction surfaces need cleaning or the unit requires a factory service cycle.
Environmental Logistics: Thermal Shock and Winter Operations
The aluminum alloy (typically 6061 or 7075) used in Falcam plates is a highly efficient thermal bridge. In extreme cold, an aluminum plate will rapidly conduct heat away from the camera's base and battery, potentially shortening your runtime.
The Winter Workflow:
- Always attach your QR plates to the camera indoors at room temperature before heading into the cold. This minimizes "metal-to-skin" shock and allows the plate to act as a thermal buffer for a short duration.
- Check the IATA Lithium Battery Guidance if your modular rig involves large V-mount batteries, as temperature fluctuations can impact the chemistry and safety of high-capacity cells during transport and use.
The Pre-Shoot Safety Checklist
To maintain system reliability, every crew lead should enforce a three-point check for every modular connection:
- Audible: Did you hear the "Click" of the spring-loaded lock?
- Tactile: Perform the "Tug Test"—pull the camera away from the mount to ensure the latch is fully engaged.
- Visual: Is the safety lock engaged? On Falcam systems, ensure the orange indicator is in the "locked" position.
By standardizing these checks, you mitigate the "tail-risk" of a catastrophic drop. As we discuss in The Drop Zone: Identifying Failure Points in High-Speed Swaps, most failures are not mechanical breakages but rather "incomplete engagements" caused by haste.
Building an Elastic Rig
The ultimate goal of modular maintenance is to support an "elastic" rig—one that can scale from a solo run-and-gun setup to a full crewed production without losing structural integrity. By standardizing on a reliable interface like the Falcam ecosystem, you ensure that every handle, monitor, and wireless module can be swapped instantly without hunting for specialized tools.
For further reading on optimizing your setup, see our guide on Standardizing Your Rig: Eliminating Hybrid Workflow Friction.
Disclaimer: This article is for informational purposes only. High-load rigging involves inherent risks to equipment and personnel. Always follow manufacturer-specific torque ratings and load limits. For safety-critical applications, consult a certified grip or production safety officer.
