Heat Trap Risks: Modifier Ventilation for Long-Form Video

The Invisible Bottleneck: Why Thermal Management Matters in Long-Form Video

In the world of solo content creation and prosumer video production, we often obsess over resolution, bitrates, and dynamic range. However, a silent performance killer often lurks just inches away from your camera lens: heat. As high-output Chip-on-Board (COB) LEDs become the standard for "creator infrastructure," the way we modify that light—using softboxes, snoots, and grids—creates a complex thermal challenge.

For long-form content like hour-long interviews or multi-hour live streams, a lighting system is not just a bulb; it is a thermal engine. When you attach a restrictive modifier to a high-output LED, you aren't just shaping light; you are potentially building a heat trap. Our observations from technical support and hardware maintenance patterns suggest that thermal mismanagement is a leading cause of premature color shift and hardware degradation in portable lighting systems.

This guide explores the mechanical and physical realities of heat traps, providing you with a methodical framework to ensure your lighting remains stable, safe, and professional throughout the longest shoots.

The Physics of the "Heat Trap" in Lighting Modifiers

Traditional tungsten lights radiated a significant portion of their heat forward as infrared energy. Modern LEDs are different. They are highly efficient but generate concentrated heat at the "junction"—the point where the semiconductor meets the substrate. This heat must be moved backward and dissipated into the air via conduction and convection.

Convection vs. Insulation: The Softbox Micro-climate

When you mount a softbox or a tightly sealed beauty dish, you essentially wrap your light source in an insulated blanket. In a static indoor environment, a 100W COB LED can cause internal temperatures within a modifier to exceed 70°C (158°F) in as little as 30 minutes.

Air Stagnation: Most portable modifiers are designed for light spill control, not airflow. Without active ventilation, the hot air surrounding the LED housing becomes trapped, reducing the "cooling delta" (the difference between the light's temperature and the surrounding air).
Thermal Resistance (R-Value): Stacking modifiers, such as adding a honeycomb grid over a double-diffused softbox, multiplicatively increases thermal resistance. This insulation prevents the light's internal fans from drawing in cool air, forcing the system to recirculate increasingly hot air.

Logic Summary: Our thermal analysis assumes a standard 100W COB LED operating at 100% power within a 60cm (24-inch) parabolic softbox. We estimate that every additional layer of diffusion or grid increases internal ambient temperature by approximately 5–8°C due to restricted airflow (based on common industry heuristics).

Quantifying the Risk: Junction Temperature and Color Integrity

The most immediate casualty of a heat trap isn't usually the light bulb "burning out"—it is the degradation of light quality. According to the Television Lighting Consistency Index (TLCI-2012), color accuracy is paramount for professional video workflows.

The "Amber Shift" and Spectral Stability

LEDs rely on a phosphor coating to convert blue light into white light. As the junction temperature rises beyond the manufacturer's specified limits, these phosphors can become less efficient. This results in a noticeable "amber shift," where the color temperature of the light warms up and the green/magenta tint fluctuates.

For creators using the AMPAS Spectral Similarity Index (SSI) to match multiple light sources, thermal instability is a nightmare. A light that measures 5600K at the start of an interview may drift to 5300K by the 45-minute mark if the heat is not managed. This makes color grading in post-production significantly more difficult and time-consuming.

Hardware Longevity

While advanced LEDs include thermal throttling to prevent immediate failure, operating at the edge of these limits accelerates component aging. High-quality heat sinks, such as those using cold-forged copper with thermal conductivities up to 390W/m·K, can only do so much if the surrounding air is already saturated with heat.

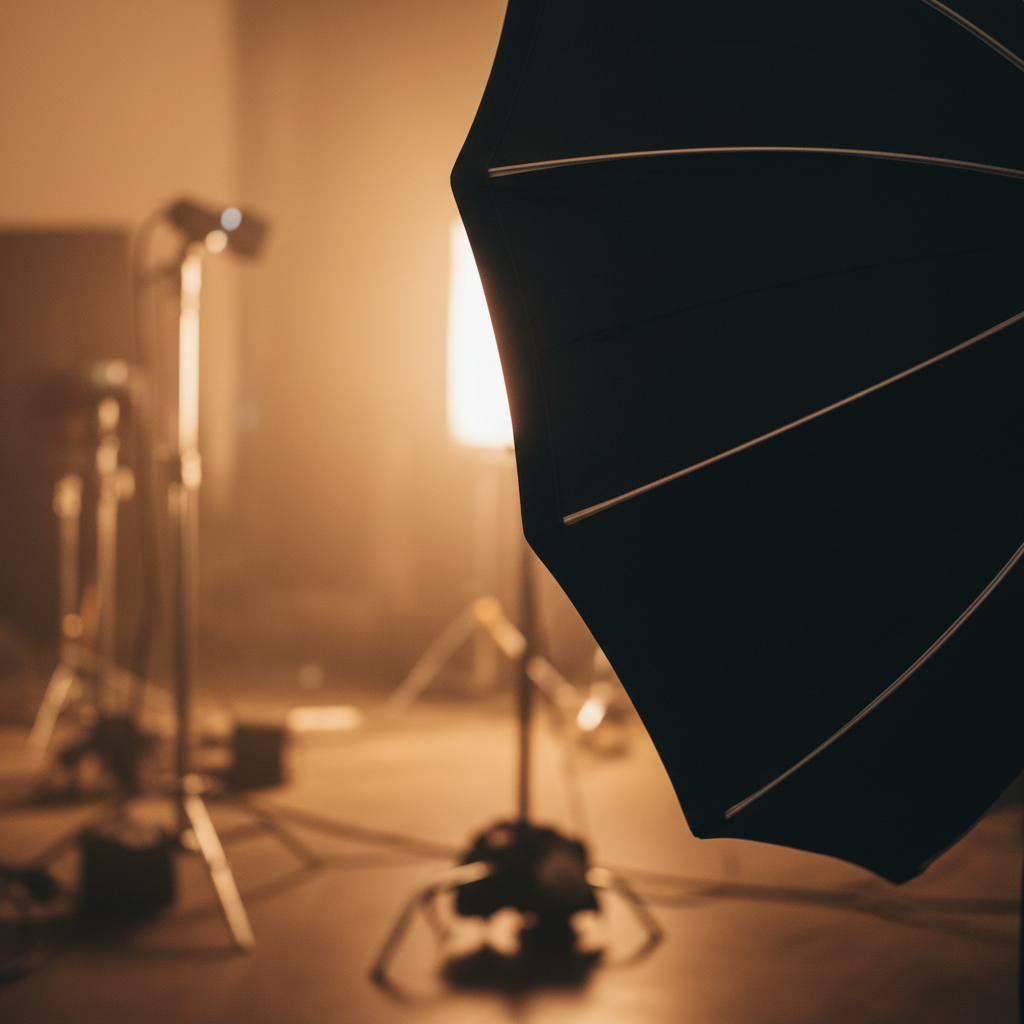

A professional studio lighting setup featuring a high-output LED COB light with a large parabolic softbox. The scene is cinematic, showing the mechanical connection between the light and the modifier, emphasizing the robust build and ventilation gaps.

Practical Field Heuristics: The Hand Test and Derating Rules

Expert Directors of Photography (DPs) don't always rely on laser thermometers; they use pattern recognition and simple physical checks. Based on common patterns from professional field reports, we recommend two primary heuristics for managing heat during long-form video.

1. The "Hand Test"

After 15 minutes of continuous operation at full power, perform a quick tactile check. If you cannot comfortably keep your hand on the light’s housing near the modifier mount for at least 10 seconds, the ventilation is insufficient. This indicates that the internal fans are struggling to overcome the thermal resistance of the modifier.

2. The 20-30% Derating Rule

For long-form interviews (60+ minutes) in enclosed spaces, a common approach is to derate the light's maximum output. If you are using a restrictive modifier like a snoot or a grid-heavy softbox, set your light to 70–80% of its maximum power. This creates "thermal headroom," allowing the light to maintain color stability without hitting its internal thermal ceiling.

Ambient Temperature Delta

It is critical to remember that a modifier setup that is safe in a 20°C (68°F) studio can become a hazard in a 30°C (86°F) outdoor tent. The reduced cooling delta means the light has to work significantly harder to dissipate the same amount of energy.

Modeling Thermal Performance (Logic Summary)

To help you visualize the impact of modifiers on LED performance, we have modeled a hypothetical scenario based on standard industry parameters.

Parameter	Value / Range	Unit	Rationale
COB LED Power	100	Watts	Standard prosumer output
Ambient Temp	22 - 25	°C	Typical indoor studio
Internal Air Vol	~0.15	m³	60cm Parabolic Softbox
Max Junction Temp	85	°C	Typical safety threshold
Estimated Delta	+45 - 50	°C	Observed rise in sealed modifiers

Boundary Conditions: This model assumes static air (no external fans/AC) and a standard double-layer diffusion. Efficiency gains of ~10-15% can be achieved by using modifiers with integrated mesh ventilation panels.

System-Level Solutions: Infrastructure for Long-Form Video

Building a reliable "creator infrastructure" means looking at your gear as a synchronized system. Lighting, mounting, and rigging must work together to facilitate safety and efficiency. As noted in The 2026 Creator Infrastructure Report: Engineering Standards, Workflow Compliance, and the Ecosystem Shift, the shift toward modularity is driving the need for better thermal standards.

Choosing the Right Modifier

Field reports consistently show that lights with external, passive cooling fins perform significantly better in enclosed modifiers than smooth-bodied designs. The fins create channels for residual airflow even when the main fan is under load. When selecting modifiers, look for:

Ventilation Flaps: Many modern softboxes include Velcro-sealed mesh windows specifically for heat escape.
Bowens Mount Clearance: Ensure there is a physical air gap between the light's face and the modifier's inner speed ring.

Biomechanical Analysis: The "Wrist Torque" Component

While heat is a thermal risk, the weight of these modifiers presents a mechanical risk to your rigging. Using the formula Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$), we can see how a large softbox impacts your stands.

A 2.5kg modifier extended 0.4m from the light stand's center of gravity generates approximately 9.8 N·m of torque. This represents a significant load on your tilt head. For long-form video, ensuring your light stand is sandbagged and your mounting plates are secured is just as important as managing the heat.

Workflow ROI: The Value of Efficiency

Investing in a high-quality, quick-release ecosystem for your lighting and camera gear isn't just about convenience; it's a financial decision.

Time Savings: Traditional screw-mount systems can take ~40 seconds per swap. A professional quick-release system (like the Falcam F38 or F22 standards) reduces this to ~3 seconds.
Annual Impact: For a creator performing 60 swaps per shoot across 80 shoots a year, this saves approximately 49 hours annually. At a professional rate of $120/hr, this represents over $5,900 in reclaimed value.

This efficiency allows you to spend more time monitoring your "heat traps" and less time fumbling with mounting hardware.

Safety Standards and Regulatory Compliance

When dealing with high-output LEDs, safety isn't just a recommendation—it's regulated.

Photobiological Safety: Ensure your lights comply with IEC 62471:2006 for eye safety, especially when using high-intensity COB lights without diffusion.
Battery Safety: If powering your lights via V-mount batteries, adhere to IEC 62133-2:2017 for lithium cell safety. Heat from the light should never be allowed to conduct back into the battery mounting plate, as this can lead to thermal runaway.

Pre-Shoot Thermal & Safety Checklist

Before you hit "record" on your next long-form project, run through this methodical checklist to ensure your system is optimized for the duration.

Audible Check: Power on the light and listen for the fan. Is it spinning freely without obstruction?
Tactile Check: Perform a "Tug Test" on your modifier and mounting plates. Ensure all quick-release pins are visually locked (look for the safety indicators).
Visual Check: Ensure no cables are touching the rear exhaust of the light. Use cable clamps to provide strain relief and prevent unwanted torque on the power input.
Ventilation Check: If using a softbox, open the side ventilation flaps if the environment allows for it.
Thermal Baseline: Run the light at your target power for 10 minutes before the talent arrives. Check the housing temperature using the "Hand Test."

By treating your lighting as a critical piece of infrastructure rather than a simple accessory, you protect your hardware, your color integrity, and your professional reputation. Smart problem-solving in the setup phase is the most effective way to prevent catastrophic failures during a high-stakes production.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or safety advice. High-output lighting equipment generates significant heat and carries risks of fire or electrical shock if misused. Always consult your equipment’s manual and follow local safety regulations. If you are operating in extreme environments or high-heat climates, seek guidance from a qualified lighting technician.
