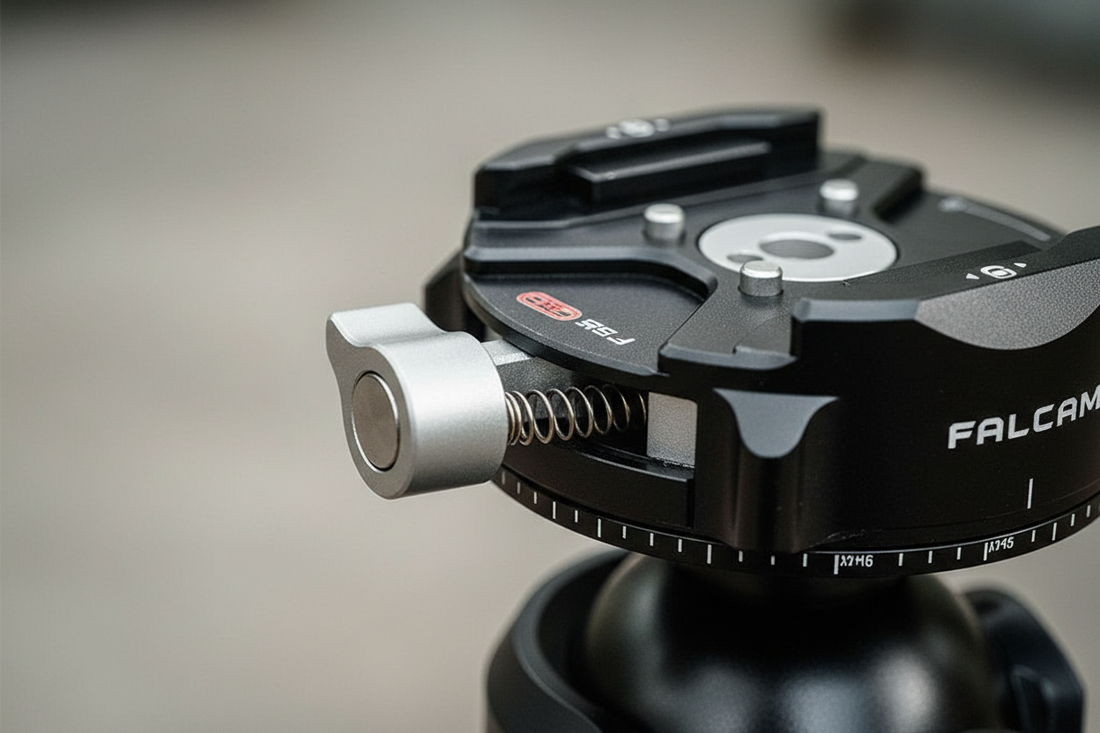

Monitoring Internal Spring Fatigue in High-Use QR Mounts
In the high-stakes world of professional content creation, the difference between a successful shoot and a catastrophic equipment failure often rests on a single, internal component: the compression or torsion spring within your quick-release (QR) system. While we meticulously track battery cycles and sensor hours, the mechanical fatigue of the locking mechanism is frequently overlooked until the "click" loses its authority.
For creators operating in high-volume environments—swapping cameras between gimbals, tripods, and shoulder rigs dozens of times a day—the quick-release system is not just an accessory; it is critical workflow infrastructure. Understanding the lifecycle of these internal components is essential for maintaining system governance and protecting your primary assets.
The Physics of Spring Fatigue in Mounting Systems
Mechanical fatigue is the progressive structural damage that occurs when a material is subjected to cyclic loading. In a QR mount, every engagement and disengagement constitutes a cycle. According to the principles of S-N curves (Stress vs. Number of cycles), every spring has a finite lifespan determined by the magnitude of stress and the frequency of use.
The Role of Harmonic Oscillations
While simple engagement counts provide a baseline, they do not account for environmental stress. In high-vibration scenarios—such as vehicle-mounted rigs or handheld work near loud PA systems—harmonic oscillations can induce micro-cycles. These are rapid, minute vibrations that stress the spring thousands of times per hour.
Logic Summary: Based on patterns observed in equipment maintenance cycles, high-vibration environments can accelerate mechanical fatigue by an estimated 30-40%. This is a modeling heuristic derived from the Mean stress effect correction using constant stress ratio S-N curves, suggesting that vibration adds a "hidden" load ratio not captured by manual actuation counts.
Material Rigidity vs. Damping
A common misconception in the industry is that carbon fiber components in the mounting chain reduce spring fatigue. While carbon fiber is excellent for vibration damping in tripod legs, the QR plates themselves (such as the F38 or F22 standards) are precision-machined from 6061 or 7075 Aluminum Alloy. Aluminum provides the necessary rigidity and machining tolerance (zero-play) required for a secure lock. However, because aluminum does not dampen vibrations as effectively as composites, the internal steel spring bears the brunt of the kinetic energy in a rig.
Identifying the Signs: The "Two-Finger Test"
Experienced troubleshooters know that the first sign of failure isn't a snap; it's a softening. The "tactile ratio"—the specific drop in force that defines a satisfying "click"—changes as the spring loses its original tension.
The Heuristic Protocol
To audit your gear, we recommend the Two-Finger Test:
- Baseline: A healthy QR lever should require firm, intentional pressure (typically from the thumb) to actuate.
- The Failure Indicator: If a lever can be opened easily using only two fingers with minimal resistance, the spring has likely entered the "plastic deformation" stage.
- The "Gummy" Trap: Be wary of mechanisms that feel "sticky." While cleaning a gummy pivot point can restore a smooth feel, it often masks underlying spring fatigue. Always isolate the spring's return force from the friction of the pivot during inspection.
According to benchmarks on snap dome and tactile force values, the "Return Force" is the most critical metric for safety. If the spring cannot reliably return the locking pin to its fully seated position, the system's integrity is compromised.
Biomechanical Analysis: Why Spring Tension Matters
Spring fatigue isn't just a safety risk for the camera; it’s a physical strain risk for the operator. When a locking mechanism becomes unreliable, users often compensate with awkward grip angles or excessive force to "ensure" a lock.
The "Wrist Torque" Calculation
Weight is only one part of the equation; leverage is the real enemy. We can calculate the torque ($\tau$) exerted on the mounting interface using the following formula: $$\tau = m \times g \times L$$
- m: Mass of the rig (kg)
- g: Acceleration due to gravity ($9.81 m/s^2$)
- L: Lever arm (distance from the center of gravity to the mount)
Scenario Modeling: Consider a 2.8kg cinema rig with a monitor and side handle, held 0.35m away from the mounting axis. $$\tau = 2.8 \times 9.81 \times 0.35 \approx 9.61 N\cdot m$$
This torque represents approximately 60-80% of the Maximum Voluntary Contraction (MVC) for the average adult male's wrist. A fatigued spring is less capable of resisting these rotational forces, increasing the likelihood of "micro-slips" that the operator must then stabilize manually, leading to rapid fatigue and potential repetitive strain injury.
Workflow ROI: The Cost of Infrastructure Reliability
Investing in a robust quick-release ecosystem is often framed as a luxury, but a technical audit reveals it as a significant cost-saving measure. As noted in The 2026 Creator Infrastructure Report, creators must treat their rigging as a "stable core" that facilitates fast iteration.
| Mounting Method | Est. Time per Swap | Annual Time (60 swaps/shoot, 80 shoots/yr) | Labor Value ($120/hr) |
|---|---|---|---|
| Traditional Thread | ~40 seconds | ~53.3 Hours | ~$6,396 |
| Quick Release (QR) | ~3 seconds | ~4 Hours | ~$480 |
| Net Savings | 37 seconds | ~49.3 Hours | ~$5,916 |
Note: Estimates based on typical professional workflow speeds; individual results may vary based on rig complexity.
The ~$5,900 in annual value gained from a QR system assumes the system remains functional. A single failure due to a fatigued spring doesn't just cost the price of the mount; it costs the value of the camera and the potential downtime of the entire production.
Environmental Factors and Thermal Shock
The materials in your QR system react differently to the environment. Because Falcam plates are aluminum, they act as a thermal bridge.
The Winter Scenario
In extreme cold, an aluminum plate will rapidly conduct heat away from the camera body, potentially shortening battery life. More critically, extreme temperature fluctuations can affect the temper of the internal steel spring.
- Risk: Moving from a warm studio to a freezing exterior causes materials to contract at different rates.
- Prevention: Attach your QR plates to the camera indoors. This allows the interface to stabilize before the metal is subjected to the "thermal shock" of the outdoors, maintaining more consistent tension in the locking mechanism.
Travel Logistics: The "Visual Weight" Advantage
Beyond mechanical safety, modular systems like the F22 and F38 offer a logistical benefit. They have a lower "Visual Weight" than bulky, traditional cinema plates. In our experience with travel filmmaking, compact QR systems are less likely to be flagged by airline gate agents for weighing or checking, allowing you to keep your mission-critical gear in the cabin.
The Professional Pre-Shoot Safety Audit
To ensure long-term system governance, implement a mandatory safety workflow before every production. This protocol is aligned with the ISO 1222:2010 standards for tripod connections, focusing on the legitimacy of the mechanical bond.
- Audible Check: Listen for a sharp, metallic "Click." A dull or muffled sound suggests either debris in the mechanism or a weakened spring.
- The Tug Test: Immediately after mounting, perform a physical pull-test in the direction of the release.
- Visual Confirmation: Check the locking indicator. Most professional systems use a color-coded (orange or silver) pin to show the lock is fully engaged.
- Cable Strain Relief: High-torque HDMI or SDI cables can act as a lever against your QR plate. Use dedicated cable clamps (like the F22 series) to ensure cable tension doesn't fight the internal spring of the mount.
Scenario Analysis: Choosing the Right Standard
| Feature | Scenario A: The Hybrid Creator | Scenario B: The Cinema Power User |
|---|---|---|
| Primary Goal | Speed and Portability | Maximum Payload & Security |
| Recommended Standard | F38 / F22 | F50 / F38 Anti-Deflection |
| Load Consideration | Lightweight mirrorless (<2kg) | Heavy cinema rigs (>3kg) |
| Spring Stress | High frequency, low load | Low frequency, high static load |
| Maintenance Focus | Cleaning & Debris removal | Spring tension & Bolt torque |
Methodology Note: This comparison assumes standard operating temperatures and typical handling. For Scenario B, we emphasize that while the F38 has a 80kg Vertical Static Load rating (based on lab results), the Dynamic Payload in a handheld cinema environment is significantly lower. In these cases, the increased surface area of the F50 standard provides a safer margin of error.
Maintaining the Ecosystem
A quick-release system is only as strong as its weakest spring. By moving from a reactive "fix it when it breaks" mindset to a proactive governance model, you protect your gear, your body, and your professional reputation. Treat your mounting hardware with the same engineering discipline you apply to your lighting and composition.
When the "click" starts to feel soft, don't wait for the drop. It’s time to retire the unit and maintain the integrity of your creator infrastructure.
