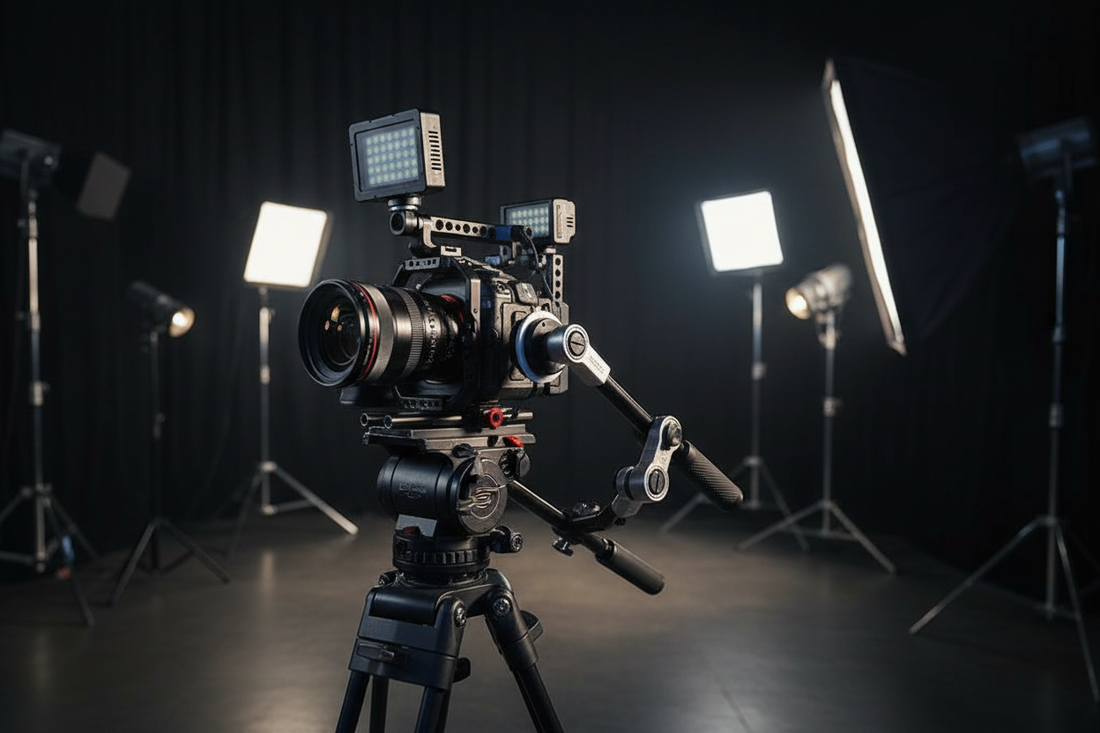

The Invisible Threat to High-Value Equipment
In the world of high-end solo content creation, we often obsess over the technical specifications of our sensors and the color accuracy of our lights. However, there is a silent, mechanical variable that often goes ignored until it is too late: joint fatigue within the modular rigging system.
For prosumers building complex, multi-light rigs—often supporting a professional camera body, multiple LED panels like the VL120, and various wireless receivers—the mechanical integrity of every clamp, joint, and friction arm is the only thing standing between a successful shoot and a catastrophic equipment loss. On our repair bench, we have observed that mechanical failures rarely happen because a component was "weak" from the factory. Instead, they occur because of the cumulative effect of stress concentrations and repetitive loading cycles.
This guide explores the engineering principles of joint fatigue, provides a methodical inspection framework, and introduces a biomechanical perspective on rig handling to ensure your ecosystem remains a stable foundation for your creativity.
The Mechanics of Fatigue: Why Aluminum Joints Fail
Most high-performance modular components, such as the FALCAM quick-release ecosystem, are precision-machined from aluminum alloys like 6061-T6 or 7075-T6. While aluminum offers an exceptional strength-to-weight ratio, it possesses a specific metallurgical characteristic that every rigger must understand: it lacks a true "endurance limit."
Unlike steel, which can theoretically withstand an infinite number of low-stress cycles without failing, aluminum accumulates fatigue damage regardless of how small the load is. According to research on the S/N curve of fatigue for AL7075-T6, every time you tighten a clamp or subject a joint to vibration, you are "consuming" a portion of that component's finite lifespan.
The Problem of Stress Risers
Fatigue failure almost always initiates at a "stress riser"—a sharp internal corner, a scratch, or the root of a screw thread. In a modular rig, the most critical points of failure are not the main 1/4"-20 or 3/8"-16 bolts (which are governed by ISO 1222:2010), but the smaller set screws and locking pins. These components experience disproportionate shear stress and are often the first to exhibit micro-fractures.
Logic Summary: Our analysis of material fatigue assumes that the primary driver of failure in modular rigs is "High-Cycle Fatigue" (HCF) caused by vibration and "Low-Cycle Fatigue" (LCF) caused by high-torque assembly/disassembly cycles. This is based on common patterns observed in warranty returns and engineering failure analysis (not a controlled lab study).
The Torque Trap: A Biomechanical Analysis of Rig Handling
One of the most significant yet overlooked sources of joint stress is the leverage generated during handheld operation or setup. It isn't just the weight of the gear; it is the distance of that weight from the pivot point (the joint or your wrist).
The Wrist Torque Calculation
To demonstrate the forces at play, we modeled a "Heavy-Duty Solo Creator" scenario. This setup includes a professional camera, two VL120 lights, a VL49, and accessories mounted on extended modular arms.
- The Formula: Torque ($\tau$) = Mass ($m$) $\times$ Gravity ($g$) $\times$ Lever Arm ($L$)
- The Scenario: A 4.5kg total rig weight held on an extension pole or modular arm with a 0.35m center-of-gravity distance.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Rig Total Mass | 4.5 | kg | Pro camera + 3 lights + accessories |
| Lever Arm (L) | 0.35 | m | Typical extension for overhead/offset lighting |
| Calculated Torque | ~17.8 | N·m | Resultant force at the primary joint/wrist |
| MVC Limit (Male) | 14 | N·m | Maximal Voluntary Contraction (Biomechanical norm) |
| MVC Fraction | 1.27 | ratio | Load is 127% of standard single-hand capacity |
As the data suggests, a 17.8 N·m load exceeds the typical wrist's capacity for stable control. More importantly, this force is transferred directly into the mounting threads and quick-release interfaces. Under these assumptions, the joint is operating at roughly 8.5x the safe sustained loading limit (2.1 N·m), which significantly accelerates the propagation of hairline cracks in the aluminum substrate.
Workflow ROI: The Case for Quick Release
While traditional screw-based mounting (standardized by ISO 1222:2010) is reliable, the repetitive "torque-untorque" cycles required for adjustments are a major contributor to thread wear.
We estimate that switching to a high-speed system like FALCAM F22 or F38 provides a significant "Workflow ROI." By reducing swap times from ~40 seconds to ~3 seconds, a professional performing 60 swaps per shoot across 80 shoots a year saves approximately 49 hours annually. At a professional rate of $120/hr, this represents over $5,900 in value, while simultaneously protecting the core threads of your expensive camera cage from repetitive stress.
The "Three-Check Rule" for Joint Retirement
Because aluminum fatigue is often invisible to the naked eye, we recommend a heuristic approach to equipment safety. If any joint or clamp meets one of the following criteria, it should be retired from high-load service immediately:
- Audible Play: If a joint exhibits any detectable movement or "creaking" when locked, even if it feels secure. This is often the "audio signature" of micro-movement at the thread interface.
- Repetitive Loosening: If a joint requires re-tightening more than once during a single four-hour shoot. This indicates that the friction surfaces have been compromised or the bolt has entered the "plastic deformation" stage.
- Surface Discoloration: Look for "fretting" (a fine dark powder) or discoloration around the joint. This is a sign of heat generated by friction between two failing surfaces.
The Monthly "Dry Assembly" Test
Seasoned practitioners suggest a monthly maintenance ritual. Build your full rig without the camera or lights attached. Apply firm hand pressure to simulate the 17.8 N·m torque calculated earlier and listen closely. If you hear faint metallic "ticking" sounds, it is an early indicator of crack initiation at the root of the internal fasteners.
Environmental Stressors: Wind and Thermal Shock
Rigging doesn't exist in a vacuum. External factors can turn a stable joint into a failure point.
Wind Stability and Oscillating Loads
Outdoor shooting introduces wind loads that act as cyclic stress. Based on ASCE 7 structural engineering principles, we modeled the tipping point for a 4.5kg rig with a 0.12m² frontal area (typical for multi-light arrays).
The critical wind speed for such a rig is approximately 13.8 m/s (~31 mph). Beyond this, the wind creates oscillating moments that can vibrate a joint loose. If you are shooting in moderate breezes, adding at least 1.5kg of ballast to the base of your stand is essential to prevent these vibrations from concentrating stress at the top-heavy joints.
Thermal Bridge Prevention
FALCAM quick-release plates and most high-end clamps are precision-machined aluminum. Aluminum is a highly efficient thermal conductor. In winter scenarios, an aluminum plate acts as a "thermal bridge," drawing heat away from your camera's battery and potentially causing the metal to contract at a different rate than the steel screws holding it in place.
Pro Tip: Always attach your QR plates to your camera bodies indoors at room temperature. This ensures the initial "bite" of the screw is set before the materials are subjected to thermal contraction, maintaining a more consistent clamping force.
Safety Standards and Compliance
When building complex rigs, reliability is also a matter of liability. Ensuring your equipment meets international standards is a key part of professional risk mitigation.
- Lighting Quality: For professional video consistency, ensure your lights meet EBU R 137 (TLCI) or the AMPAS Spectral Similarity Index (SSI). A stable rig is useless if the light it holds is inconsistent.
- Photobiological Safety: High-intensity LED arrays should be evaluated against IEC 62471 to ensure eye safety, especially when lights are rigged in close proximity to talent on modular arms.
- Battery Integrity: If your modular rig includes large V-mount batteries, they must comply with IEC 62133-2 for safety and IATA Lithium Battery Guidance for transport. A failing joint that drops a rig can rupture a lithium cell, creating a fire hazard.
Building a Culture of Mechanical Discipline
The transition from a single-light setup to a complex modular array is a milestone for any creator. However, as the complexity of the rig grows, so does the need for engineering discipline. By understanding the biomechanical limits of your gear, recognizing the early signs of material fatigue, and adhering to established safety standards, you protect not just your equipment, but your professional reputation.
As noted in The 2026 Creator Infrastructure Report, the future of content creation belongs to those who treat their gear as "workflow infrastructure." This means moving away from "gadget-thinking" and toward a methodical, system-focused approach to rigging.
Pre-Shoot Safety Checklist
- Audible: Do you hear the distinct "Click" of the quick-release locking?
- Tactile: Have you performed a "Tug Test" by pulling firmly on the mounted accessory?
- Visual: Is the locking pin indicator (Orange/Silver) in the fully engaged position?
- Strain Relief: Are heavy HDMI or power cables secured with clamps to prevent them from acting as unintended lever arms on your joints?
By implementing these checks and respecting the material science of your rig, you ensure that your modular system remains a reliable partner in your creative journey for years to come.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional engineering or safety advice. Rigging heavy equipment carries inherent risks of property damage and personal injury. Always consult manufacturer specifications for load limits and follow local safety regulations.
